Sony KLV-32L400A - Connectors (KLV-32 L400 A Only)

KLV-32L400A/37L400A
KLV-32L400A/37L400A
49
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
101 1-835-169-11 LEAD WIRE WITH CONNECTOR (LVDS)
102 1-910-045-03 CONN ASSEMBLY, 20P MM CRIMP 210
103 1-910-045-05 WIRE ASSEMBLY, FASTON TERMINAL
104 1-910-044-94 CONN ASSEMBLY, 4P SPEAKER FASTON
! 105 1-832-159-13 CORD, POWER (WITH CONNECTOR)
106 1-910-045-61 CONN ASSEMBLY, 12P MM CRIMP 450
107 1-910-044-77 CONN ASSEMBLY, 11P MM CRIMP 890
108 1-910-045-60 CONN ASSEMBLY, 14P MM CRIMP 790

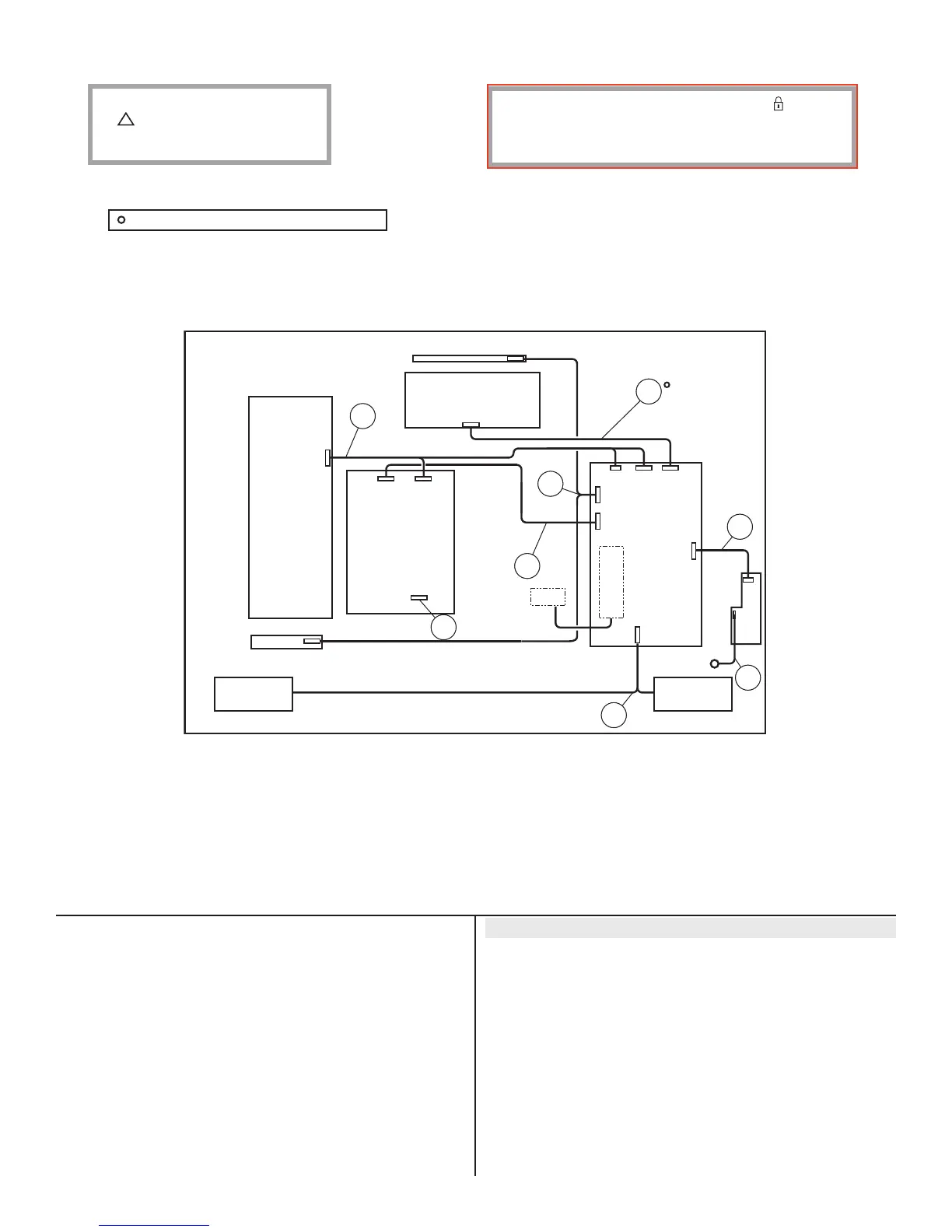

4-3. CONNECTORS (KLV-32L400A ONLY)
2-580-629-01 SCREW, +BVST 3X8
101
108
107
104
106
105
103
102
SP
UM
SP
INV
G1M
T-CON
HL5
BG2A
3008
4001
1400
4003 4002
4500
CN2000
CN6201CN6202
CN101
CN301
HL1
(KLV-32L400A)
