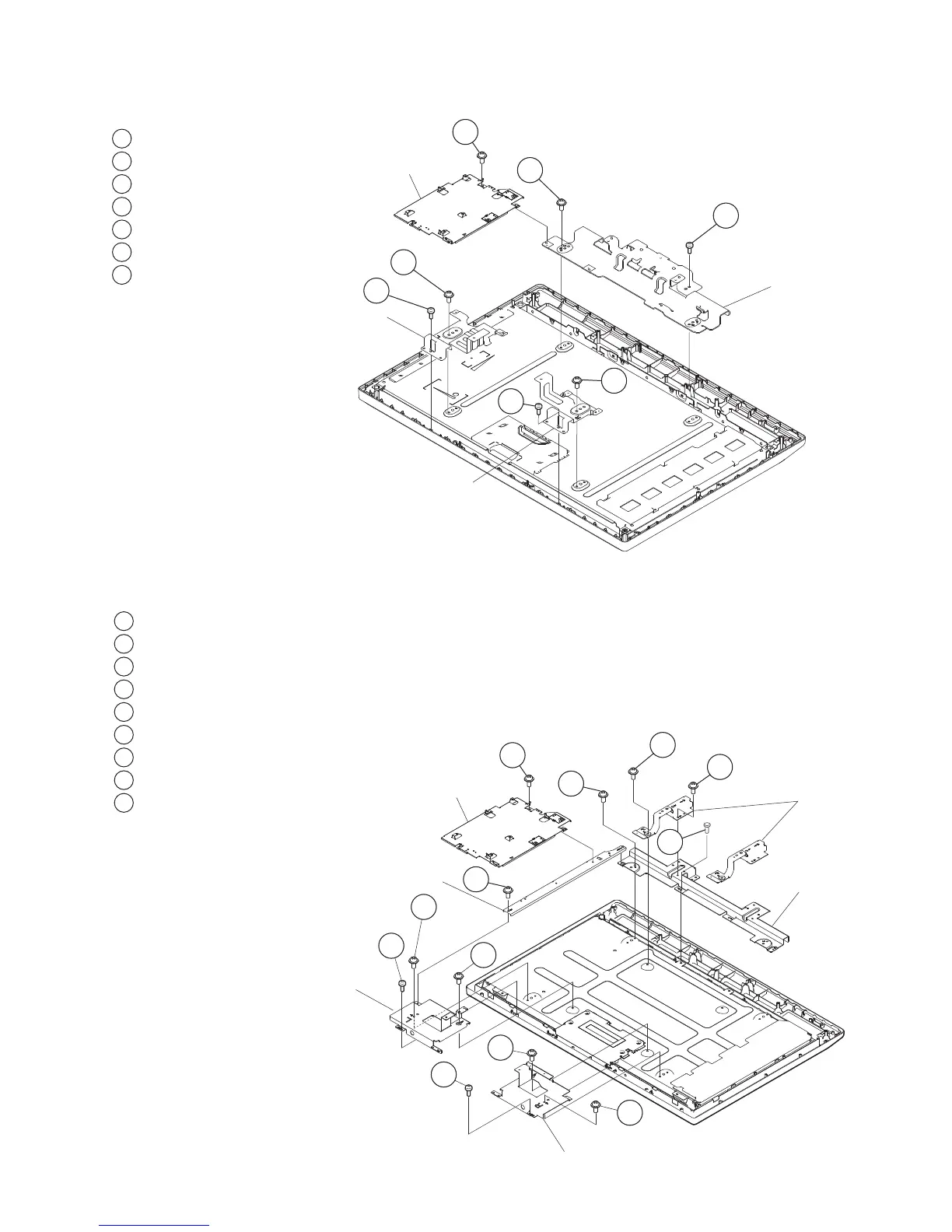

1-9. BRACKETS REMOVAL (KLV-32L400A ONLY)
1
Remove 4 screws
2
Remove 4 screws
3
Remove 2 screws
4
Remove 2 screws
5
Remove 1 screw
6
Remove 1 screw
7
Remove 2 screws
6
7
2
3
5
4
Top Bracket (L)
Top Bracket (R)
Bottom Bracket
1
Bottom Shield
1-10. BRACKET REMOVAL (KLV-37L400A ONLY)
1
Remove 1 screw from top of both Top Brackets
2
Remove 1 screw from top of both Top Brackets
3
Remove 1 screw from top of both Top Brackets
4
Remove 2 screws
5
Remove 4 screws
6
Remove 2 screws from Bottom Bracket
7
Remove 1 screw from both Frame Brackets
8
Remove 2 screws from both Frame Brackets
9
Remove 2 screws from Bottom Bracket
3
2
3
1
1
2
6
4
5
7
9
8
Top Bracket (L)
Top Bracket (R)
Bottom Bracket
Support Stay
Bottom Shield
Frame Bracket
