Sony KLV-32L400A - Section 4: Exploded Views; Rear Cover & Stand Assembly

KLV-32L400A/37L400A
KLV-32L400A/37L400A
47
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
SECTION 4: EXPLODED VIEWS
1 3-210-439-11 COVER, REAR (32)
(KLV-32L400A ONLY)
1 3-218-557-01 COVER, REAR (37)
(KLV-37L400A ONLY)
2 3-196-465-11 COVER, ECS
(KLV-32L400A ONLY)
2 3-196-465-01 COVER, ECS
(KLV-37L400A ONLY)
3 4-105-740-01 LABEL, REAR TERMINAL
* 4 4-110-261-01 LABEL, INFORMATION
(KLV-32L400A ONLY)
* 4 3-874-514-01 LABEL, INFORMATION
(KLV-37L400A ONLY)

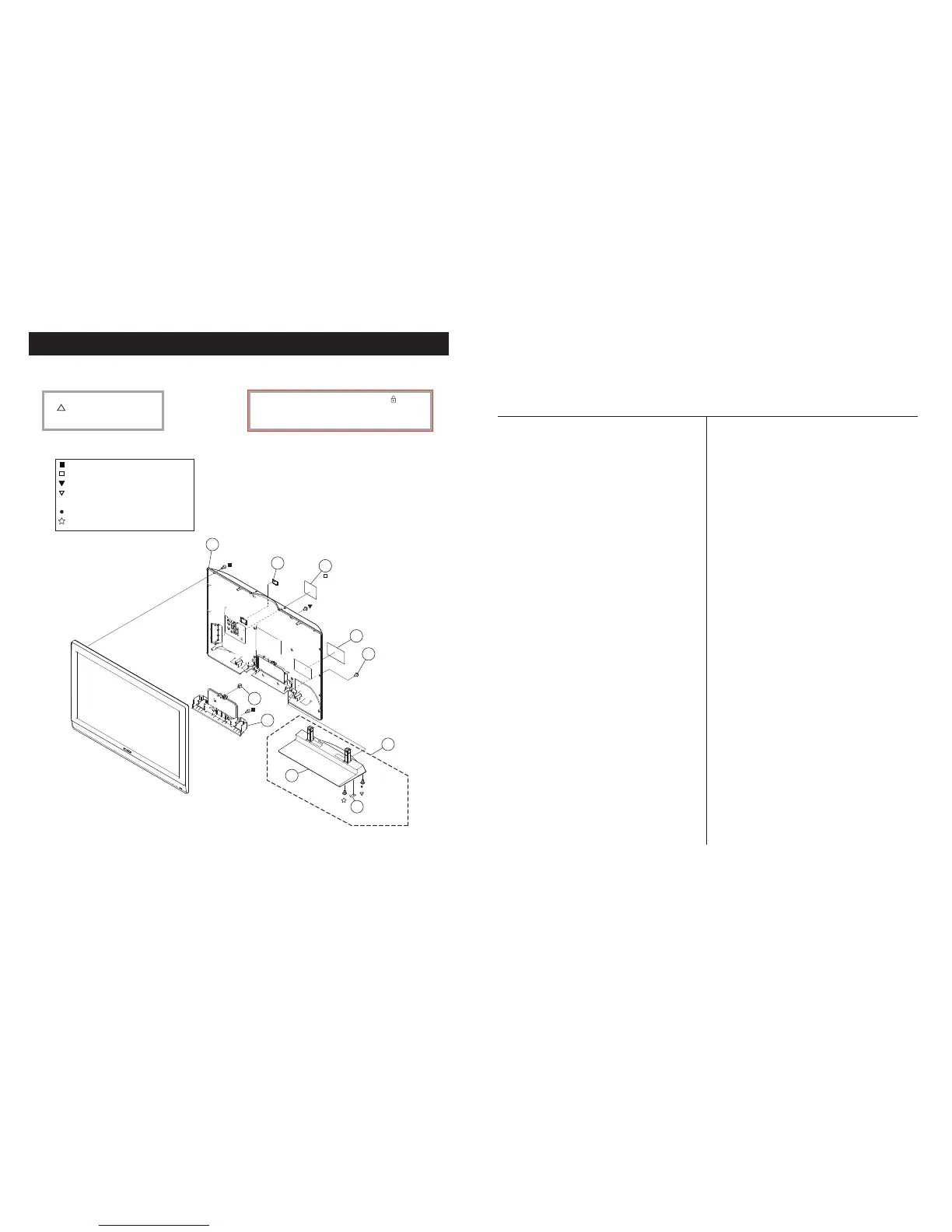

4-1. REAR COVER ASSEMBLY AND TABLE-TOP STAND ASSEMBLY
2-580-640-01 SCREW, +BVTP2 4X16
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
2-580-608-01 SCREW, +PSW M5X16
2-580-607-01 SCREW, +PSW M5X12
(KLV-37L400A ONLY)
2-580-606-01 SCREW, +PSW M5X8
2-580-644-01 SCREW, +KTP2 3X8
5 2-580-608-01 SCREW, +PSW M5X16
(SCREWS TO ATTACH TABLE-TOP STAND TO LCD TV)
For product protection and safety reasons, Sony strongly recommends that
you use the screws provided with the TV.
6 3-218-558-01 COVER, UNDER (37)
(KLV-37L400A ONLY)
7 4-022-115-00 HOLDER, AC CORD
8 A-1541-637-A TABLE-TOP STAND ASSEMBLY (M-2) [9-10]
(KLV-32L400A ONLY)
8 A-1560-459-A TABLE-TOP STAND ASSEMBLY (ML-2) [9-10]
(KLV-37L400A ONLY)
9 3-213-762-01 FOOT (15X30)
10 3-210-444-21 COVER, STAND
(KLV-32L400A ONLY)
10 3-106-490-22 COVER, STAND (ML)
(KLV-37L400A ONLY)
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
2
1
3
4
5
7
6
9
10
8
Screws to attach
Table-Top Stand Assembly
to TV
(3 PCS. KLV-32L400A)
(4 PCS. KLV-37L400A)
(KLV-32L400A)
(KLV-37L400A)
