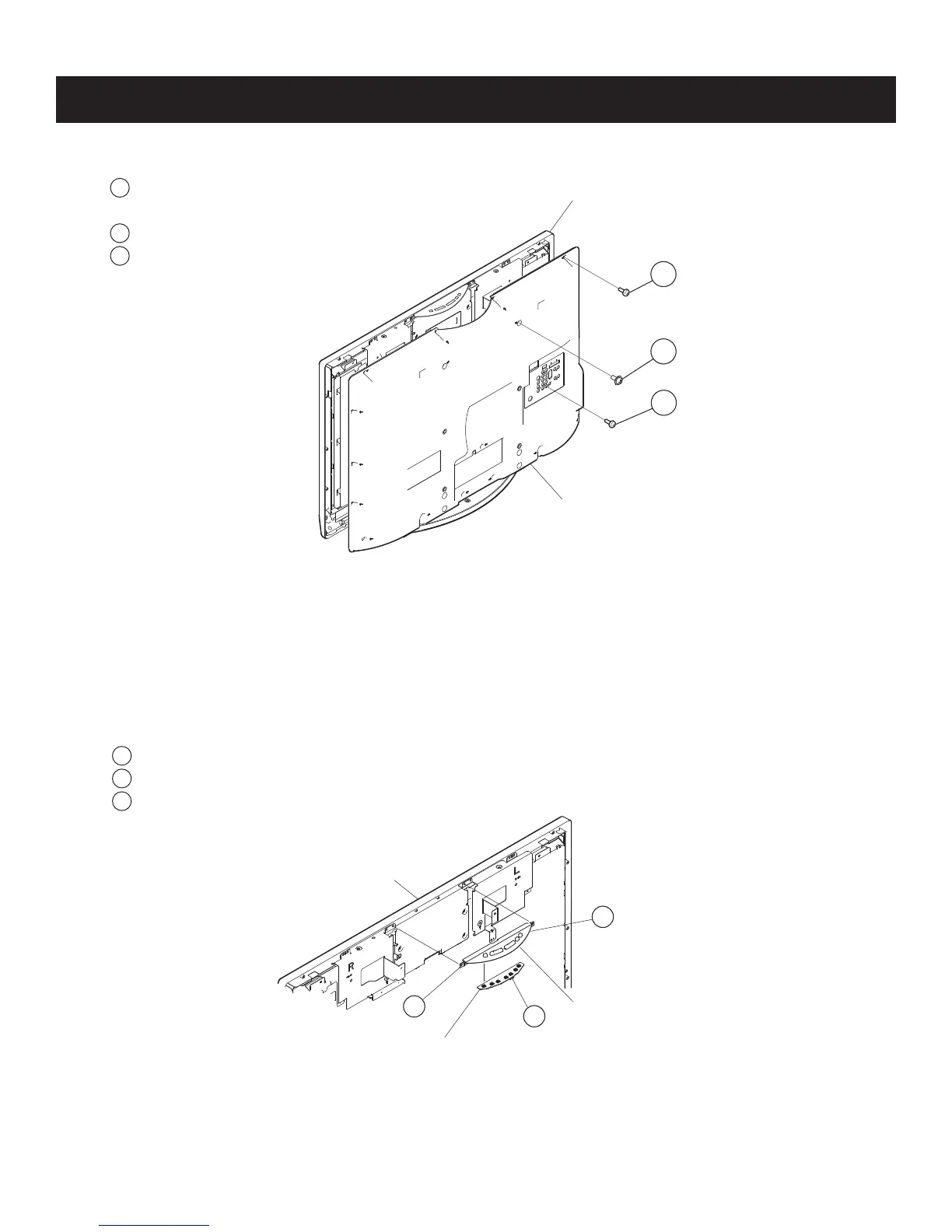

1-1. REAR COVER REMOVAL
SECTION 1: DISASSEMBLY
1
Remove 14 screws (KLV-32L400A ONLY)
Remove 16 screws (KLV-37L400A ONLY)
2
Remove 2 screws
3
Remove 2 screws from Terminals
1-2. HL1 BOARD REMOVAL
1
Slide out HL1 Block Assembly from bezel
2
Disconnect 1 connector
3
Release hooks and remove HL1 Board
3
1
2
Bezel
Rear Cover
1
2
3
Bezel
HL1 Block Assembly
HL1 Board
