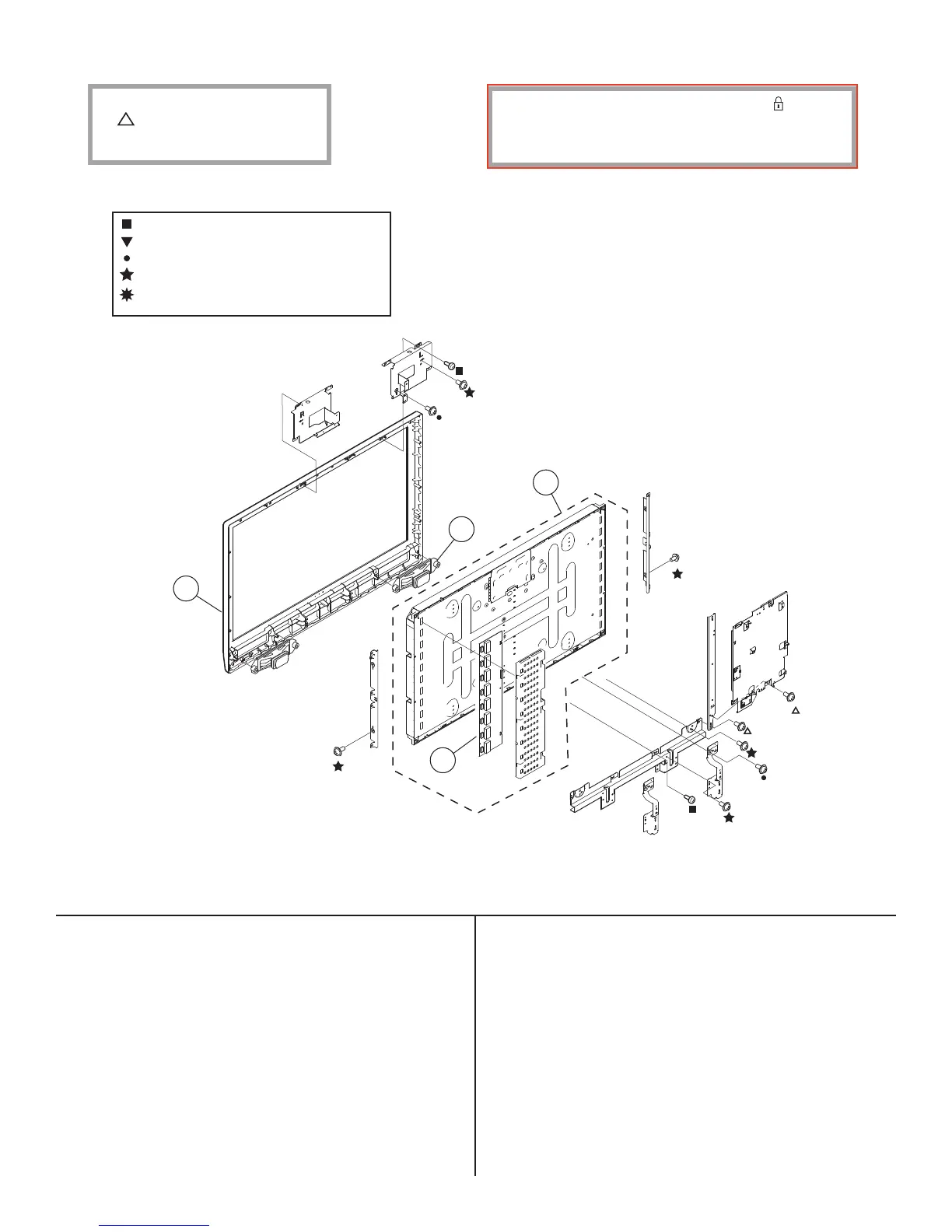

4-6. BEZEL ASSEMBLY AND LCD PANEL (KLV-37L400A ONLY)
201
202
203
204
201 A-1560-452-A BEZEL ASSEMBLY (37)
202 1-826-363-11 LOUDSPEAKER (4.2X15CM)
203 1-802-622-11 LCD PANEL (37INCH WXGA TFT) [204]
204 1-857-097-11 ETC-INVERTER MOUNT BOARD
2-580-640-01 SCREW, +BVTP2 4X16
2-580-608-01 SCREW, +PSW M5X16
2-580-606-01 SCREW, +PSW M5X8
2-580-600-01 SCREW, +PSW M4X8
2-580-654-01 SCREW, +PWTP2 4X16
