Sony KLV-32L400A - Chassis

KLV-32L400A/37L400A
KLV-32L400A/37L400A
48
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
51 A-1540-623-A HL1 BOARD, MOUNTED
52 3-106-473-22 HOLDER, SIDE JACK(M)
53 A-1268-473-A UM BOARD, MOUNTED
54 A-1556-837-A BG2A BOARD, MOUNTED
(KLV-32L400A ONLY)
54 A-1556-847-A BG2A BOARD, MOUNTED
(KLV-37L400A ONLY)
55 8-597-611-00 TUNER, FSS BTF-CA411Z
* 56 3-286-966-01 BRACKET, RF
57 3-682-691-00 NUT, WASHER HEXAGON
58 A-1513-114-A G1M BOARD, MOUNTED
(KLV-32L400A ONLY)
59 A-1358-825-A G5M BOARD, MOUNTED
(KLV-37L400A ONLY)
60 3-296-407-01 LIGHT GUIDE
61 A-1540-624-A HL5 BOARD, MOUNTED

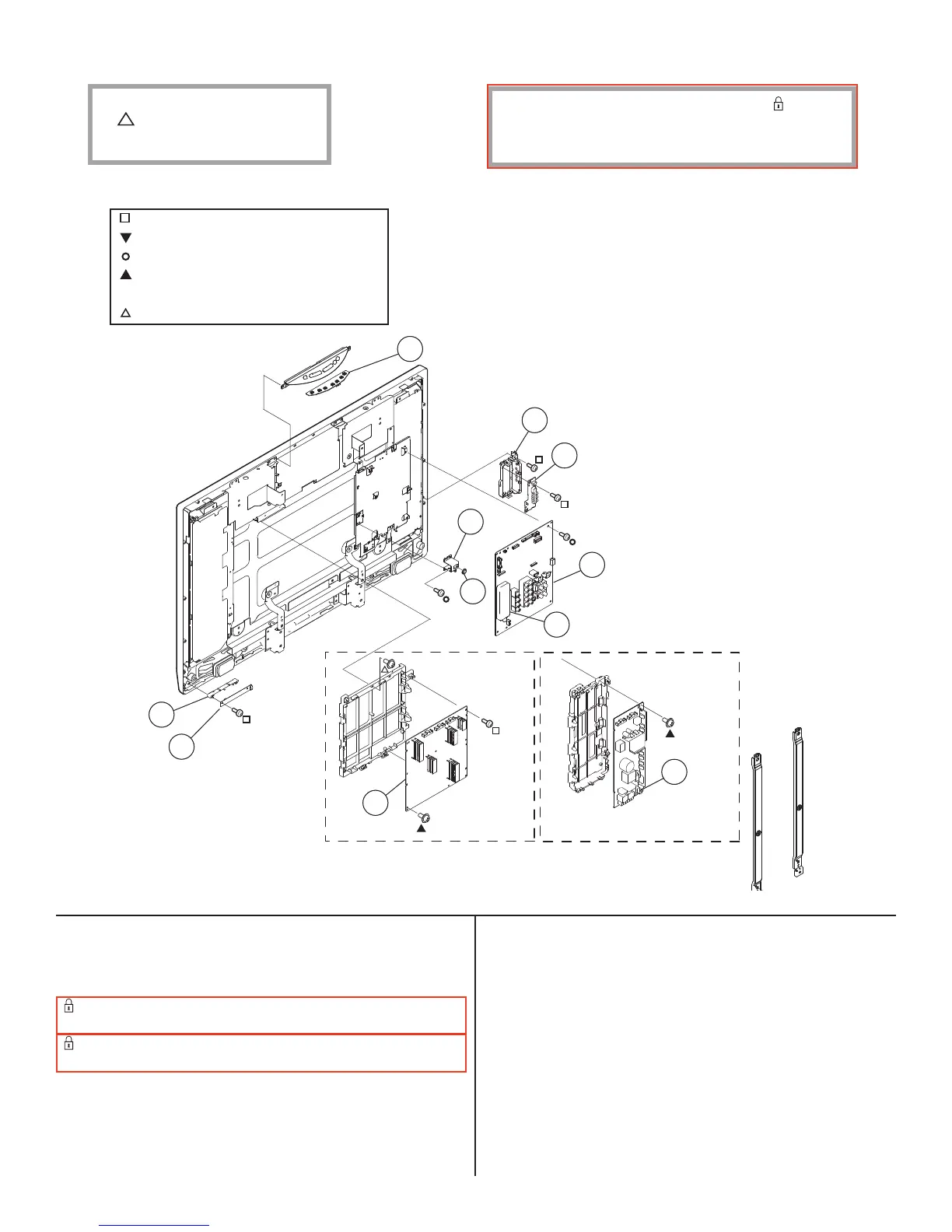

4-2. CHASSIS
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
2-580-608-01 SCREW, +PSW M5X16
2-580-629-01 SCREW, +BVST 3X8
2-674-965-31 SCREW, +PSW 3SG
(KLV-32L400A ONLY)
2-580-591-01 SCREW, +PSW M3X5
KLV-32L400A
58
59
KLV-37L400A
52
53
54
55
56
57
60
61
51
