Sony KLV-32L400A - VESA Arms, under Cover and Table-Top Stand Removal; (Klv-32 L400 A Only); Speaker, Light Guide and HL5 Board Removal

16
KLV-32L400A/37L400A
KLV-32L400A/37L400A

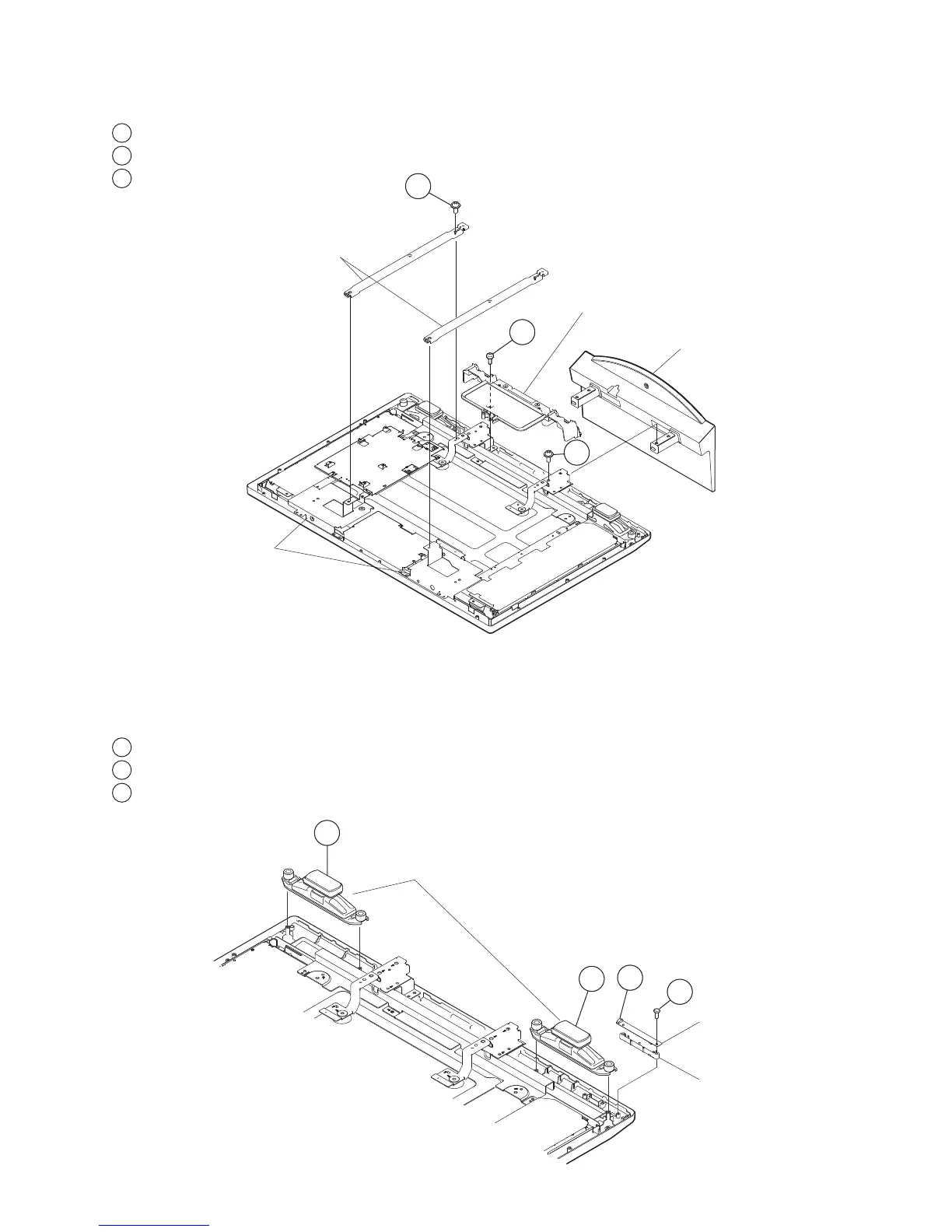

1-7. VESA ARMS, UNDER COVER AND TABLE-TOP STAND REMOVAL (KLV-37L400A ONLY)
1
Remove 2 screws from bottom of VESA Arms
2
Remove 2 screws
3
Remove 4 screws
3
1
1
2
Speakers
HL5 Board
Light Guide
1-8. SPEAKER, LIGHT GUIDE AND HL5 BOARD REMOVAL
1
Slide out Speakers from Bezel
2
Disconnect one connector
3
Remove 2 screws
3
1
2
Top Brackets
Table-Top Stand Assembly
Under Cover
VESA Arms
