Sony KLV-32L400A - LCD Panel Removal

18
KLV-32L400A/37L400A
KLV-32L400A/37L400A

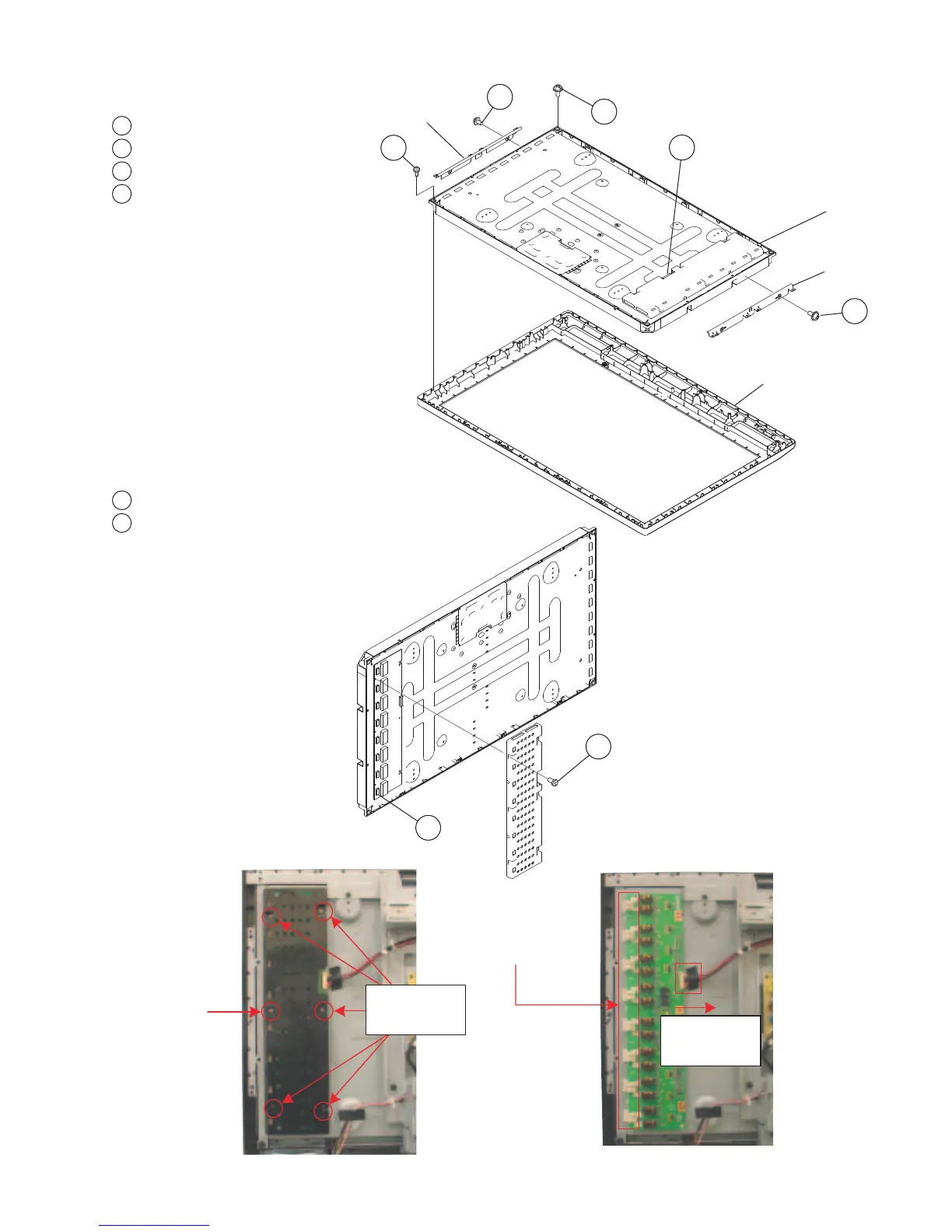

1-12. INVERTER BOARD REMOVAL
1
Remove 6 screws from cover
2
Disconnect 7 connectors from board (KVL-32L400A ONLY)
Disconnect 8 connectors from board (KVL-37L400A ONLY)
1
Remove 2 screws (KLV-32L400A ONLY)
2
Remove 1 screw (KLV-32L400A ONLY)
3
Disconnect 1 connector
4
Remove 2 screws from both sides of Stays
(KLV-37L400A ONLY)
1-11. LCD PANEL REMOVAL
1
2
SHIELD REMOVAL
CAUTION!
Disconnect the
Balancer Board Connectors
REMOVE SCREWS
SECURING
SHIELD
REMOVE
CONNECTOR AND
PULL BOARD TO
THE RIGHT
1
4
4
3
LCD Panel
Side Stay
Side Stay
Bezel
2
