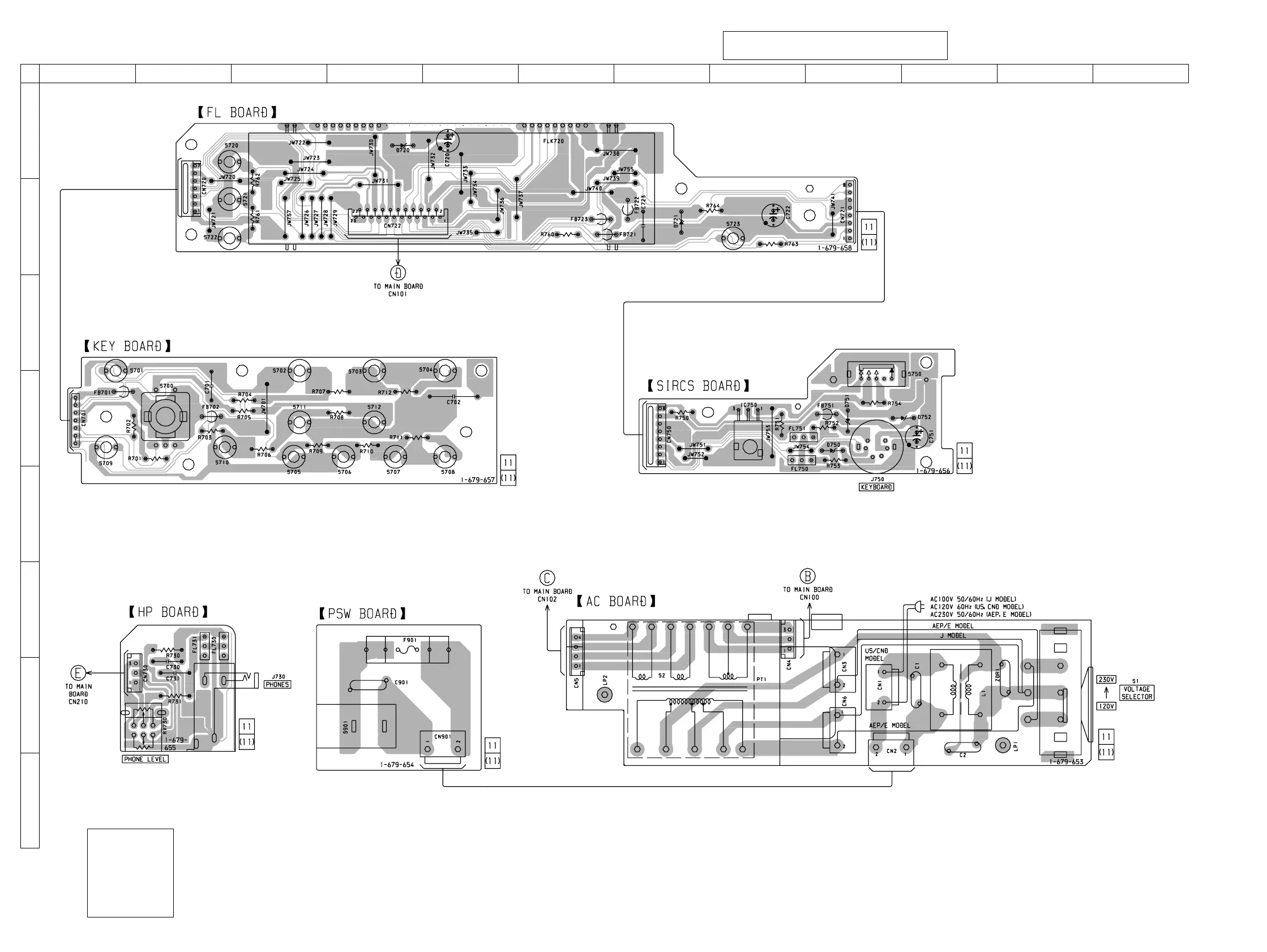

5-9. PRINTED WIRING BOARD – AC/FL/HP/KEY/PSW/SIRCS SECTION –
12
A
B
C
D
E
F
G
H
3456789101112
(Page 66)
(Page 66)
(Page 66)
(Page 66)
• Refer to page 59 for Note on Printed Wiring Boards.
• Refer to page 59 for Circuit Board Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• Semiconductor Location
Ref. No. Location
D720 A-4
D721 B-7
D751 D-9
D752 D-9
IC750 D-8
