Sony MDS-E10 - Printed Wiring Board - BD Section

MDS-E10
— 81 — — 82 —

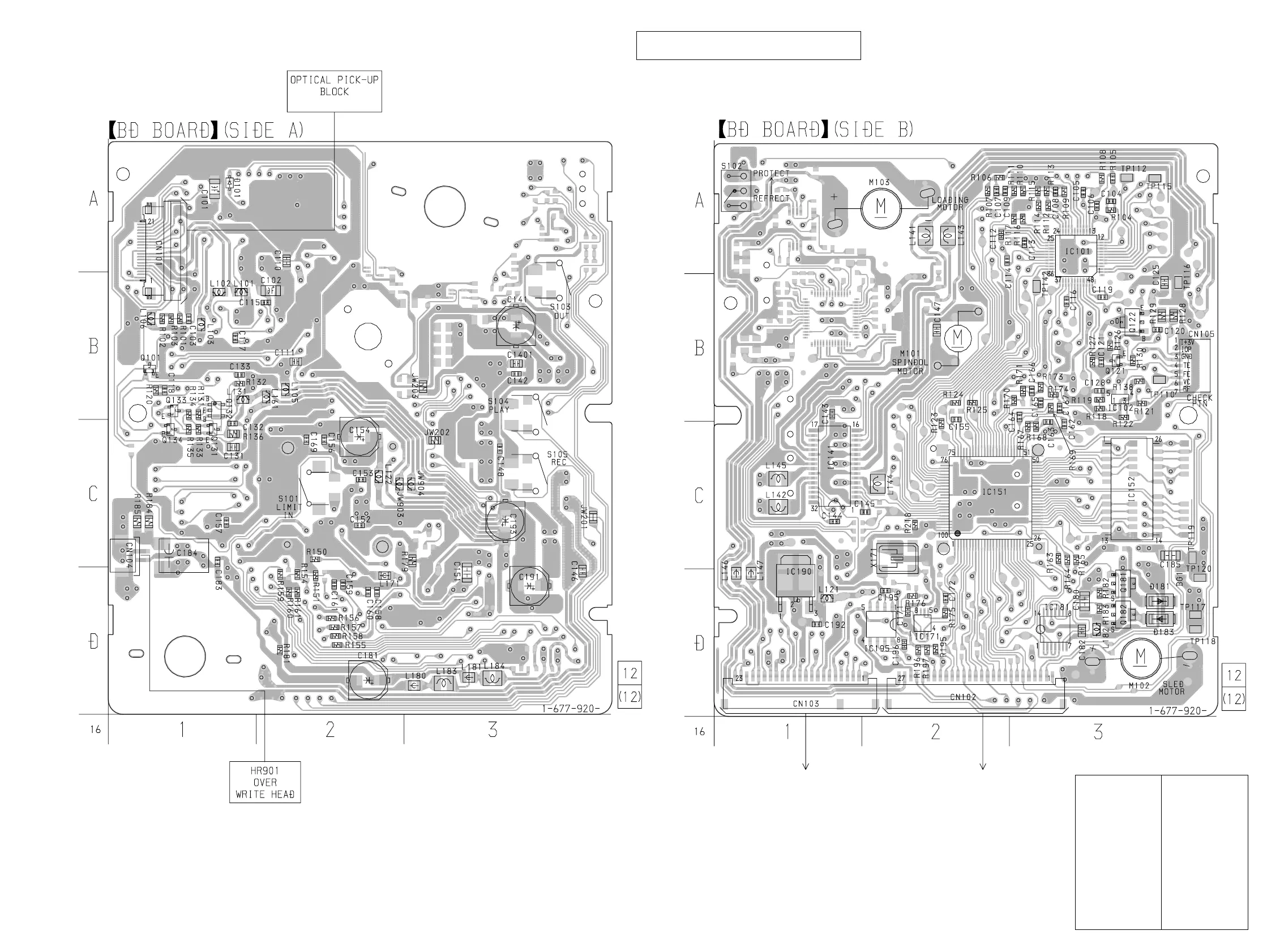

5-12. PRINTED WIRING BOARD – BD SECTION –
(KMS-260B/J1N)
TO MAIN BOARD
CN200
(Page 66)
TO MAIN BOARD
CN303
(Page 66)
HG
• Refer to page 59 for Note on Printed Wiring Boards.
• Refer to page 59 for Circuit Board Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• Semiconductor Location
Ref. No. Location Ref. No. Location
D101 A-1 (A)
D181 D-3 (B)
D183 D-3 (B)
IC101 A-3 (B)
IC102 B-3 (B)
IC141 C-1 (B)
IC151 C-2 (B)
IC152 C-3 (B)
IC171 D-2 (B)
IC181 D-3 (B)
IC190 D-1 (B)
IC195 D-2 (B)
Q101 B-1 (A)
Q121 B-3 (B)
Q122 B-3 (B)
Q131 C-1 (A)
Q132 B-1 (A)
Q133 B-1 (A)
Q134 C-1 (A)
Q181 D-3 (B)
Q182 D-3 (B)
