Sony MDS-E10 - Schematic Diagram - FL;HP;KEY;SIRCS Section

Sony MDS-E10
94 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
MDS-E10
— 77 — — 78 —

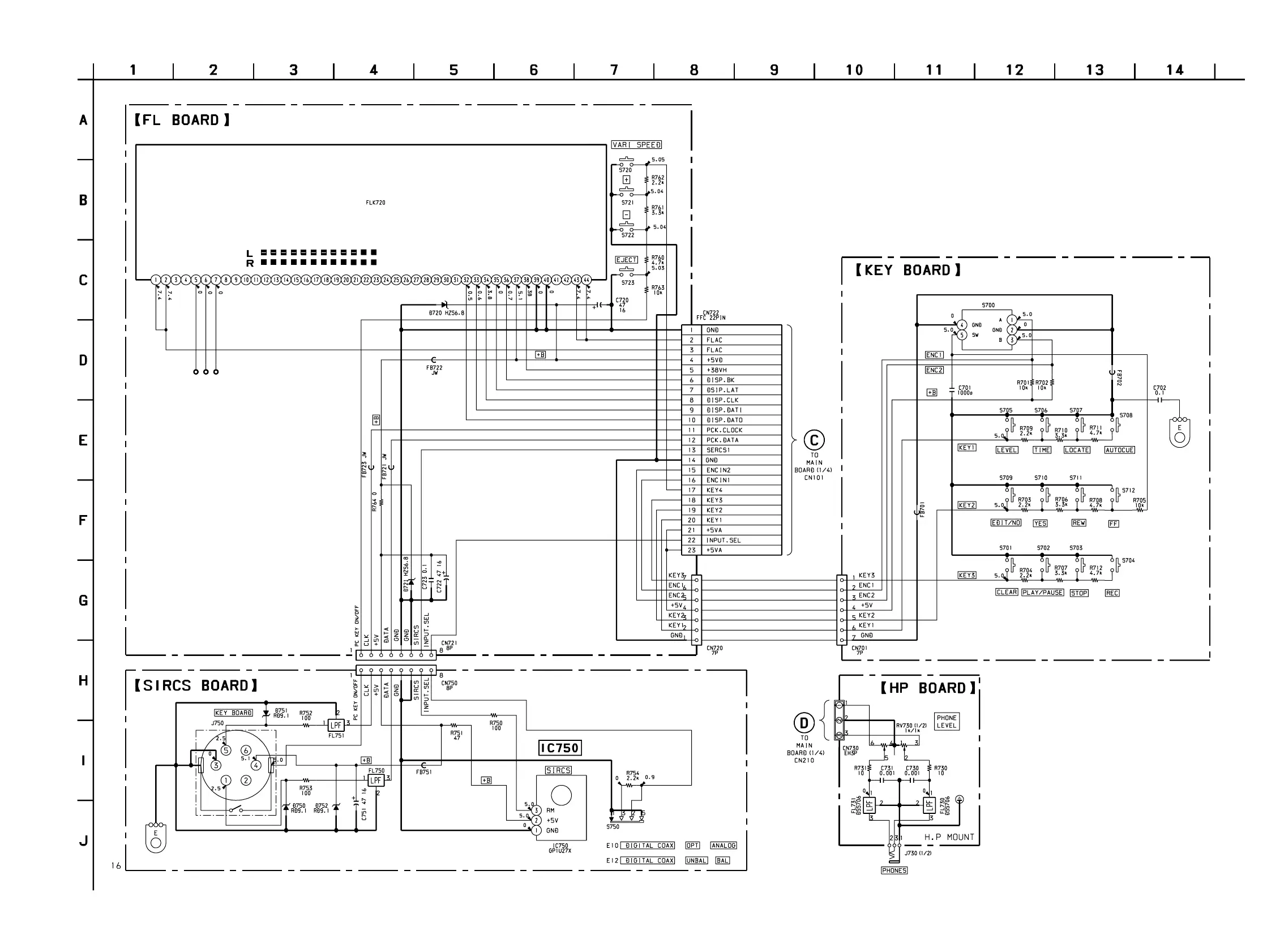

5-10. SCHEMATIC DIAGRAM – FL/HP/KEY/SIRCS SECTION –• Refer to page 59 for Note on Schematic Diagrams.
