Sony MDS-E10 - Mechanism Section-1 (MDM-7 SC)

— 97 —

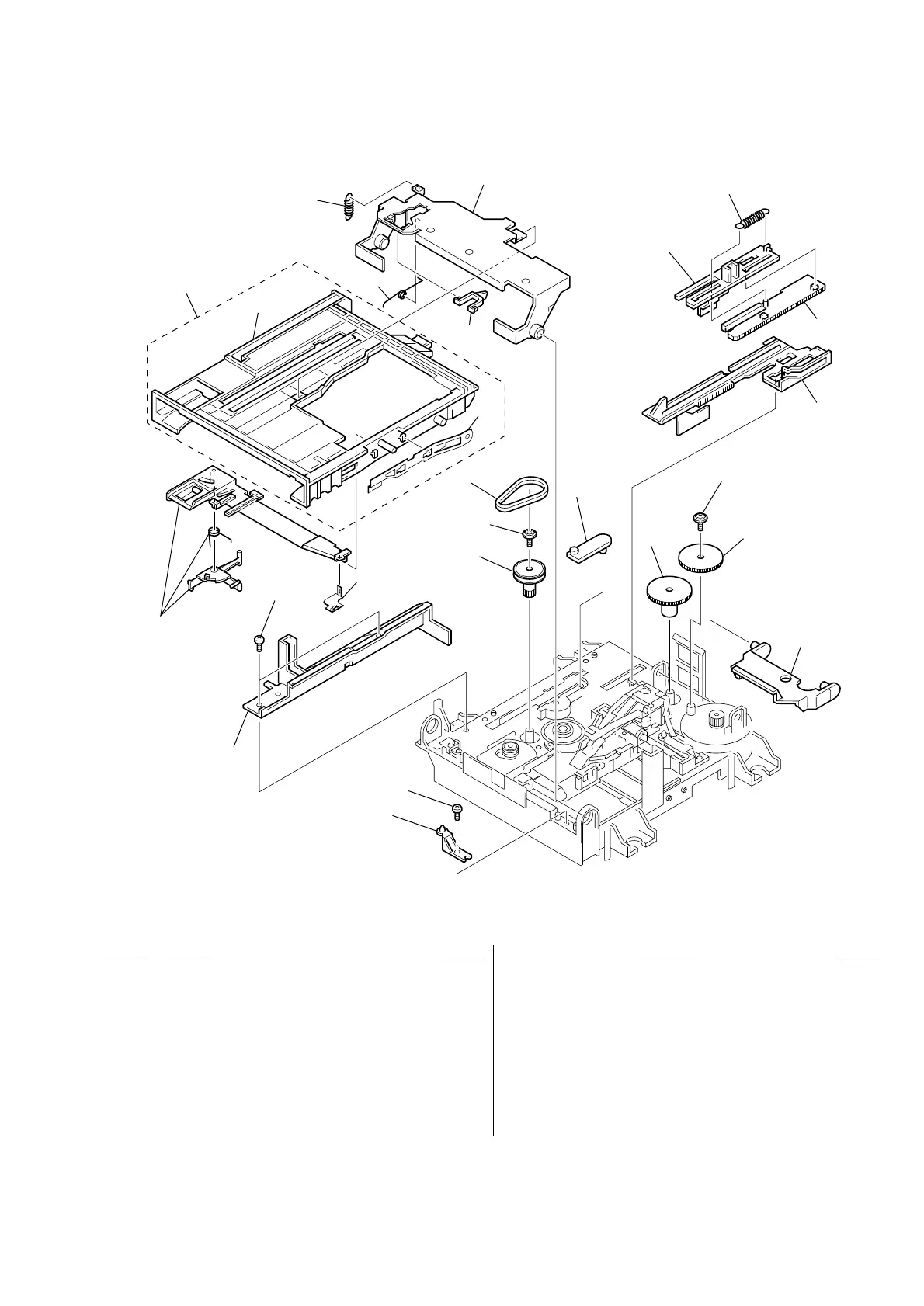

6-3. MECHANISM SECTION-1 (MDM-7SC)
204
205
206
202
220
201
207
205
219
202
211
212
210
209
214
213
215
216
218
203
217
208
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 201 4-996-267-01 BASE (BU-D)
202 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI
203 4-227-007-01 GEAR (SB)
204 4-227-025-01 BELT (LOADING)
205 3-372-761-01 SCREW (M1.7), TAPPING
206 4-227-002-01 GEAR, PULLEY
207 4-226-999-01 LEVER (HEAD)
208 X-4952-665-1 SPRING (SHT) ASSY, LEAF
209 4-228-923-01 LOCK (HOLDER)
210 4-229-533-02 SPRING (STOPPER), TORSION
211 4-227-012-01 SPRING (HOLDER), TENSION
212 4-227-019-02 PLATE (HOLDER), RETAINER
213 4-227-013-01 SPRING (EJ), TENSION
214 4-226-995-01 SLIDER (EJ)
215 4-226-996-01 LIMITTER (EJ)
216 4-226-997-04 SLIDER
217 4-226-998-01 LEVER (CHG)
218 4-227-006-01 GEAR (SA)
219 A-4672-973-D HOLDER ASSY
220 4-226-994-01 GUIDE (L)
