Sony MDS-E10 - Schematic Diagram - BD Section (2;2)

MDS-E10
— 85 — — 86 —

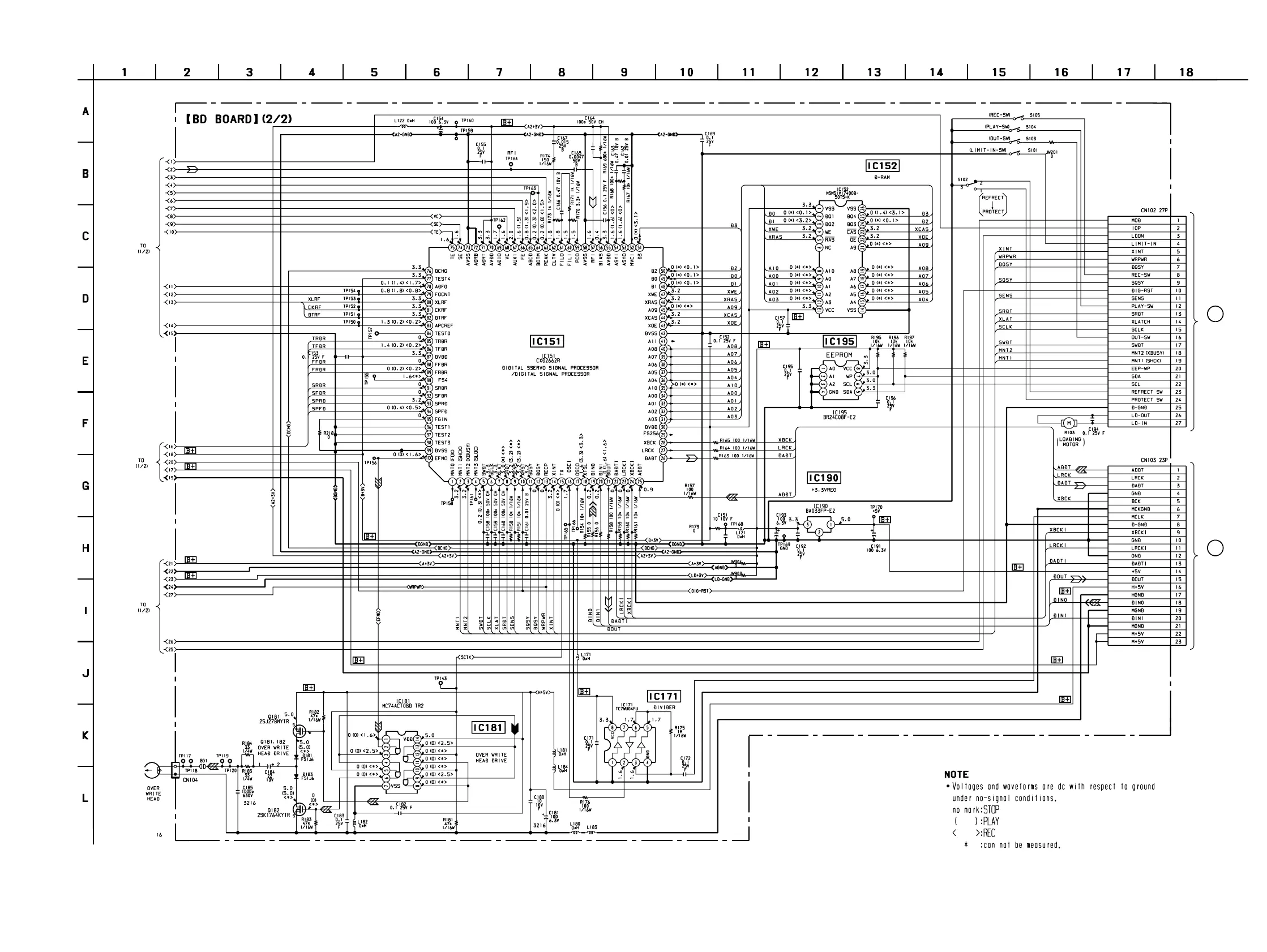

5-14. SCHEMATIC DIAGRAM – BD SECTION (2/2) –• Refer to page 59 for Note on Schematic Diagrams.
TO
MAIN BOARD
CN303
(Page 72)
H
TO
MAIN BOARD
CN200
(Page 67)
G
