— 7 —

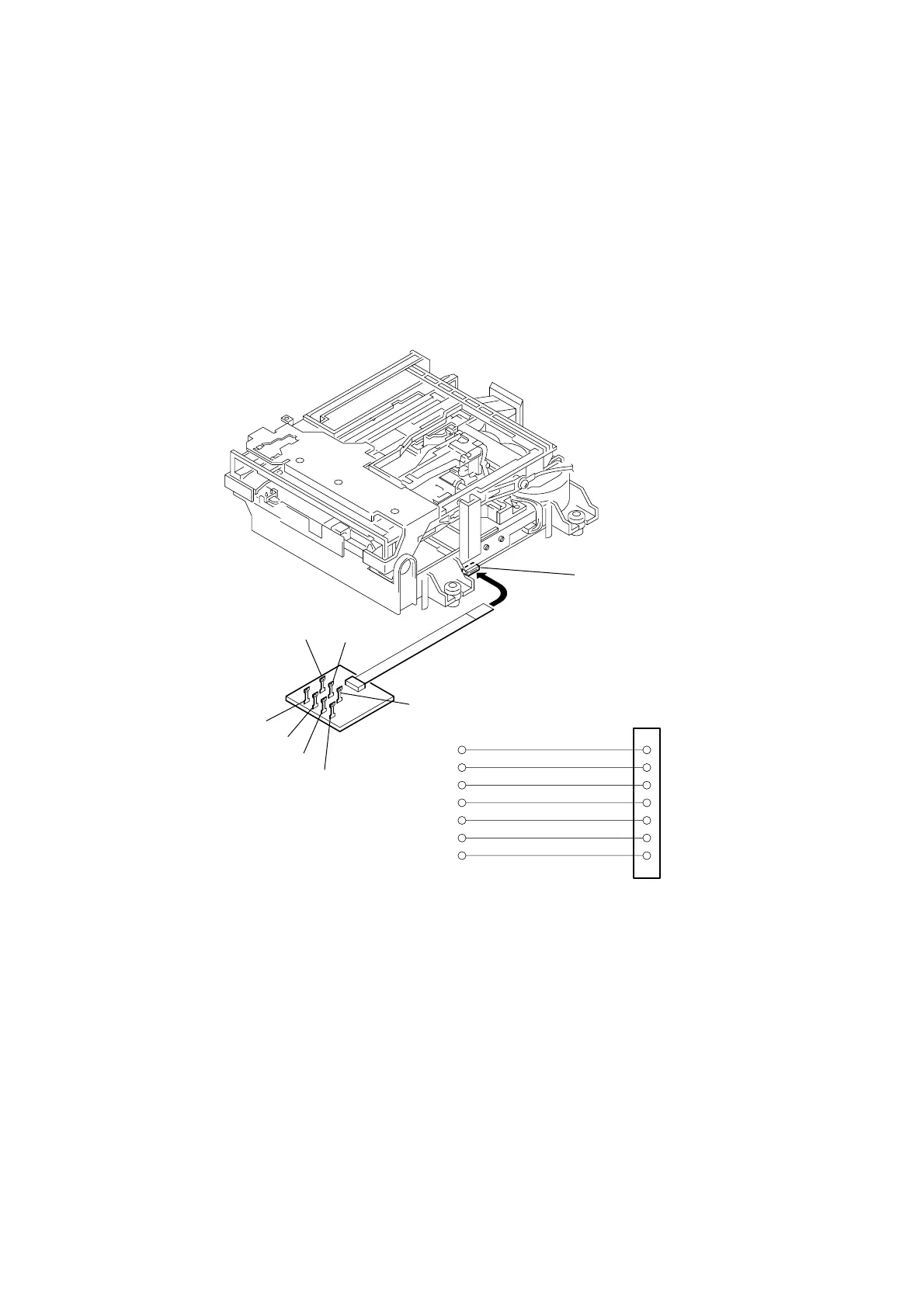

JIG FOR CHECKING BD BOARD WAVEFORM
The special jig (J-2501-196-A) is useful for checking the waveform of the BD board. The names of terminals and the checking items to be
performed are shown as follows.
GND : Ground
I+3V : For measuring IOP (Check the deterioration of the optical pick-up laser)
IOP : For measuring IOP (Check the deterioration of the optical pick-up laser)
TEO : TRK error signal (Traverse adjustment)
VC : Reference level for checking the signal
RF : RF signal (Check jitter)
FE : FOCUS error
CN105
RF
VC
TE
IOP
I+3V
GND
Mechanism deck
RF
VC
for
MDM-
7
IOP
TE
I+3V
GND
VC
RF
TE
IOP
I+3V
GND
1
7
FE
FE
FE
