— 7 —

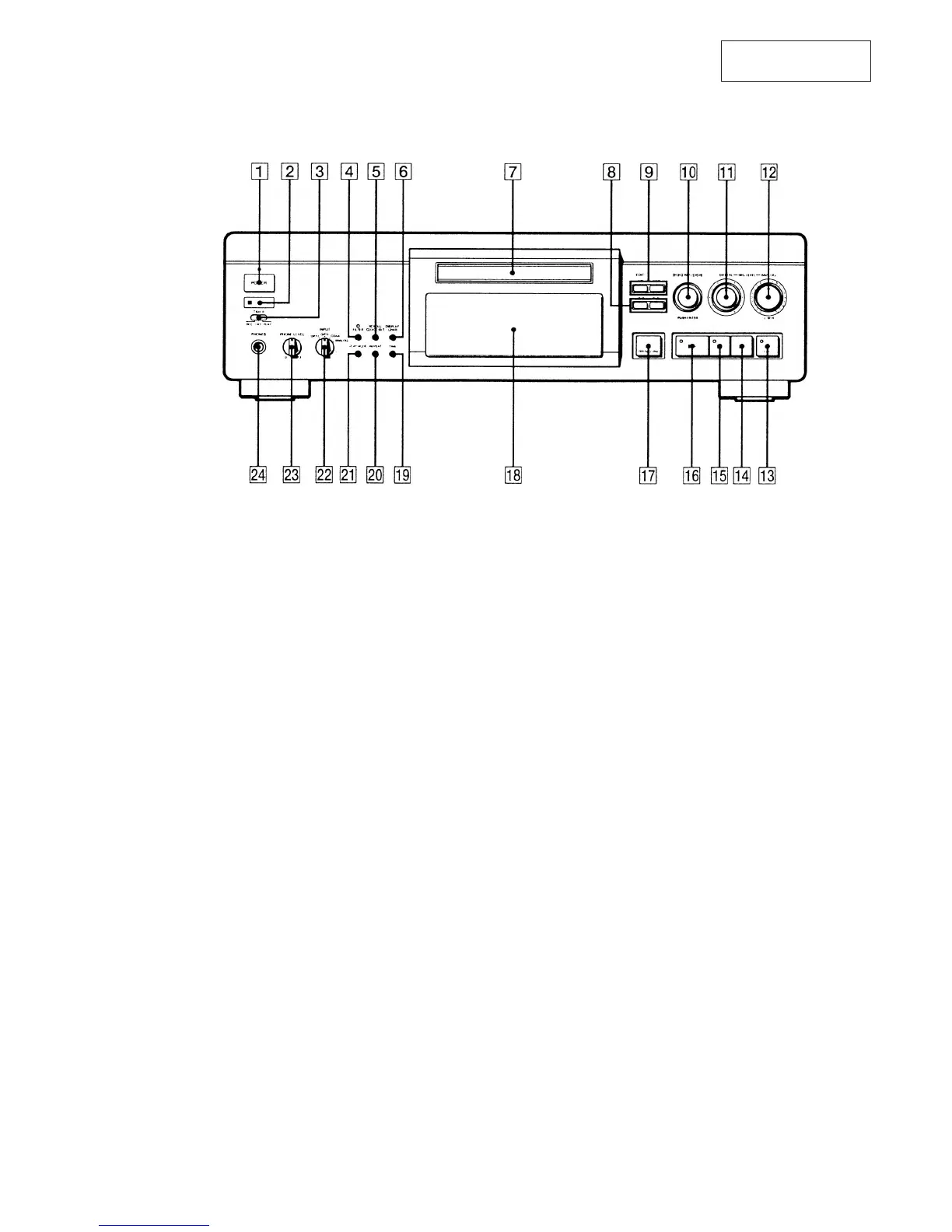

SECTION 2

GENERAL

1 POWER switch

2 Remote sensor

3 TIMER switch

4 FILTER button

5 SCROLL/CLOCK SET button

6 DISPLAY/CHAR button

7 Disc tray

8 0/) (fast backward/fast forward) buttons

9 EDIT/NO/YES buttons

!º AMS knob

!¡ DIGITAL REC LEVEL knob

!™ ANALOG REC LEVEL L/R knob

!£ r REC (recording) button

!¢ p (stop) button

!∞ P (pause) button

!§ ( (play) button

!¶ § OPEN/CLOSE button

!• Display window

!ª TIME button

@º REPEAT button

@¡ PLAY MODE button

@™ INPUT switch

@£ PHONE LEVEL knob

@¢ PHONES jack

This section is extracted

from instruction manual.
