Sony MDS-JA30ES Service Manual

— 9 —

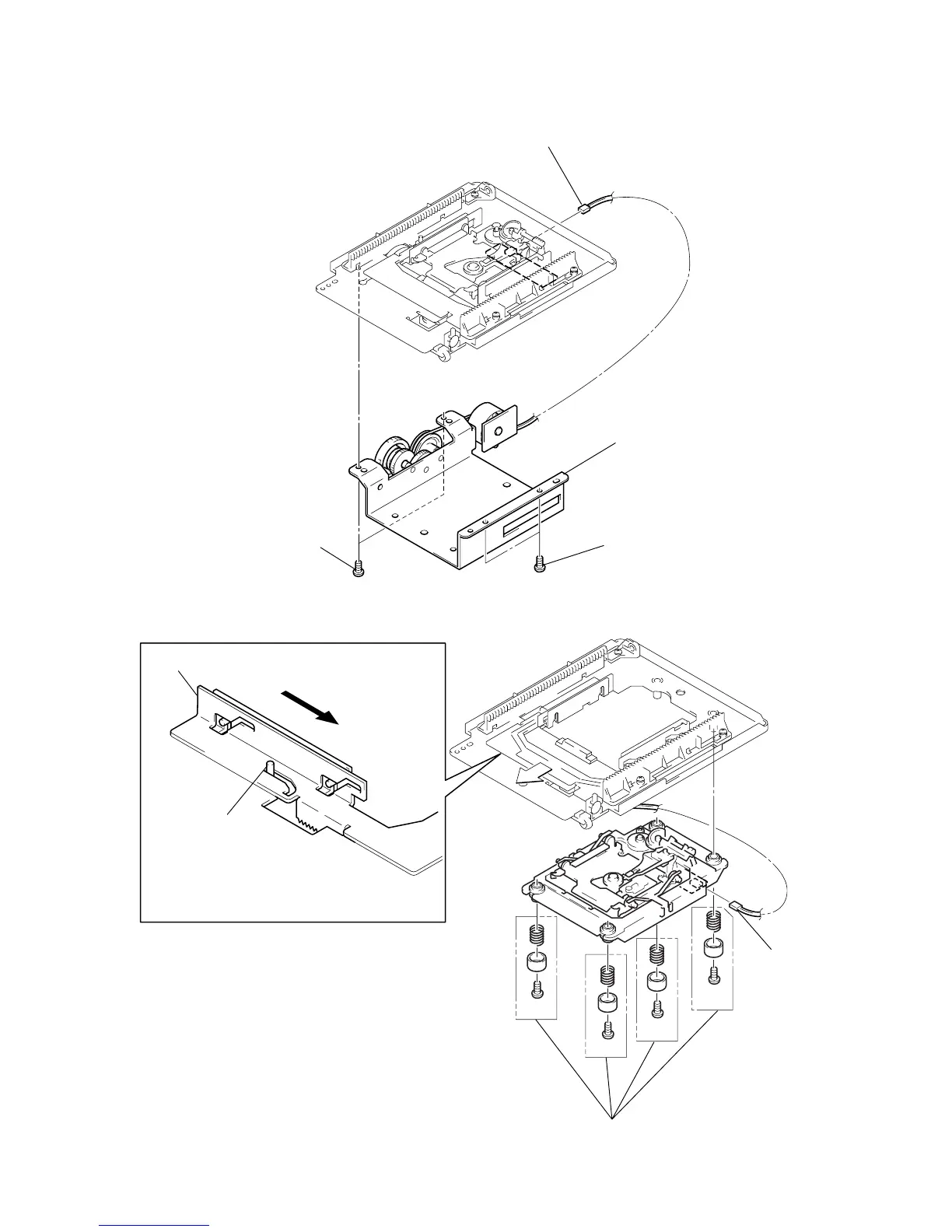

3-2. BRACKET (MOTOR) ASSY
1 Two screws
(BVTT 3x6)
2 Two screws
(BVTT 3x6)
4 Bracket (Motor) assembly
3 Connector (CN198 : HMOT board)
3-3. HOLDER ASSY
Shaft A
Slider assembly
1 When removing, move the slider assembly
in the arrow direction, and check that shaft
A is at the position shown in the figure.
3 Remove the four screws (BVTT 3x6), and
remove the four collars (dampers) and four
compression springs.
2 Connector
(CN198 :
HMOT board)
