— 79 —
401
402
403
413
403
412
406
405
414
404
407
405
408
409
410
411
M192
405
405
MBU-2B
#5
#5
#14
#10
not supplied
401 4-987-273-01 SPRING (UDL), LEAF
* 402 X-4947-847-1 HOLDER ASSY
403 4-989-938-01 WASHER, STOPPER
405 4-987-312-01 INSULATOR (MD)
406 4-987-306-01 LEVER (OWH)
407 4-987-307-01 SPRING (OWH), TORSION
* 408 4-989-233-01 SHAFT (OWH)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
409 4-987-272-01 SPRING (UDR), LEAF
* 410 1-663-896-11 HLIM BOARD
* 411 1-663-899-11 HMOT BOARD
412 4-987-276-01 GEAR (HEAD-B)
413 4-987-277-01 GEAR (HEAD-C)
* 414 4-987-278-03 SHAFT (HEAD)
M192 X-4947-821-1 MOTOR ASSY, HEAD

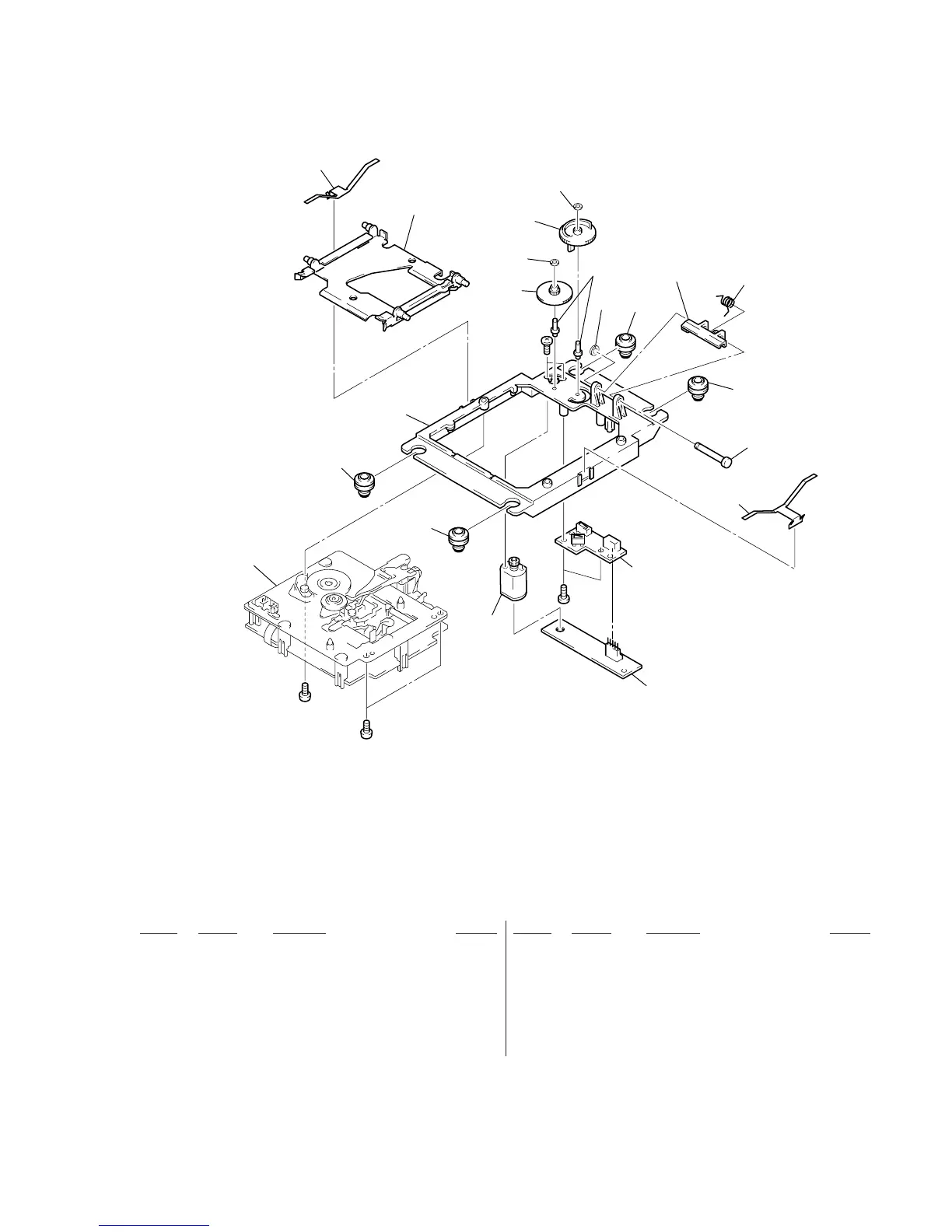

7-7. MECHANISM SECTION 3 (MDM-4B)
