Sony MDS-JA30ES Service Manual

— 76 —
151 4-992-534-01 PANEL, FRONT (GOLD)(AEP,UK,German)
151 4-992-534-11 PANEL, FRONT (BLACK)(AEP,UK,German)
151 4-992-534-21 PANEL, FRONT (BLACK)(US,Canadian)
152 4-929-074-01 SCREW (3X8)
153 4-987-524-01 KNOB (REC L) (GOLD)
153 4-987-524-11 KNOB (REC L)(BLACK)
154 4-987-525-01 KNOB (REC R) (GOLD)
154 4-987-525-11 KNOB (REC R) (BLACK)
155 4-987-526-01 KNOB (AMS) (GOLD)
155 4-987-526-11 KNOB (AMS) (BLACK)
156 4-987-526-21 KNOB (AMS) (GOLD)
156 4-987-526-31 KNOB (AMS) (BLACK)
157 4-992-635-01 BASE, ORNAMENT (GOLD)
157 4-992-635-11 BASE, ORNANENT (BLACK)
158 4-992-537-01 PANEL (ESCUTCHEON) (GOLD)
158 4-992-537-11 PANEL (ESCUTCHEON) (BLACK)
159 4-992-541-01 PLATE, INDICATION
160 4-992-539-01 KNOB (VOL) (GOLD)
160 4-992-539-11 KNOB (VOL) (BLACK)
161 3-354-981-01 SPRING (SUS), RING
162 4-942-568-01 EMBLEM (NO.5), SONY (BLACK)
162 4-942-568-31 EMBLEM (NO.5), SONY (GOLD)
163 4-987-519-01 INDICATOR (D2)
164 4-987-496-01 BUTTON (POWER) (GOLD)
164 4-987-496-11 BUTTON (POWER) (BLACK)
* 165 4-989-071-01 SHEET (LED POWER)
166 4-987-520-01 WINDOW (REMOTE CONTROL) (GOLD)
166 4-987-520-11 WINDOW (REMOTE CONTROL) (BLACK)
167 4-992-535-02 PANEL (EDGE L) (GOLD)
167 4-992-535-12 PANEL (EDGE L) (BLACK)
* 168 1-666-743-11 HP BOARD
169 4-992-540-01 BUTTON (FUNC) (GOLD)
169 4-992-540-11 BUTTON (FUNC) (BLACK)
170 X-4947-844-1 BUTTON (PLAY) ASSY (GOLD)
170 X-4947-845-1 BUTTON (PLAY) ASSY (BLACK)
171 4-992-542-01 BUTTON (EDIT) (GOLD)
171 4-992-542-11 BUTTON (EDIT) (BLACK)
* 172 1-666-745-11 ANALOG VOLUME BOARD
* 173 1-666-744-11 DIGITAL VOLUME BOARD
174 4-992-538-01 BASE (R), PANEL (GOLD)
174 4-992-538-11 BASE (R), PANEL (BLACK)
175 4-989-035-01 CUSHION (FL)
176 4-992-536-01 ESCUTCHEON, KNOB (GOLD)
176 4-992-536-11 ESCUTCHEON, KNOB (BLACK)
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks

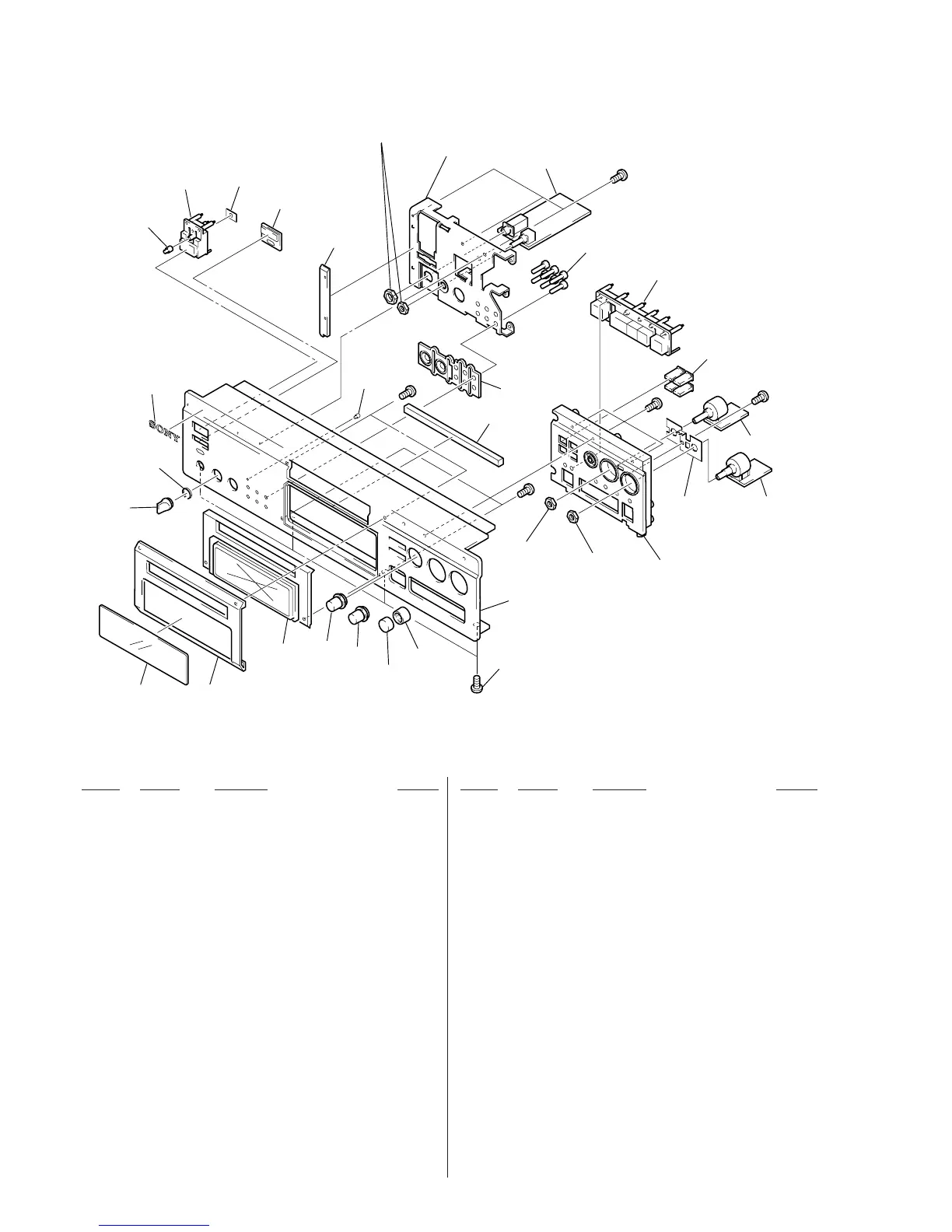

7-4. FRONT PANEL SECTION 2
#8
not supplied
164
165
163
166
167
168
170
171
169
176
163
175
173
172
162
161
160
159
158
157
156
155
154
153
152
151
174
#9
#15
#10
#15
not supplied
supplied with
RV602
supplied with
RV601
supplied with J651,RV651
