SECTION 7
EXPLODED VIEWS
Note:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
— 73 —
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
1
2
3
4
5
6
7
8
5
5
9
3
1
2
#1
#1
#7
#7
#7
#7
#7
10
#2
#3
#7
#7
MDM-4
not supplied
A
A
1 4-970-124-01 CUSHION (F50180S)
2 4-970-123-01 FOOT (F50180S)
3 4-929-074-01 SCREW (3X8)
* 4 4-615-354-01 SPACER
5 3-363-099-21 SCREW (CASE 3 TP2)(BLACK)
5 3-363-099-51 SCREW (CASE 3 TP2) (GOLD)
6 4-969-469-01 CASE (BLACK)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
6 4-969-469-31 CASE (GOLD)
7 4-987-666-01 PANEL, LOADING (GOLD)
7 4-987-666-11 PANEL, LOADING (BLACK)
8 3-831-441-99 CUSHION, SPEAKER
9 4-945-431-01 WASHER
* 10 4-993-065-02 PLATE, BOTTOM

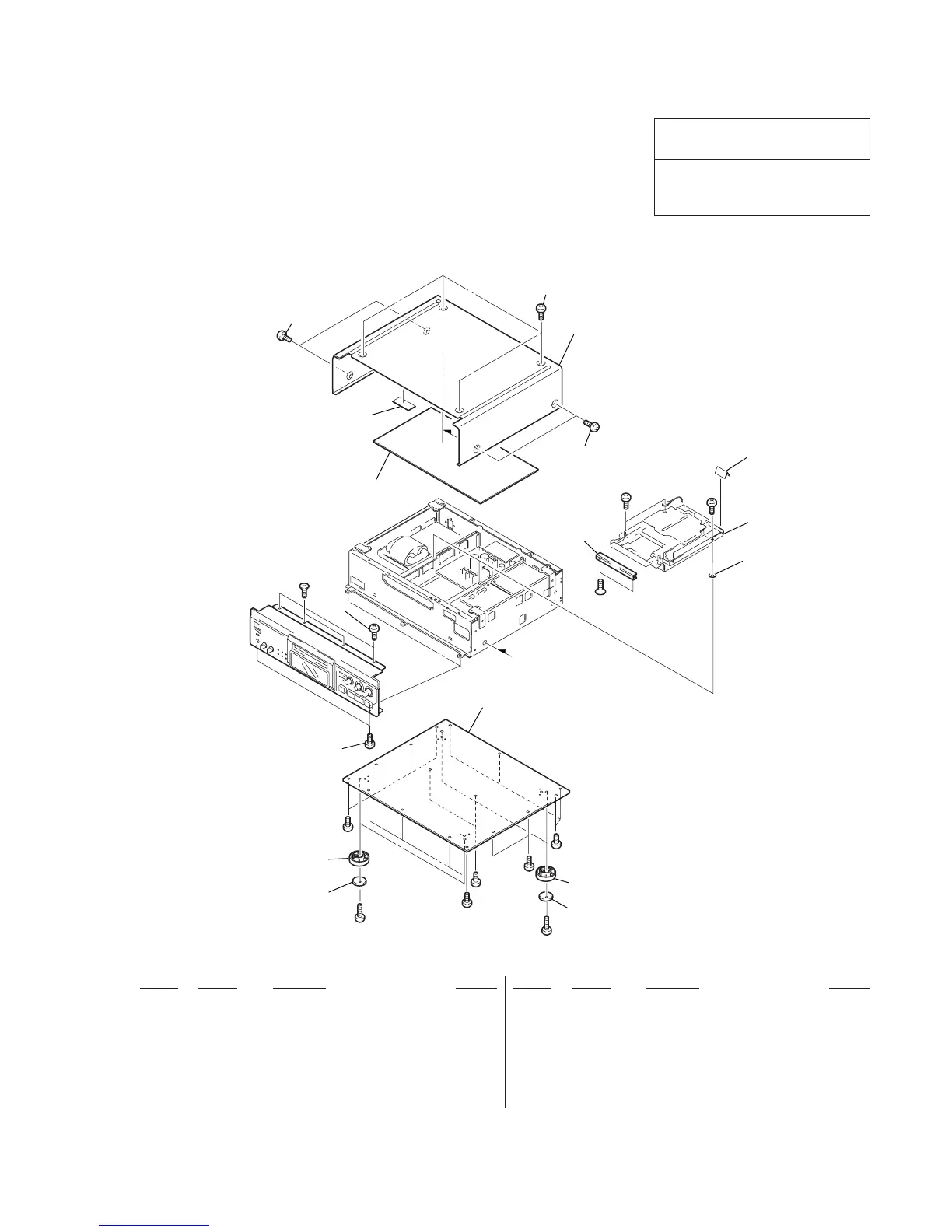

7-1. MAIN SECTION
To Next Page
