Sony MDS-JA30ES Service Manual

— 8 —
SECTION 3
DISASSEMBLY
Note : Follow Xthe disassembly procedure in the numerical order given.

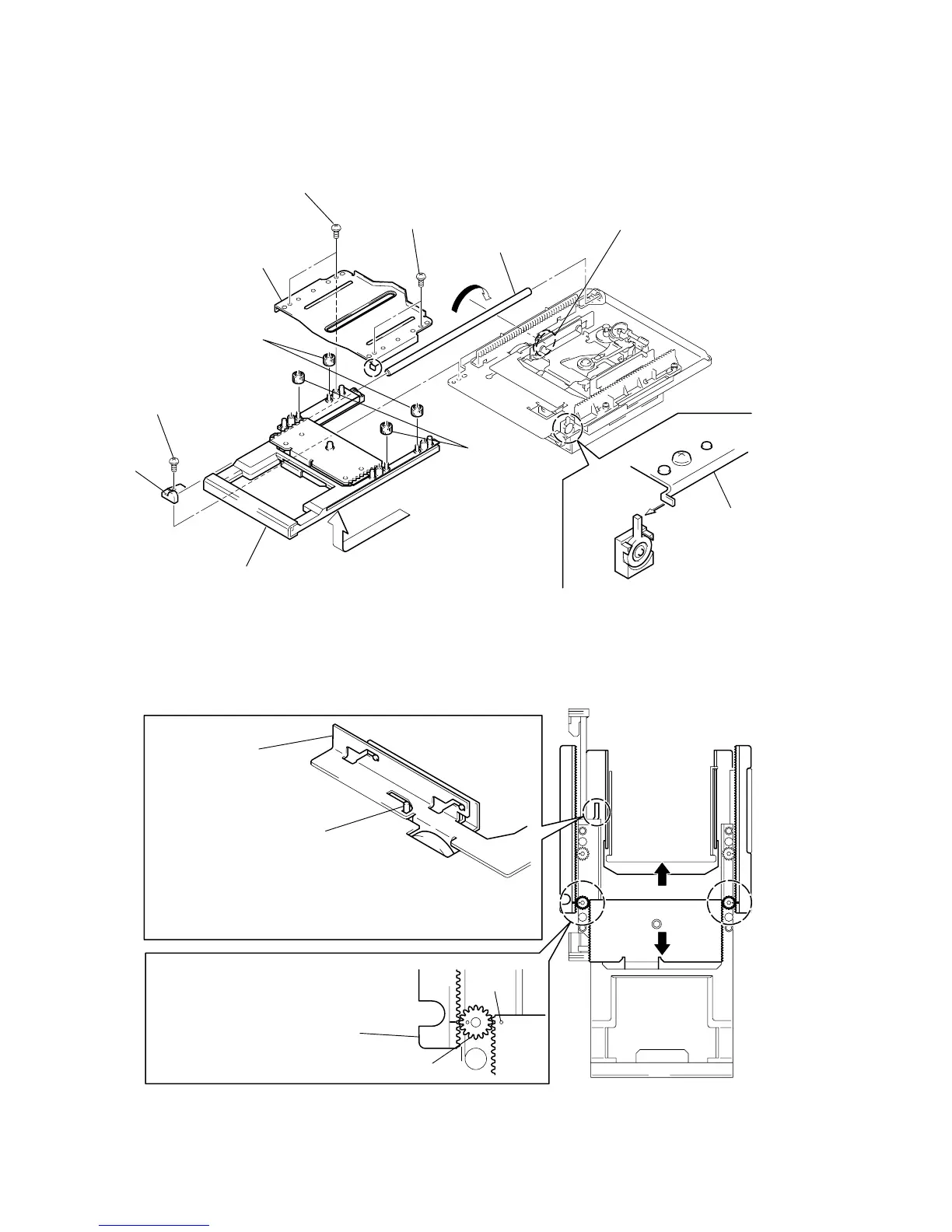

3-1. TRAY ASSEMBLY
1 Rotate the pulley gear in the arrow
direction A , and pull out the tray
assembly.
2 Two screws
(PTP 2.6x6)
3 Two screws
(PTP 2.6x6)
6 Gear 4
(Two gear)
7 Screw
(BVTT 3x6)
9 Shaft
0 Remove the tray assembly
in the arrow direction B .
A
B
Bracket (TOP)
Note:
When attaching the bracket (TOP), attach while
pressing the switch as shown in the figure.
• Precautions on Attaching
(Assemble in the reverse order of removal.)
Slider assembly
When attaching the tray assembly, first move the slider
assembly in the arrow direction B and set Pin A at the
position shown.
When attaching gear 4 (two in front), pull the tray
assembly in arrow direction A completely, and
position racks (L), (R) and (D) as shown in the
figure.
Rack (L)
Gear 4
Rack (D)
Hole
A
B
5 Gear 4
(Two gear)
8 Stopper
(Shaft A)
Pin A
4 Bracket
(TOP)
