Sony MDS-JA30ES Service Manual

— 78 —
* 351 X-4947-819-1 SLIDER ASSY
352 X-4947-937-1 LEVER (LOCK) ASSY
* 353 X-4947-818-1 CHASSIS ASSY
* 354 1-663-898-11 OUT BOARD
* 355 1-663-897-11 IN BOARD
356 4-987-313-01 SPRING, COMPRESSION
* 357 4-987-314-01 COLLAR (DAMPER)
358 4-987-308-01 BELT (LOADING)
359 4-987-297-01 GEAR, PULLEY
* 360 1-663-900-11 LMOT BOARD
* 361 X-4947-823-1 BRACKET (MOTOR) ASSY
362 4-987-274-01 TABLE (LOADING)
363 4-968-919-31 WASHER, STOPPER
364 4-987-302-01 GEAR
365 4-987-298-01 GEAR (A), PLANET
366 4-987-301-01 GEAR (D), PLANET
367 4-987-300-01 GEAR (C), PLANET
368 4-987-299-01 GEAR (B), PLANET
M191 X-4947-824-1 MOTOR (LOADING) ASSY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

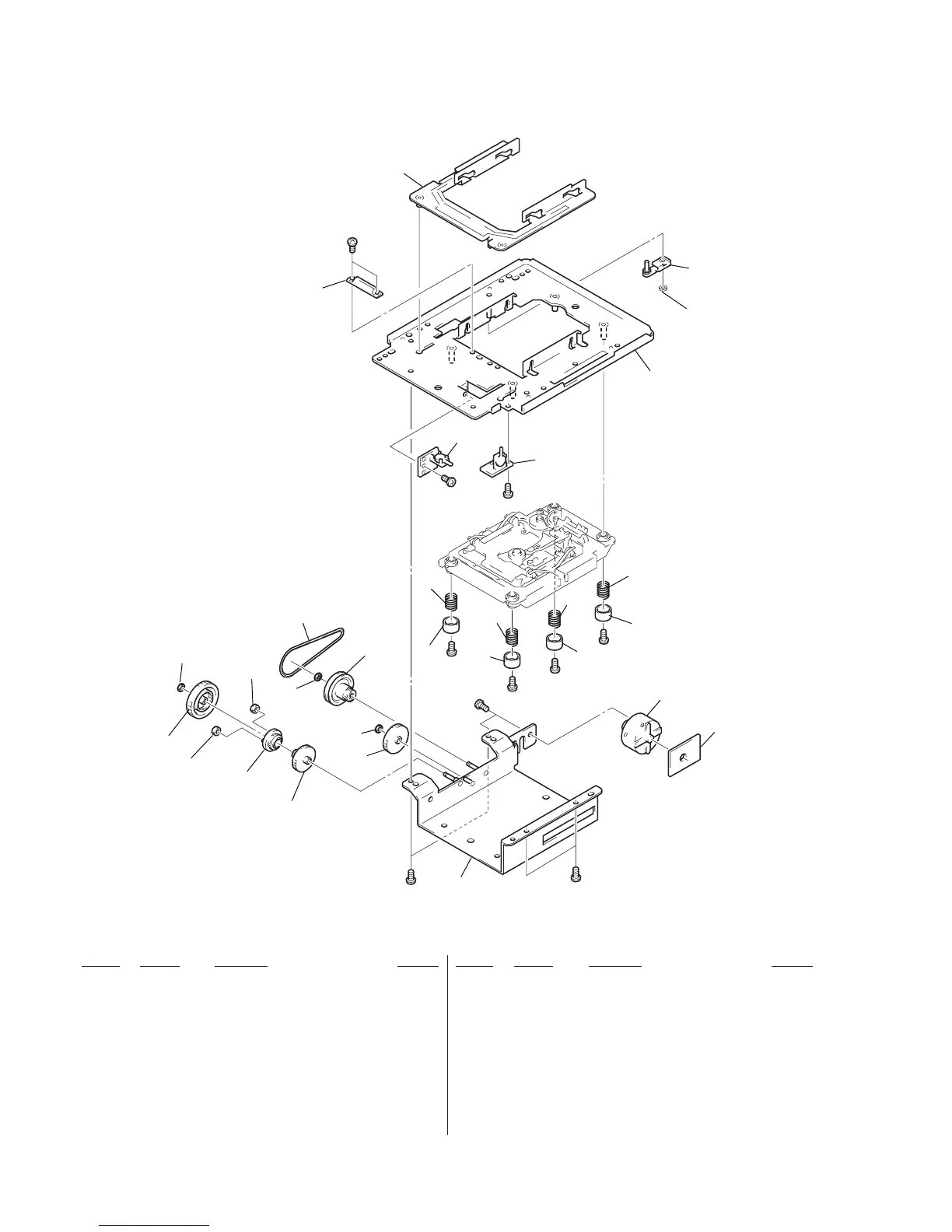

7-6. MECHANISM SECTION 2 (MDM-4B)
351
362
353
363
352
354
355
356
356
357
356
357
356
357
357
360
M191
361
358
359
364
363
368
367
366
365
363
357
363
#6
#6
#6
#6
#6
#6
#9
#6#6
#13
