Sony MHC-V50D - Side (L) Panel, Side (R) Panel

MHC-V50/V50D
11
Note: Follow the disassembly procedure in the numerical order given.

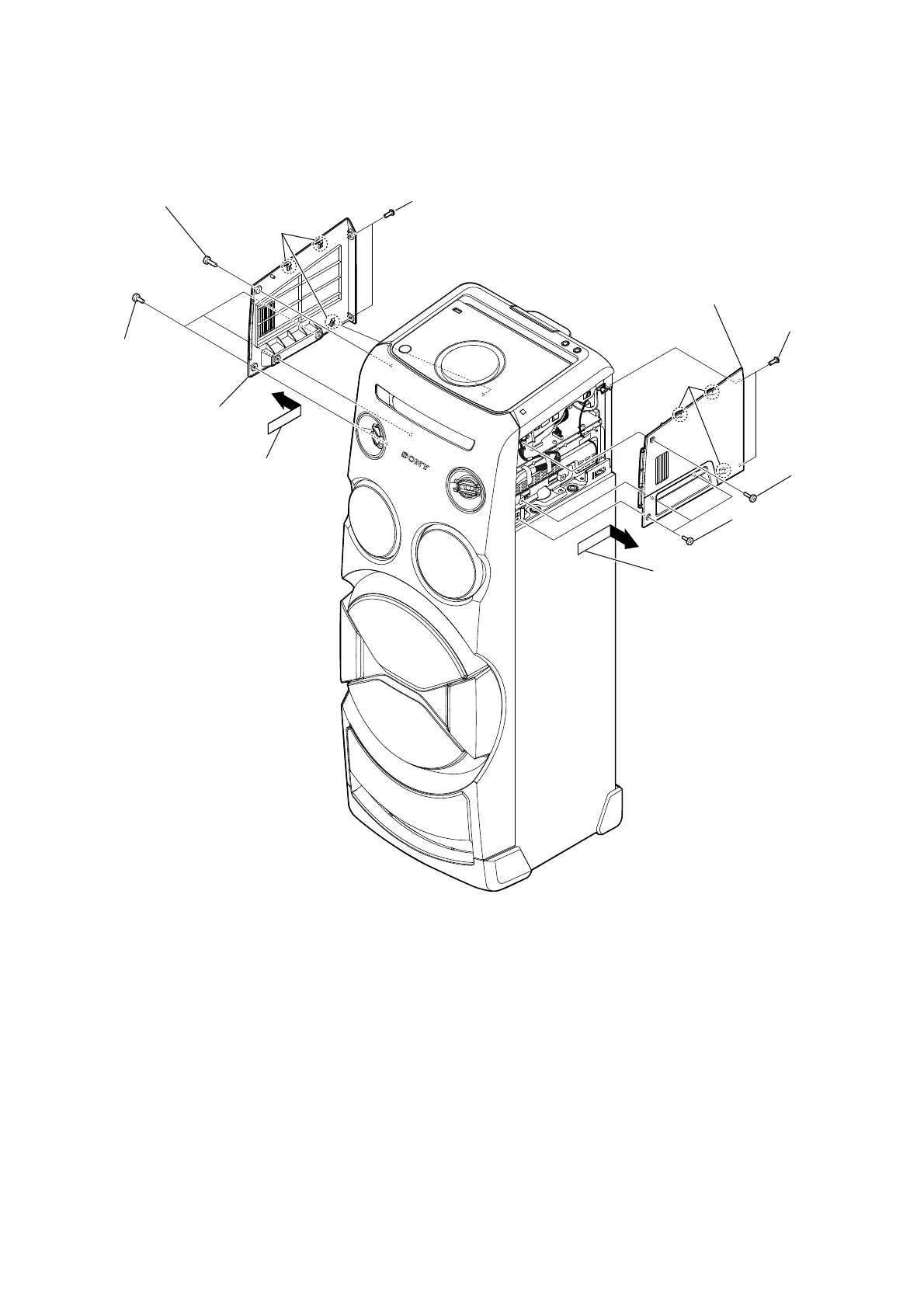

2-2. SIDE (L) PANEL, SIDE (R) PANEL
1 one screw
(SCREW, TAPPING)
3 two screws (+BVTP 3 x 8)
3 two screws
(+BVTP 3 x 8)
4 three claws
1 one screw
(SCREW,
TAPPING)
2 three screws
(SCREW, TAPPING)
2 three screws
(SCREW,
TAPPING)
4 three claws
5 Remove the panel, side (R)
in the direction of the arrow.
5 Remove the panel, side (L)
in the direction of the arrow.
6 panel, side (L)
6 panel, side (R)
– Front view –
