Sony MHC-V50D - Loading Panel Section

57
MHC-V50/V50D

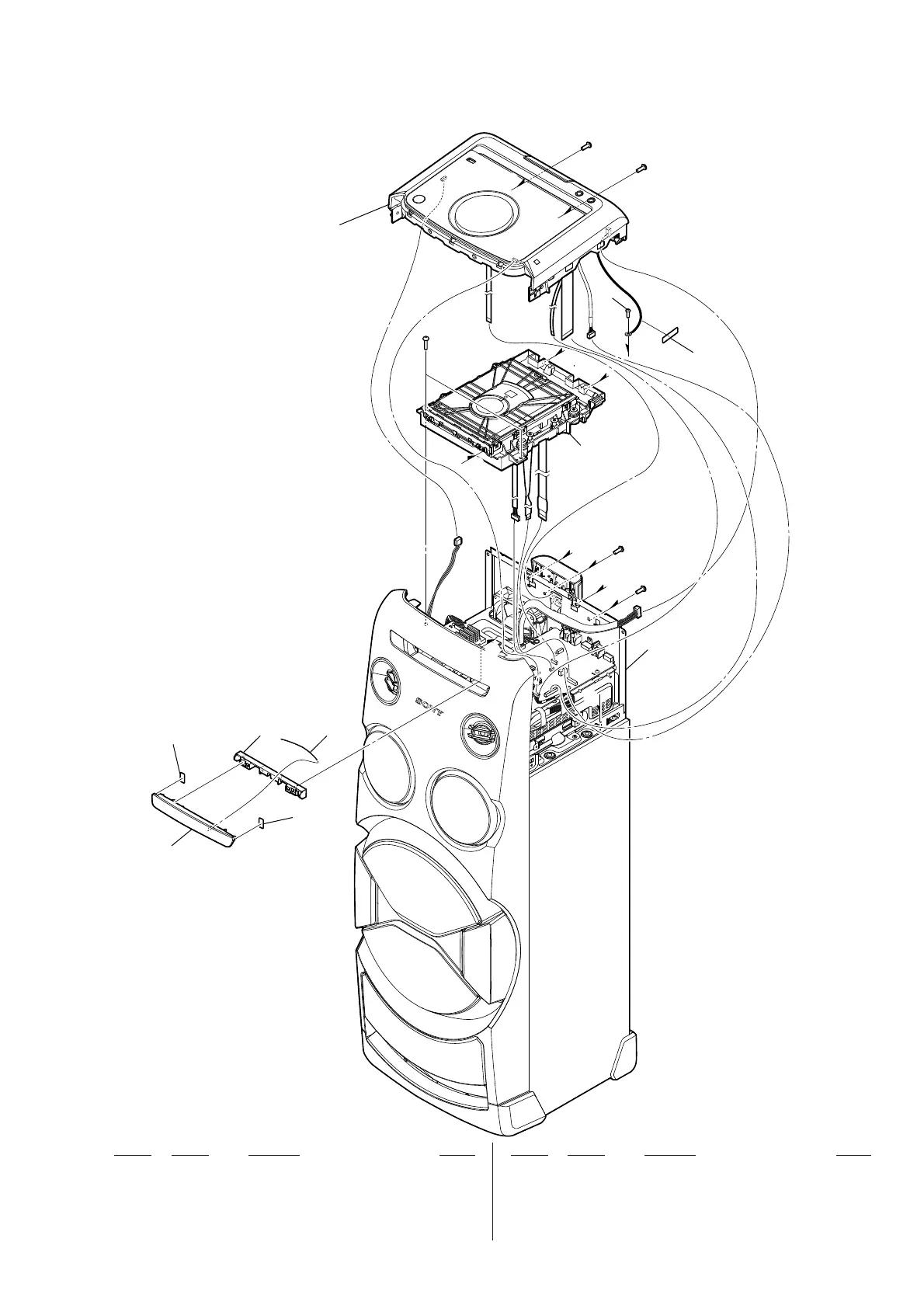

7-2. LOADING PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-569-030-01 SPRING (LP)
52 4-588-651-01 LOADING, BASE
53 4-581-300-01 PANEL, LOADING
54 4-592-253-11 CUSHION, HEMILON
55 3-077-331-21 +BV3 (3-CR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
A
A
D
E
D
E
F
F
B
C
B
C
top panel section
ns
back panel section
CDM section
#1
#1
#1
51
54
54
53
55
52
#1
#1
