Sony MHC-V50D - SECTION 7 EXPLODED VIEWS; Side Panel Section

56
MHC-V50/V50D
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.

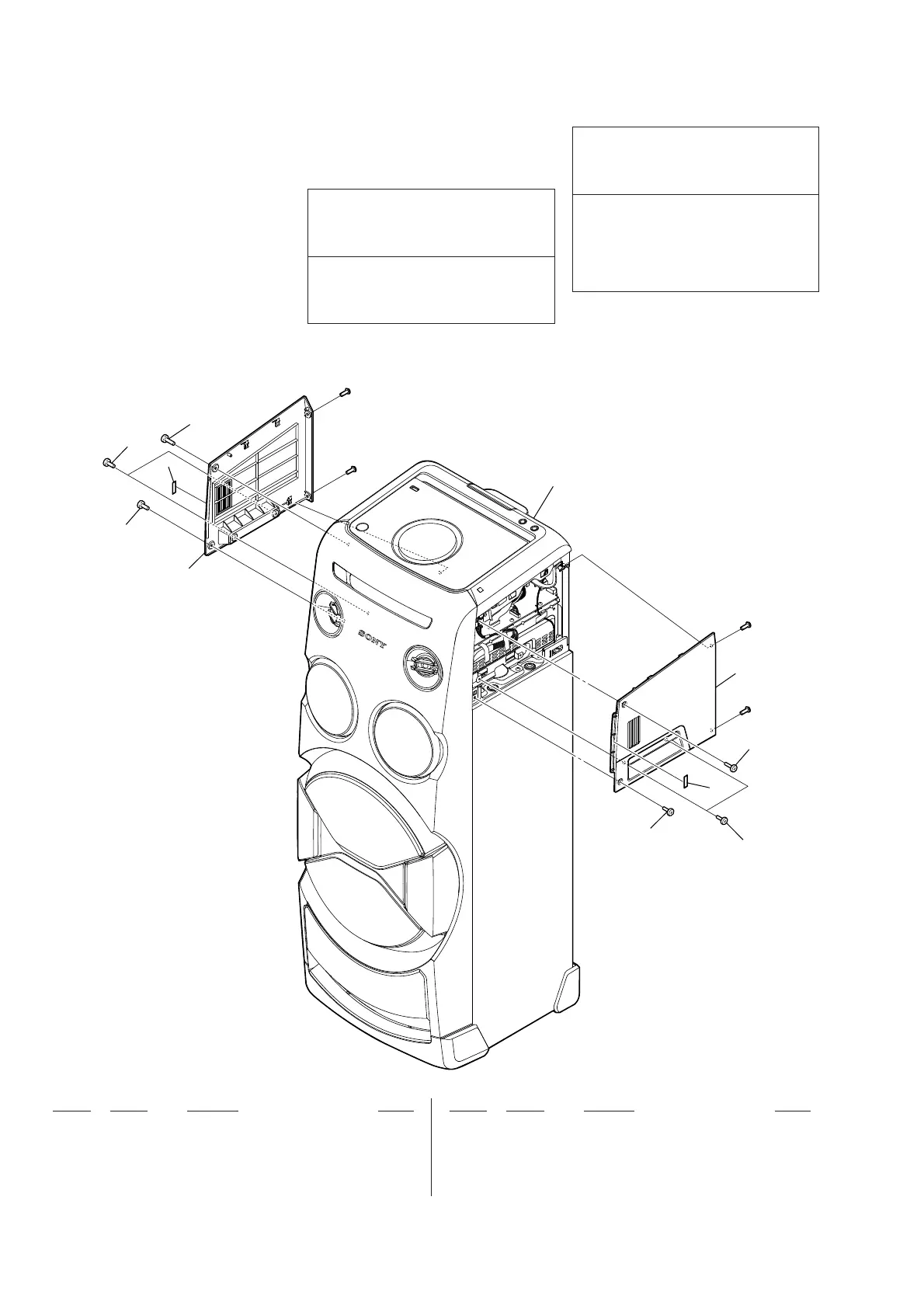

7-1. SIDE PANEL SECTION
• Abbreviation
AUS : Australian model
CND : Canadian model
LA9 : Latin-American model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi denti-
elles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-589-281-11 SCREW, TAPPING
2 4-589-281-01 SCREW, TAPPING
3 4-581-299-01 PANEL, SIDE (L) (V50D)
3 4-581-299-11 PANEL, SIDE (L) (V50)
4 4-581-298-01 PANEL, SIDE (R) (V50D)
4 4-581-298-11 PANEL, SIDE (R) (V50)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
3
1
2
#1
#1
#1
#1
ns
1
2
2
2
ns
4
loading panel section
