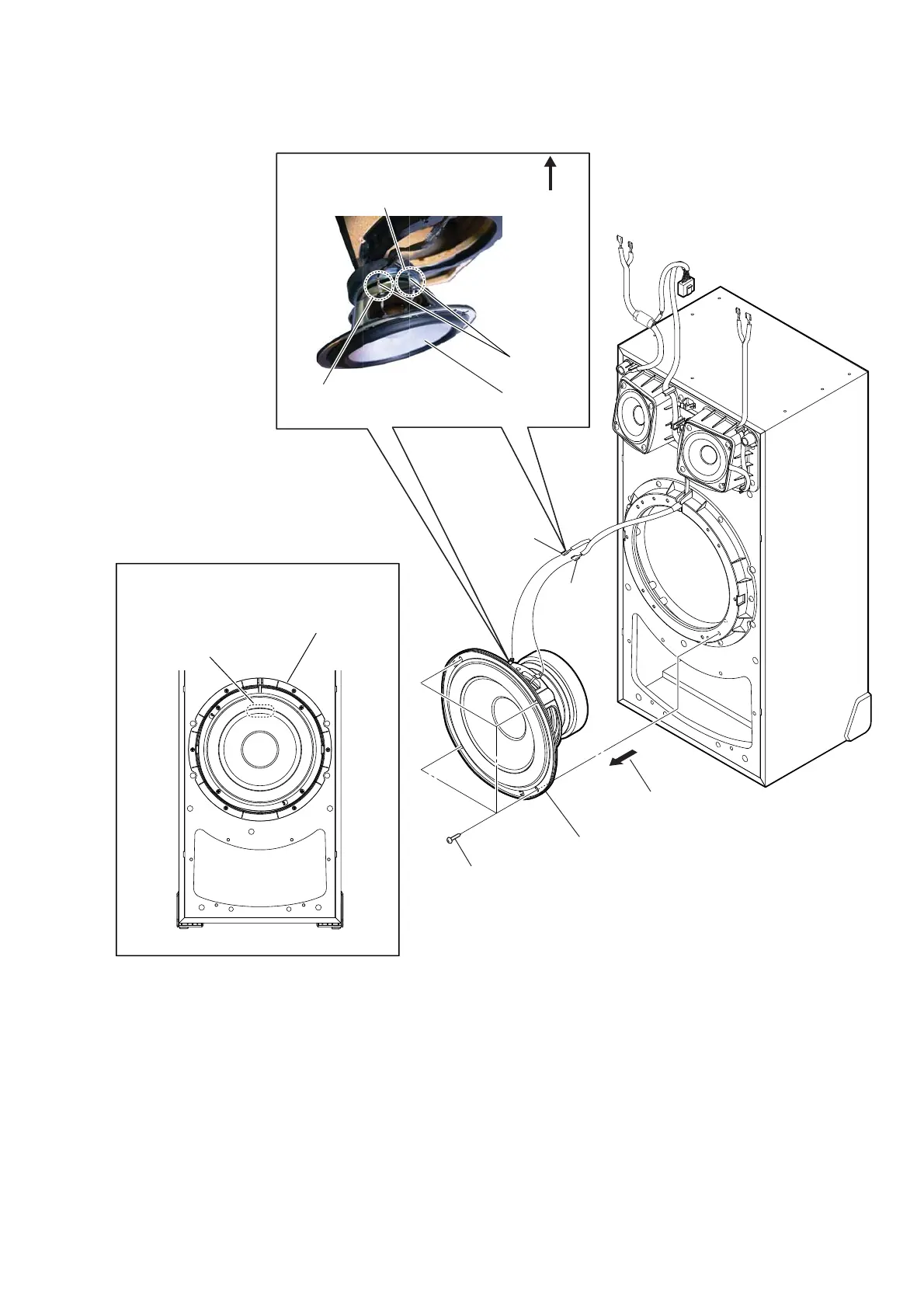

2-13. LOUDSPEAKER (20CM)
4 loudspeaker (20CM)
1 four screws ((4 x 20), +BV TAPPING)
2 Remove the loudspeaker
(20CM) in the direction of the arrow.
terminal
(narrow side)
terminal
(wide side)
loudspeaker (20CM)
terminal position
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU
&0
:LUHVHWWLQJ
protrusion
top side
3 Push the protrusion, and remove
the terminal (narrow side).
3 Push the protrusion, and remove
the terminal (wide side).
–)URQWYLHZ–
loudspeaker
(20CM)
