Sony MHC-V50D - CD;DVD Mechanism Section (CDM90-DVBU204;;C)

66
MHC-V50/V50D

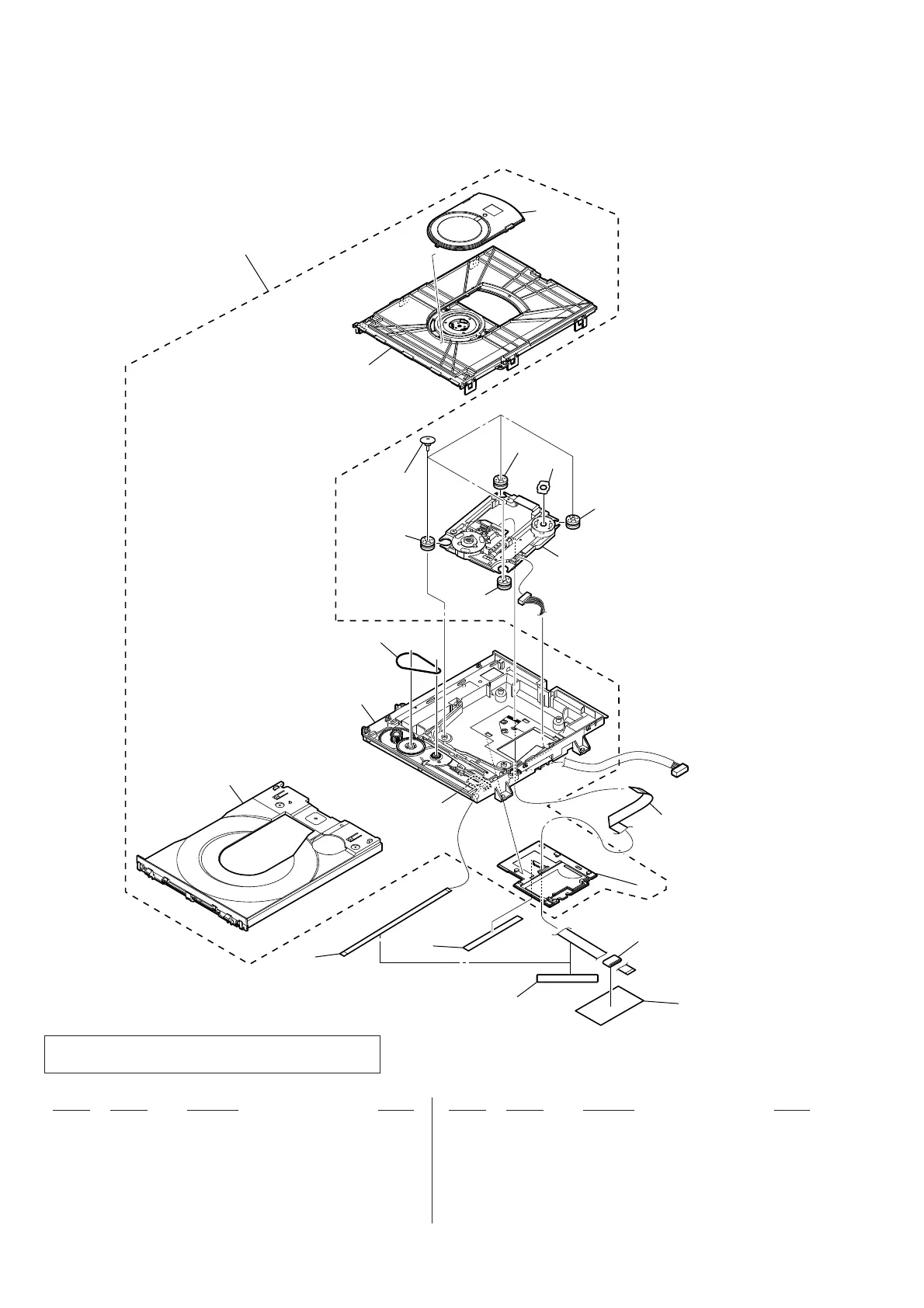

7-10. CD/DVD MECHANISM SECTION
(CDM90-DVBU204//C)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451 A-1937-669-C CDM90 ASSY (including MS-476 board)
452 3-087-599-01 INSULATOR SCREW
453 2-634-618-21 INSULATOR
454 4-418-987-01 SHEET (S76)
0
455 A-2046-956-A SERVICE, OPTICAL DEVICE (7G)
456 1-469-829-11 CORE, FERRITE
457 1-849-481-11 FLEXIBLE FLAT CABLE (24 CORE)
458 1-849-476-11 FLEXIBLE FLAT CABLE (5 CORE)
459 4-474-153-81 CUSHION (H)
460 4-459-192-02 CUSHION (FFC)
ns not supplied
ns
ns
451 (including MS-476 board)
ns
ns
ns
ns
MS-476 board (ns)
452
453
453
453
453
455
457
460
459
458
454
459
456
Note: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
