Sony MHC-V50D - Top Panel, PARTY LIGHT Board Section-1

59
MHC-V50/V50D

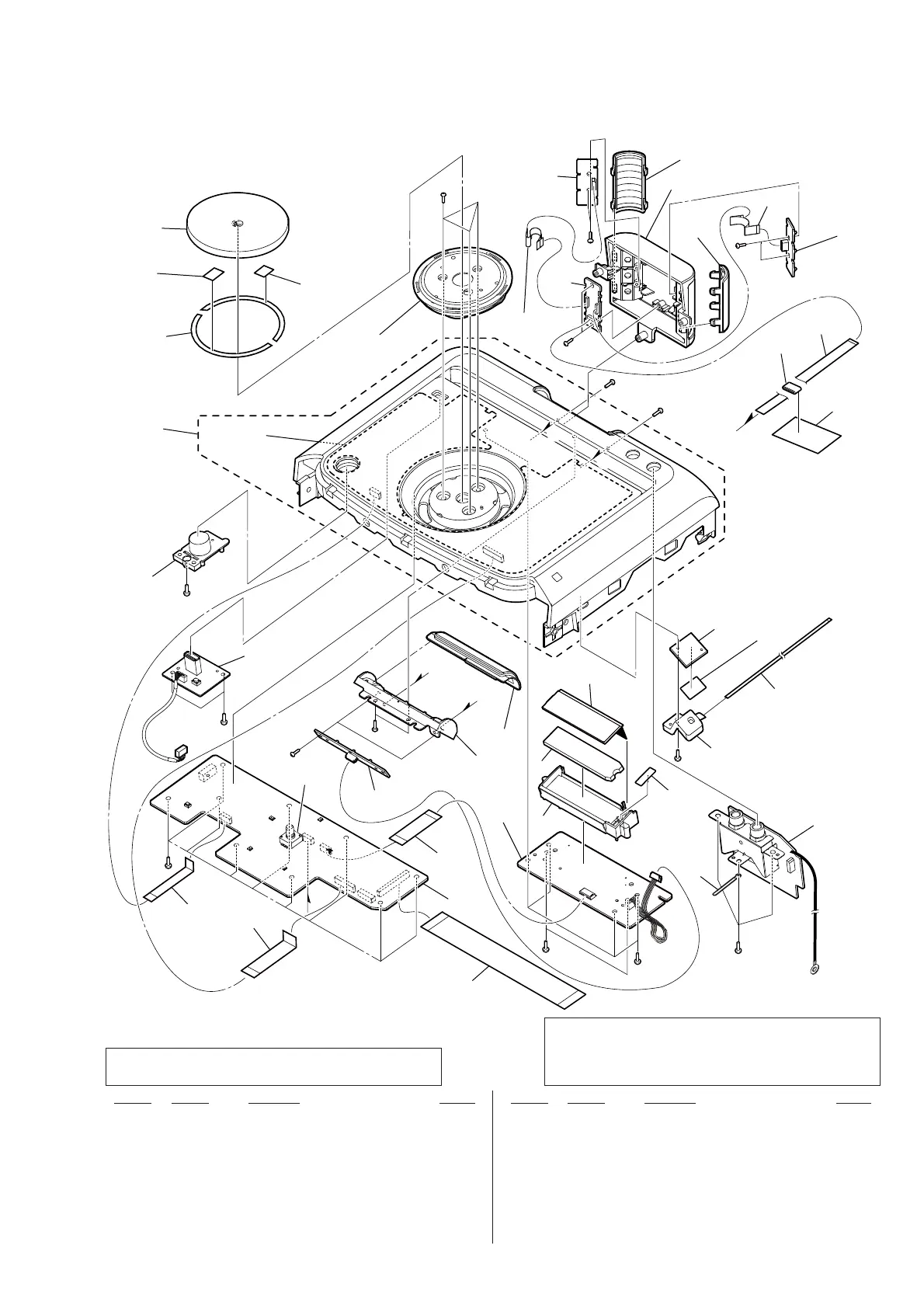

7-4. TOP PANEL, PARTY LIGHT BOARD SECTION-1
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Note 2: When the RC-S730 (WW) board is replaced, re-
fer to “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-581-291-01 KNOB, VOLUME
152 4-694-974-01 SHEET, SOUND
153 1-912-093-11 FLEXIBLE FLAT CABLE (6 CORE)
154 8-989-602-00 RC-S730 (WW)
155 1-912-100-11 FLEXIBLE FLAT CABLE (9 CORE)
156 1-912-097-11 FLEXIBLE FLAT CABLE (19 CORE)
157 1-912-107-11 FLEXIBLE FLAT CABLE (29 CORE)
158 1-912-096-11 FLEXIBLE FLAT CABLE (11 CORE)
159 1-912-095-11 FLEXIBLE FLAT CABLE (9 CORE)
160 A-2144-056-A VOLUME BOARD, COMPLETE
161 1-469-829-11 CORE, FERRITE
162 4-459-192-02 CUSHION (FFC)
163 A-2144-050-A LCD BOARD, COMPLETE
164 A-2144-057-A TOP PARTY LIGHT BOARD, COMPLETE
165 4-686-651-01 LENS, TOP
– Continued on next page –
G
171
167
169
170
172
#4
#4
#4
170
#4
H
I
I
H
#4
#4
#4
MIC board
(ns)
ns
SENSOR
board (ns)
USB board
(ns)
G
164
165
ND3200
EN1251
ns
ns
ns
ns
ns
151
166
160
161
168
168
159
154
152
162
ns
ns
ns
ns
ns
#2
#2
#2
#2
#2
#2
#2
158
155
156
163
157
153
#2
