Sony MHC-V50D - Front Panel Section

63
MHC-V50/V50D

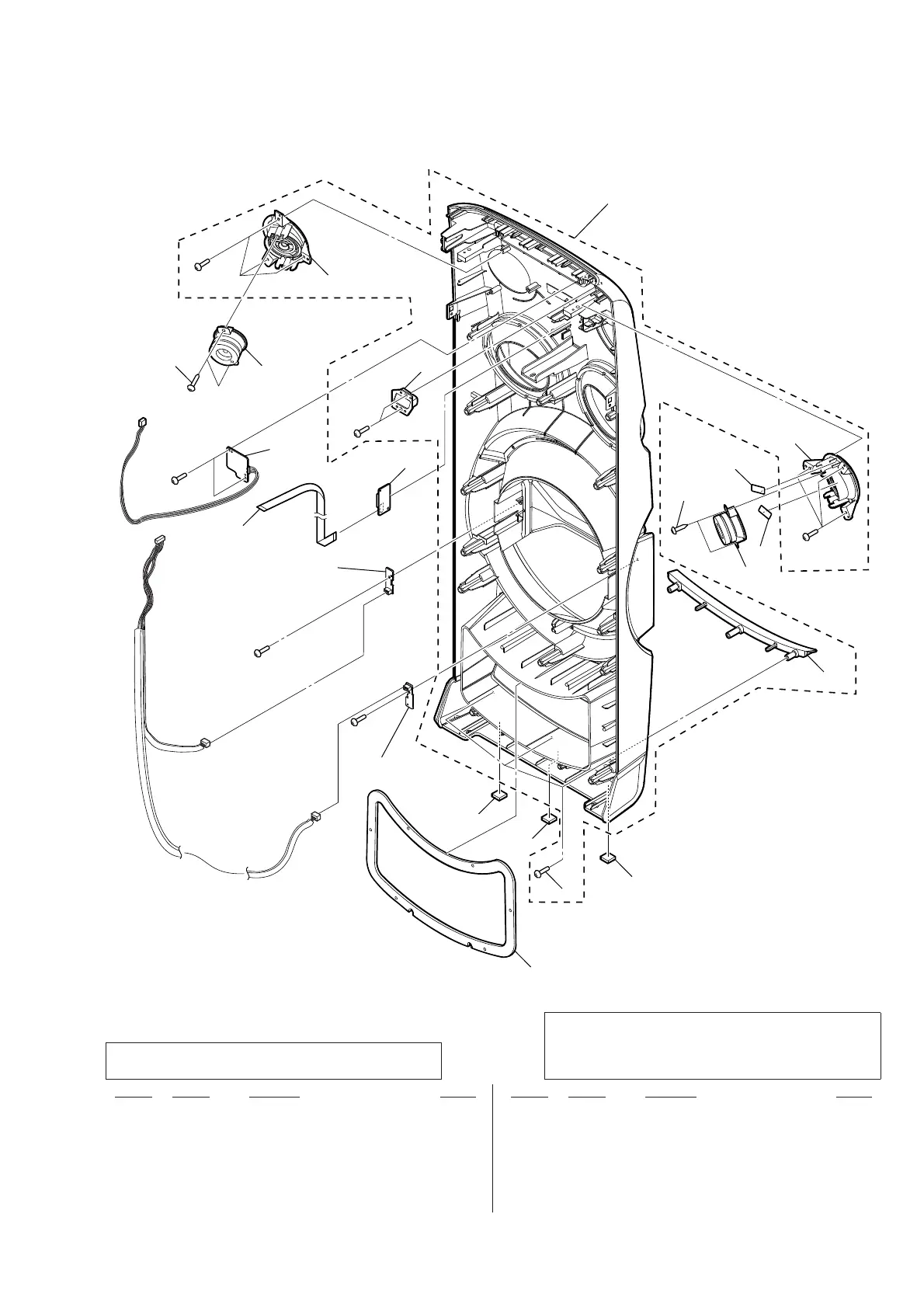

7-7. FRONT PANEL SECTION
Note 2: When the BLUETOOTH MODULE is replaced,
refer “NOTE OF REPLACING MOTHERBOARD
BOARD OR BLUETOOTH MODULE OR RC-
S730 (WW) BOARD” on page 6.
Note 1: If fl exible fl at cable is replaced, install it after bend-
ing it in the same form as that before replacement.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 1-849-480-11 FLEXIBLE FLAT CABLE (10 CORE)
302 1-492-699-32 BLUETOOTH MODULE
303 A-2144-060-A SPK RGB L BOARD, COMPLETE
304 A-2144-061-A SPK RGB R BOARD, COMPLETE
305 4-874-614-12 SCREW (1) (3.5X14), TAPPING
306 1-859-223-11 LOUDSPEAKER (4CM)
307 4-592-164-01 FOOT, RUBBER
308 X-2594-827-1 PANEL, FRONT (SW) ASSY (V50D)
308 X-2594-353-1 PANEL, FRONT (SW) ASSY (V50)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
308
305
306
301
303
304
302
307
307
ns
ns
ns
#2
305
306
#2
#2
#2
#2
#2
#2
ns
ns
ns
ns
307
IR board
(ns)
