Sony MXD-D3 - Page 19

19

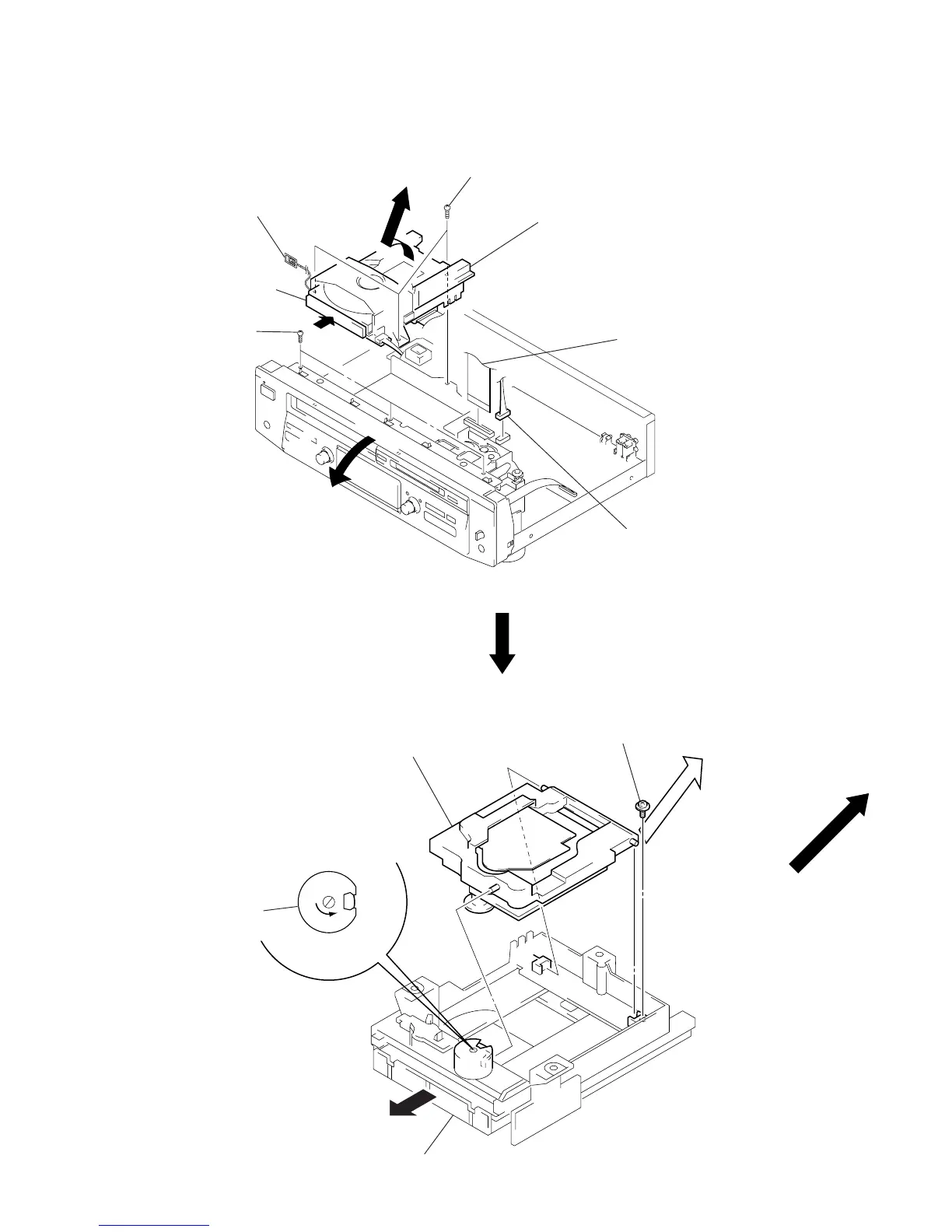

CD MECHANISM DECK SECTION
(CDM14H-5TBD26B)
CHASSIS (MD)
2 Pull out the disc table.
3 yoke bracket
A
4
Remove the chassis (MD)
to direction of the arrow
A .
1 Rotate the cam counterclockwise
with a flat-blade screwdriver.
cam
4 three screws
(BVTT3
× 6)
6 Pulling the front panel in the direction of the arrow A
a little, remove the mechanism deck (CDM14H-5TBD26B)
in the direction of the arrow
B .
Note: Don’t pull the front panel in the direction of
the arrow
A by force.
2 connector
(CN502)
A
4
three screws
(BVTT3
× 6)
3 lead (with connector)
5 Push the disc table.
B
1
wire (flat type) (29 core)
(CN501)
