Sony MXD-D3 - Page 20

20

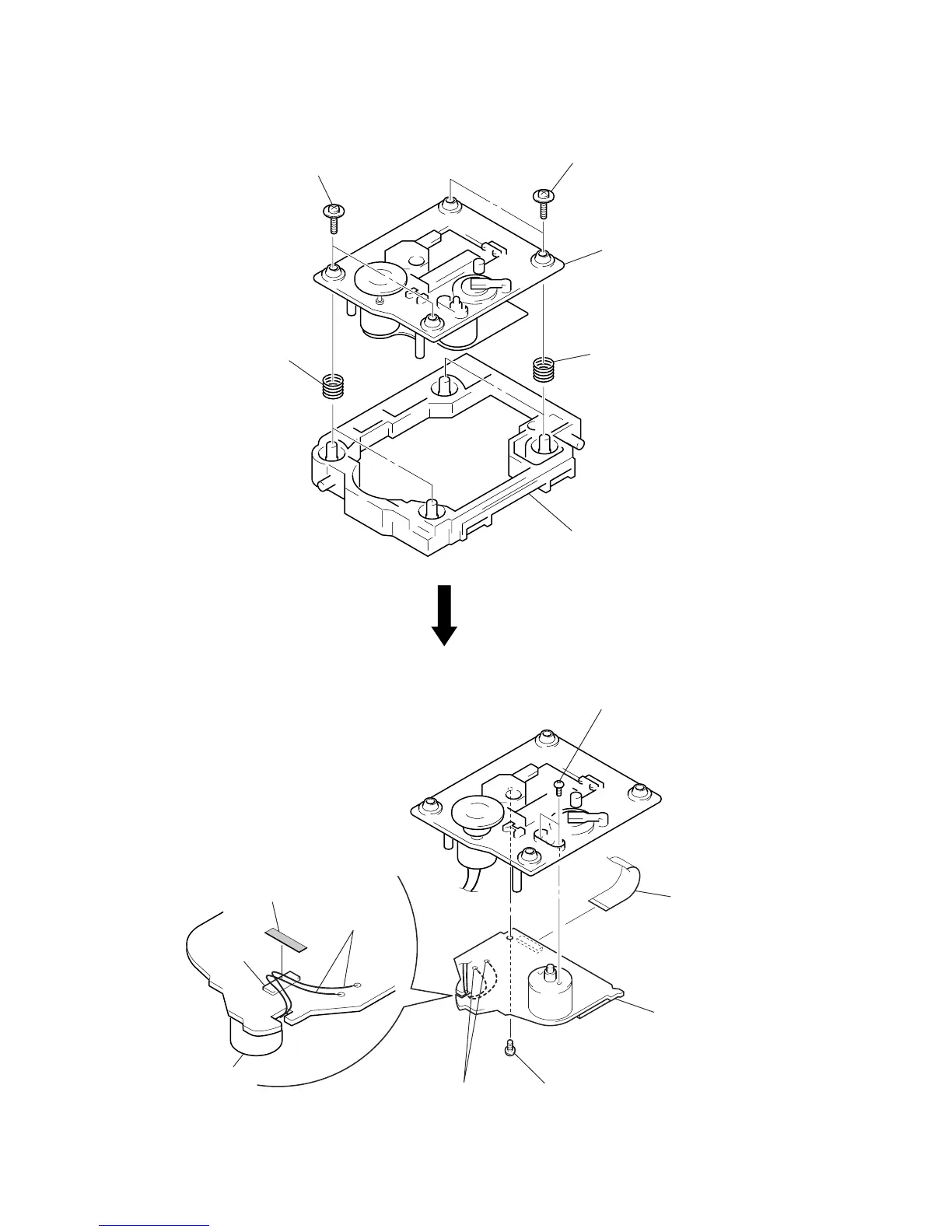

CD BASE UNIT (BU-5TBD26B)
BD (CD) BOARD
adhesive sheet
IC191
motor leads
spindle motor
2 Remove two solders
of spindle motor leads.
4 screw
(BVTP2.6
× 8)
1 wire (flat type) (16 core
)
(CN102)
3 two screws
(P2
× 3)
Note: When routing the lead wires of spindle motor,
pass them through a slot in the BD (CD) board,
then solder to the motor. Then, secure the lead wires
to the IC191 with an adhesive sheet so as not to be loose,
as shown in the figure.
5 BD (CD) board
3 two compression springs (932)
1 two screws
(PTPWHM2.6)
1 two screws
(PTPWHM2.6)
2 CD base unit (BU-5TBD26B)
3 two compression springs (932)
4 chassis (MD)
