22

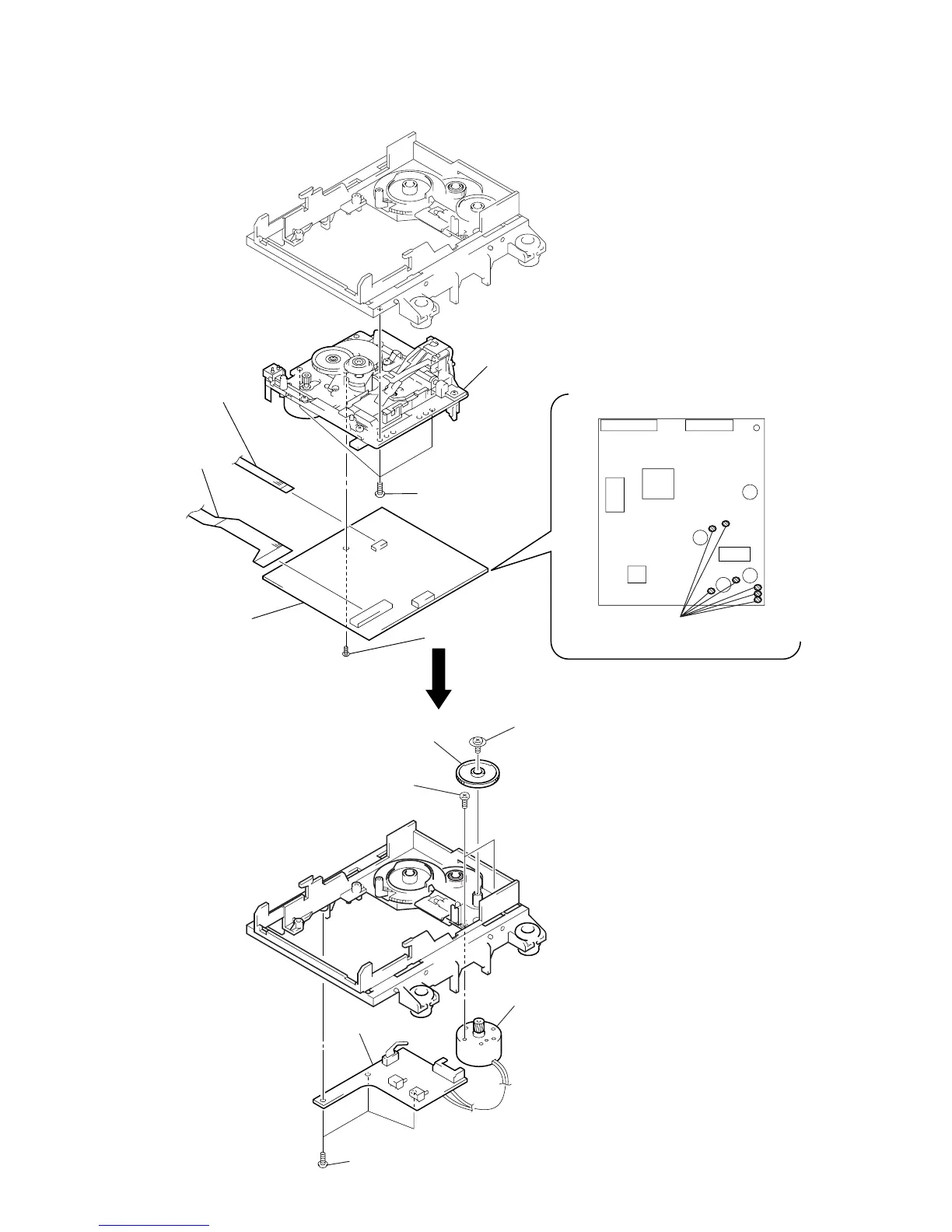

MD BASE UNIT (MBU-5X2B), BD (MD) BOARD
SW BOARD, LOADING MOTOR (M203)
1 three screws
(P2.6
× 6)
2 base unit (MBU-5X2B)
3 Remove the solder (Seven portion).
4 screw (M1.7 × 4)
6 flexible board
(CN101)
7 BD (MD) board
5 flexible board
(CN104)
5 three screws (BTP2.6 × 6)
6 SW board
4 loading motor (M203)
3 two screws
(PWH1.7
× 4)
1 screw (PTPWH M2.6 × 6
)
2 gear B
