23

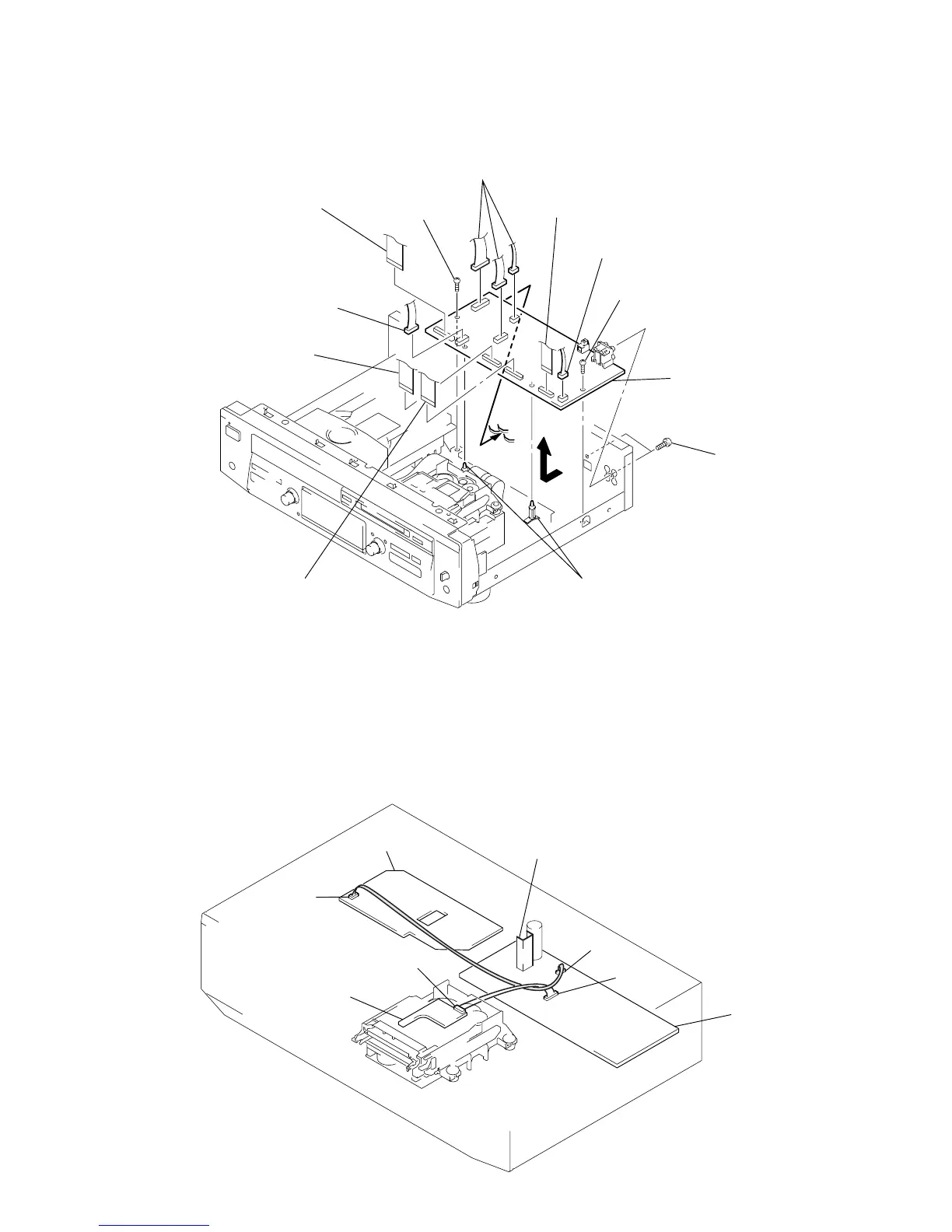

MAIN BOARD
2 connector
(CN502)
1 wire (flat type) (27 core)
(CN602)
1 wire (flat type) (23 core)
(CN601)
5 two PC board holders
4 two screws
(BVTP3
× 8
)
6 MAIN board
3 screw
(BVTT3
× 6)
2 connector
(CN451)
1 wire (flat type) (19 core)
(CN604)
2 three connectors
(CN603, 901, 902)
3 screw
(BVTT3
× 6)
1 wire (flat type) (29 core)
(CN501)
CN101
TRANS board
CN601
SW board
CN603
CN902
MAIN board
heat sink
MEASURE AGAINST HEAT FROM HEAT SINK
When connecting the cable from TRANS board (CN101) to MAIN board (CN902),
cross it with the cable between SW board (CN601) and MAIN board (CN603), as shown in the figure.
#
