76

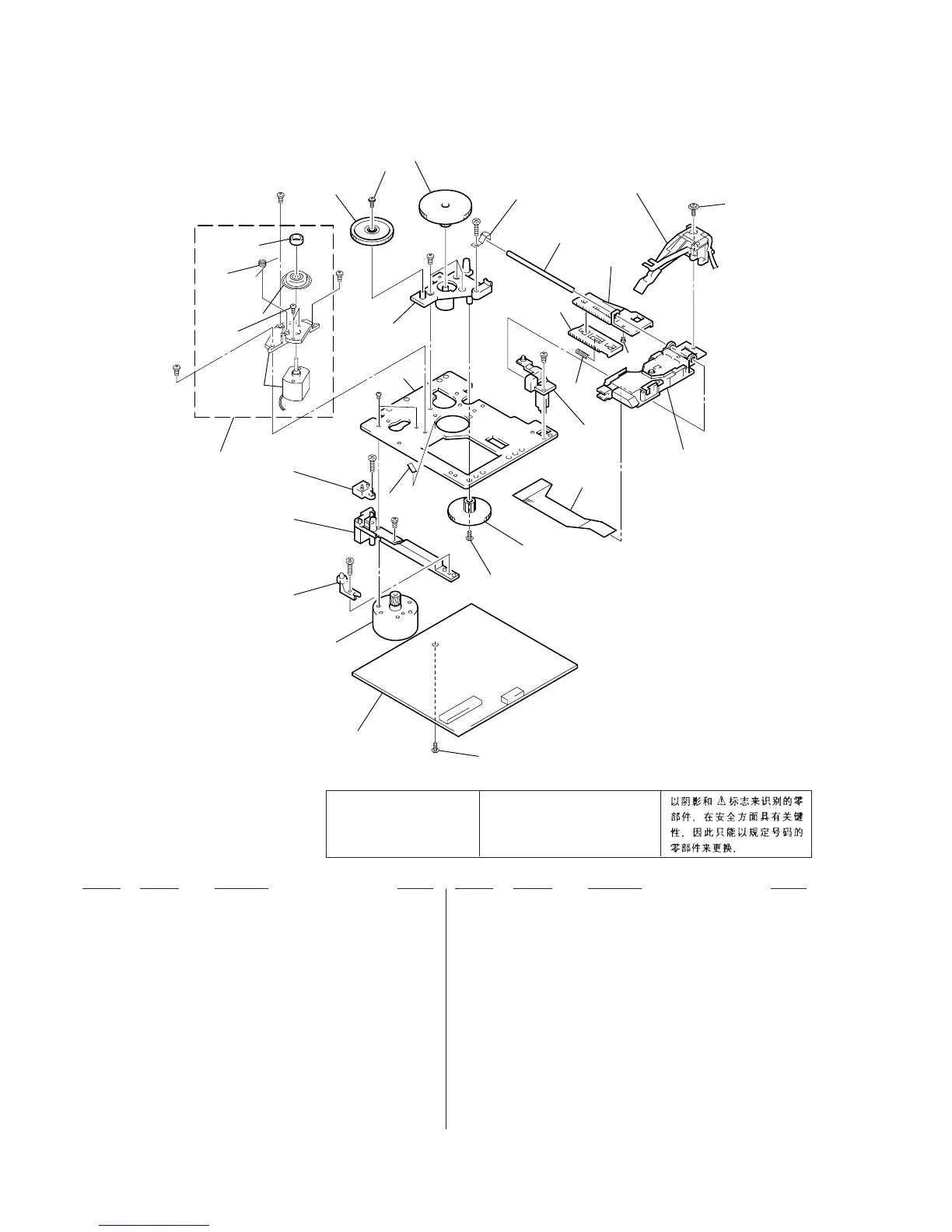

(5) MD BASE UNIT SECTION
(MBU-5X2B)
not supplied
not supplied
#3
#3
HR901
#3
#3
#3
#3
#3
#4
#4
#5
not supplied
251
252
252
253
254
S102
M201
252
257
258
259
260
261
262
263
272
270
264
265
266
267
268
269
256
255
271
M202
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 A-4724-855-A BD (MD) BOARD, COMPLETE
252 3-372-761-01 SCREW (M1.7), TAPPING
* 253 4-996-267-01 BASE (BU-D)
* 254 4-996-255-01 BASE (BU-C)
255 4-900-590-01 SCREW, PRECISION SMALL
256 4-996-258-01 SPRING, COMPRESSION
257 4-996-262-01 GEAR (SL-C)
258 1-667-954-11 FLEXIBLE BOARD
* 259 4-996-253-01 BASE (BU-A)
0 260 8-583-056-01 OPTICAL PICK-UP KMS-262A/J1N
* 261 4-996-252-01 CHASSIS, BU
* 262 4-996-254-01 BASE (BU-B)
263 4-967-688-11 MAGNET, ABSORPTION
264 4-996-260-01 GEAR (SL-A)
265 4-996-261-01 GEAR (SL-B)
266 4-996-264-01 SPRING (SHAFT), LEAF
267 4-996-265-01 SHAFT, MAIN
268 4-996-256-01 SL (BASE)
269 4-996-257-01 RACK (SL)
270 4-996-263-01 SPRING (CLV), TORSION
271 4-988-560-01 SCREW (+P 1.7X6)
272 4-211-036-01 SCREW (1.7X2.5), +PWH
HR901 1-500-502-11 HEAD, OVER WRITE
M201 A-4672-855-A MOTOR ASSY, SPINDLE (MD)
M202 A-4672-474-A MOTOR ASSY, SLED (MD)
S102 1-762-148-21 SWITCH, PUSH (2 KEY)
(REFLECT DET, PROTECT DET)
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
