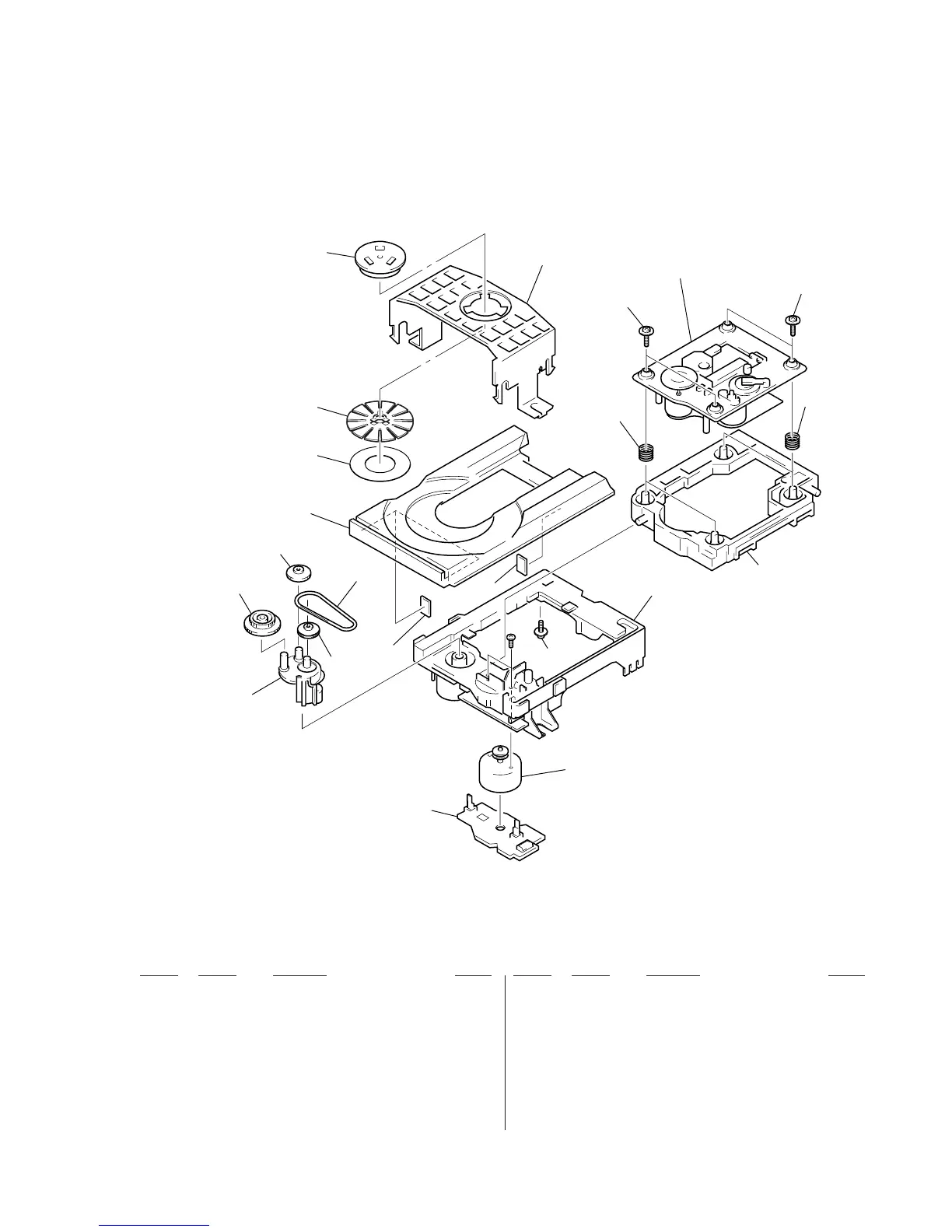

(6) CD MECHANISM DECK SECTION
(CDM14H-5TBD26B)
316
317
301
302
303
304
305
306
307
308
309
310
311
311
312
313
314
315
315
310
BU-5TBD26B
#8
M103
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 4-222-283-01 PULLEY (AT) (CDM14)
302 4-933-110-41 HOLDER (MG)
303 4-213-448-12 TABLE (BL), DISC
304 4-967-268-01 GEAR (C)
305 4-927-649-01 BELT
306 4-933-107-01 GEAR (PL)
307 4-927-651-01 PULLEY (S)
308 4-933-109-01 CAM
* 309 1-645-721-11 LOADING BOARD
310 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
311 4-959-996-01 SPRING (932), COMPRESSION
312 4-933-129-01 HOLDER (BU)
313 4-933-111-41 CHASSIS (MD)
* 314 4-917-583-21 BRACKET, YOKE
315 4-925-315-31 DAMPER
316 X-4952-522-1 PULLEY (AT) ASSY
317 4-220-951-02 SHEET (KH)
M103 A-4604-363-A MOTOR (L) ASSY (LOADING) (CD)
