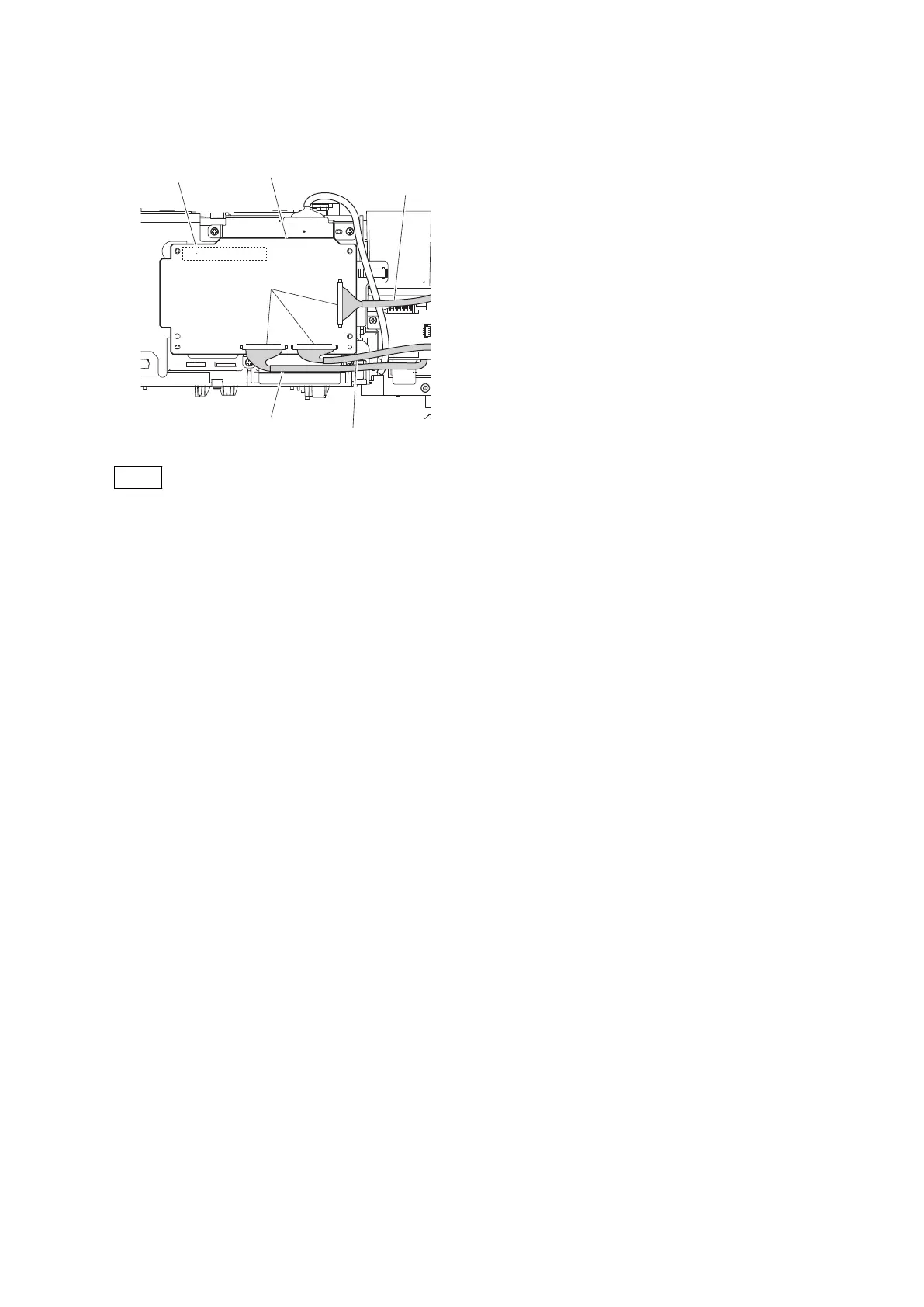

7. Remove the VPR-124 board from the connector on the DCP-64 board.
VPR-124 board
Connector
(DCP-64 board)
Connectors
Fine-wire coaxial cable (G ch)
Fine-wire coaxial cable (R ch)
Fine-wire coaxial cable (B ch)
Note
When connecting the fine-wire coaxial cables, pay attention to their colors.
8. Install the removed parts by reversing the steps of removal.
PMW-300
2-44
