Sony RM-YD017 - SELF-DIAGNOSTIC FUNCTION; Control Buttons; Description of LED Indictors

11
KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5

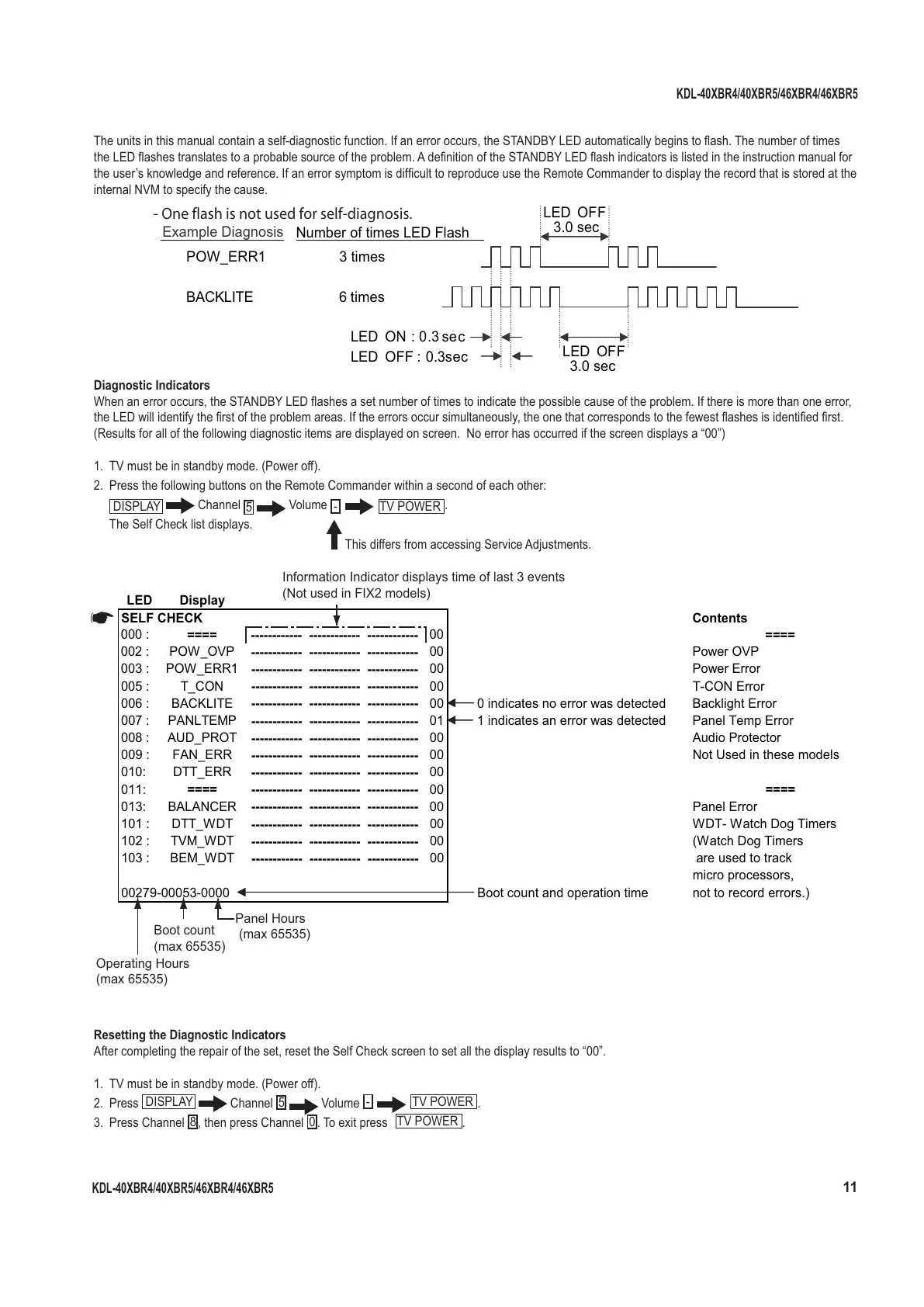

The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED automatically begins to fl ash. The number of times
the LED fl ashes translates to a probable source of the problem. A defi nition of the STANDBY LED fl ash indicators is listed in the instruction manual for
the user’s knowledge and reference. If an error symptom is diffi cult to reproduce use the Remote Commander to display the record that is stored at the
internal NVM to specify the cause.
Number of times LED Flash
POW_ERR1 3 times
BACKLITE 6 times
LED ON : 0.3 sec
LED OFF : 0.3sec
LED OFF
3.0 sec
LED OFF
3.0 sec
Example Diagnosis
- One flash is not used for self-diagnosis.
Diagnostic Indicators
When an error occurs, the STANDBY LED fl ashes a set number of times to indicate the possible cause of the problem. If there is more than one error,
the LED will identify the fi rst of the problem areas. If the errors occur simultaneously, the one that corresponds to the fewest fl ashes is identifi ed fi rst.
(Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “00”)
1. TV must be in standby mode. (Power off).
2. Press the following buttons on the Remote Commander within a second of each other:
DISPLAY
Channel
5
Volume
-
TV POWER
.
The Self Check list displays.
This differs from accessing Service Adjustments.
alpsiDDEL
y
stnetnoC
: 000
------------ ------------ ------------ ====
00
====
PVO_WOP: 200
------------ ------------ ------------
PVO rewoP00
1RRE_WOP: 300
------------ ------------ ------------
rorrE rewoP00
NOC_T: 500
------------ ------------ ------------
rorrE NOC-T00
ETILKCAB: 600
------------ ------------ ------------
rorrE thgilkcaBdetceted saw rorre on setacidni 000
PMETLNAP: 700
------------ ------------ ------------
rorrE pmeT lenaPdetceted saw rorre na setacidni 110
TORP_DUA: 800
------------ ------------ ------------
rotcetorP oiduA00
RRE_NAF: 900
------------ ------------ ------------
sledom eseht ni desU toN00
RRE_TTD:010
------------ ------------ ------------
00
:110
------------ ------------ ------------ ====
00
====
RECNALAB:310
------------ ------------ ------------
rorrE lenaP00
TDW_TTD: 101
------------ ------------ ------------
00
sremiT goD hctaW -TDW
TDW_MVT: 201
------------ ------------ ------------
sremiT goD hctaW(00
TDW_MEB: 301
------------ ------------ ------------
kcart ot desu era 00
,srossecorp orcim
).srorre drocer ot tonemit noitarepo dna tnuoc tooB0000-35000-97200
KCEHC FLES
Operating Hours
(max 65535)
Panel Hours
(max 65535)
Information Indicator displays time of last 3 events
(Not used in FIX2 models)
Boot count
(max 65535)
Resetting the Diagnostic Indicators
After completing the repair of the set, reset the Self Check screen to set all the display results to “00”.
1. TV must be in standby mode. (Power off).
2. Press
DISPLAY
Channel
5
Volume
-
TV POWER
.
3. Press Channel
8
, then press Channel
0
. To exit press
TV POWER
.
☛
