Sony RM-YD017 - 4-3. CHASSIS

86
KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
2-580-599-01 SCREW, +PSW M4X6
151 1-910-037-28 XA CONNECTORASSEMBLY (UB) 6P
(KDL-40XBR4/40XBR5 ONLY)
151 1-910-037-00 XA CONNECTOR ASSEMBLY (UB) 6P
(KDL-46XBR4/46XBR5 ONLY)
* 152 1-834-416-11 LEAD WIRE WITH CONNECTOR(LVDS)
153 1-834-261-11 CONNECTOR ASSEMBLY
(KDL-40XBR4/40XBR5 ONLY)
153 1-834-263-11 CONNECTOR ASSEMBLY
(KDL-46XBR4/46XBR5 ONLY)
154 1-910-036-91 CONNECTOR ASSEMBLY (DF3)
(KDL-46XBR4/46XBR5 ONLY)
* 155 1-910-039-50 FASTEN CONNECTOR ASSEMBLY (HW2)
156 1-834-140-11 LEAD WIRE WITH CONNECTOR(LVDS)
157 1-910-037-40 MO1929 CONNECTOR ASSEMBLY (BF) 20P
158 1-821-375-11 BOARD TO BOARD CONNECTOR 80P
159 1-821-376-11 BOARD TO BOARD CONNECTOR 50P
* 160 1-910-039-26 GH CONNECTOR ASSEMBLY (FAN) 6P
(KDL-40XBR4/40XBR5 ONLY)
* 160 1-910-039-27 GH CONNECTOR ASSEMBLY (FAN) 6P
(KDL-46XBR4/46XBR5 ONLY)
161 1-910-037-33 MO1929 CONNECTOR ASSEMBLY (H) 40P
(KDL-40XBR4/40XBR5 ONLY)
161 1-910-037-34 MO1929 CONNECTOR ASSEMBLY (H) 40P
(KDL-46XBR4/46XBR5 ONLY)
162 1-910-037-29 VH CONNECTOR ASSEMBLY (SP) 4P
(KDL-40XBR4/40XBR5 ONLY)
162 1-910-037-01 VH CONNECTOR ASSEMBLY (SP) 4P
(KDL-46XBR4/46XBR5 ONLY)
163 1-910-036-74 FFC CONNECTOR ASSEMBLY (TU) 49P
164 1-910-036-80 XA CONNECTOR ASSEMBLY (A)
(KDL-40XBR4/40XBR5 ONLY)
164 1-910-036-87 XA CONNECTORASSEMBLY (A)
(KDL-46XBR4/46XBR5 ONLY)
165 1-910-036-82 XA CONNECTORASSEMBLY (DF1) 9P
166 1-910-036-79 XA CONNECTORASSEMBLY (FB) 13P
167 1-910-036-86 XA CONNECTOR ASSEMBLY (BL) 5P
(KDL-40XBR4/40XBR5 ONLY)
167 1-910-036-92 XA CONNECTOR ASSEMBLY (BL) 7P
(KDL-46XBR4/46XBR5 ONLY)
168 1-910-036-81 VH CONNECTORASSEMBLY (DF1) 3P

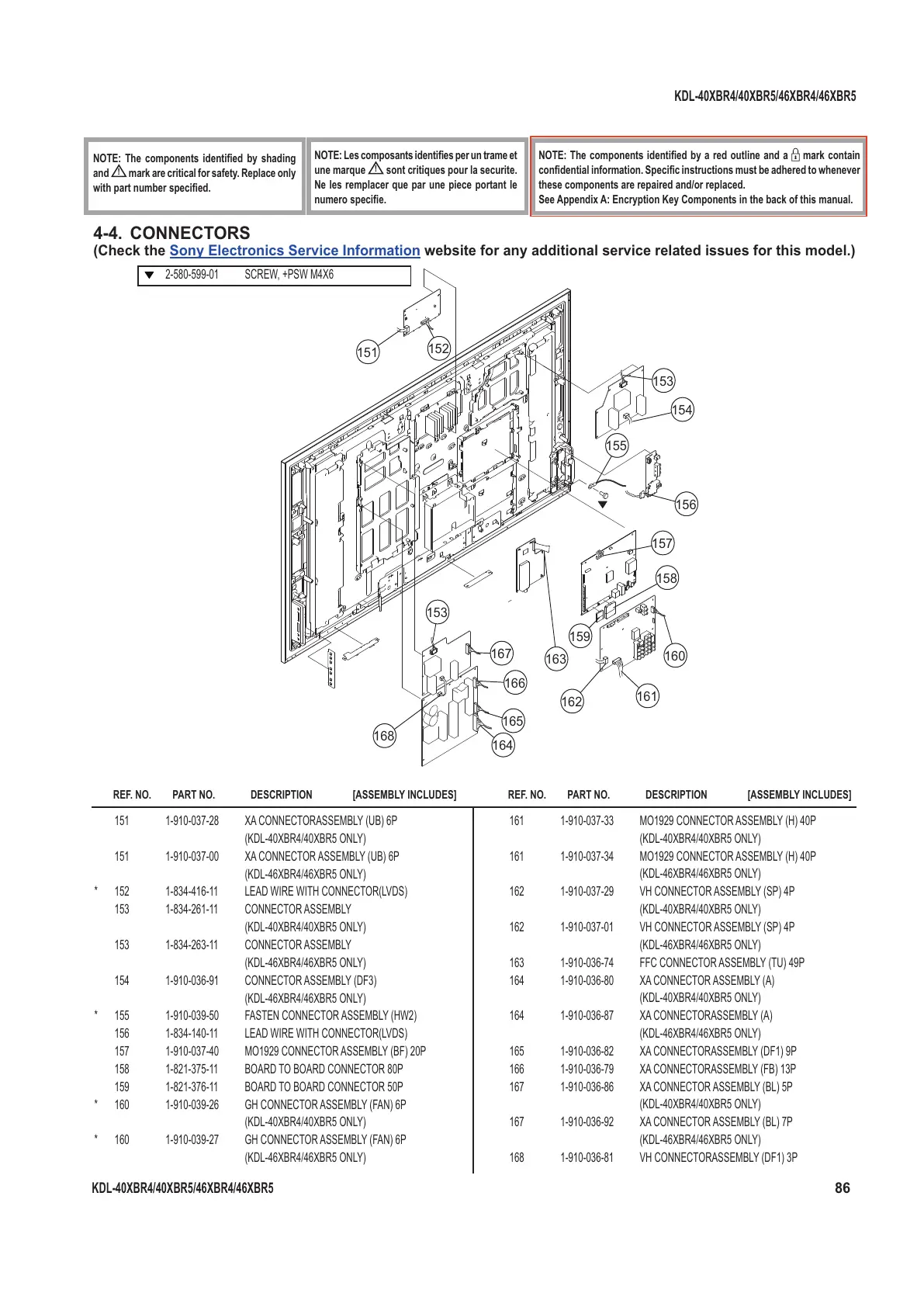

4-4. CONNECTORS
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
164
165
166
167
153
168
159
160
162
161
163
151
152
153
154
155
157
156
158
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
