Sony RM-YD017 - SECTION 1: DISASSEMBLY; 1-1. REAR COVER REMOVAL (KDL-40 XBR4;46 XBR4 ONLY); 1-2. REAR COVER REMOVAL (KDL-40 XBR5;46 XBR5 ONLY)

13
KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
1
Remove 2 screws from top of Arms, +PSW M5X8
2
Remove 4 screws from bottom of Arms, +PSW M5X8
3
Remove 4 screws from Stand Holders and Stand, +PSW M5X12
4
Remove 4 screws, +BVST 4X8
1
Remove 2 screws from Fan Brackets, +PSW 3X8
2
Remove 4 screws from DC Fans, +BVTP 3X12 TYPE2 IT-3
DC Fan
Fan Bracket (R)
Fan Bracket (L)
Fan Filter
1
2

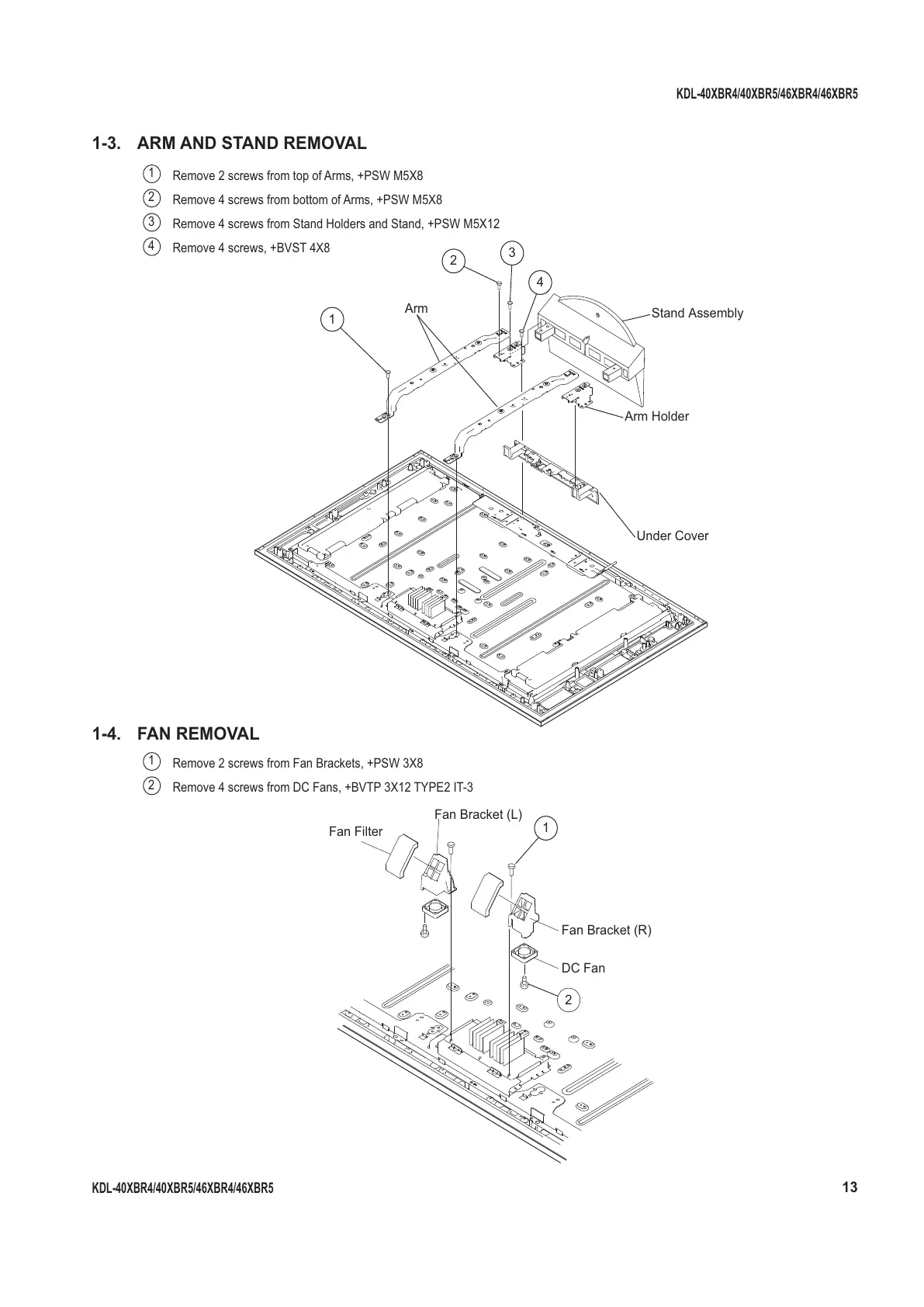

1-3. ARM AND STAND REMOVAL
1-4. FAN REMOVAL
1
2
3
4
Arm Holder
Stand Assembly
Under Cover
Arm
