NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
2-596-649-01 +KTT 3X10 (S TYPE)
2-580-654-01 SCREW, +PWTP2 4X16
7-682-948-01 SCREW +PSW 3X8
2-580-640-01 SCREW, +BVTP2 4X16
7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
2-580-606-01 SCREW, +PSW M5X8
2-580-630-01 SCREW, +BVST 4X8

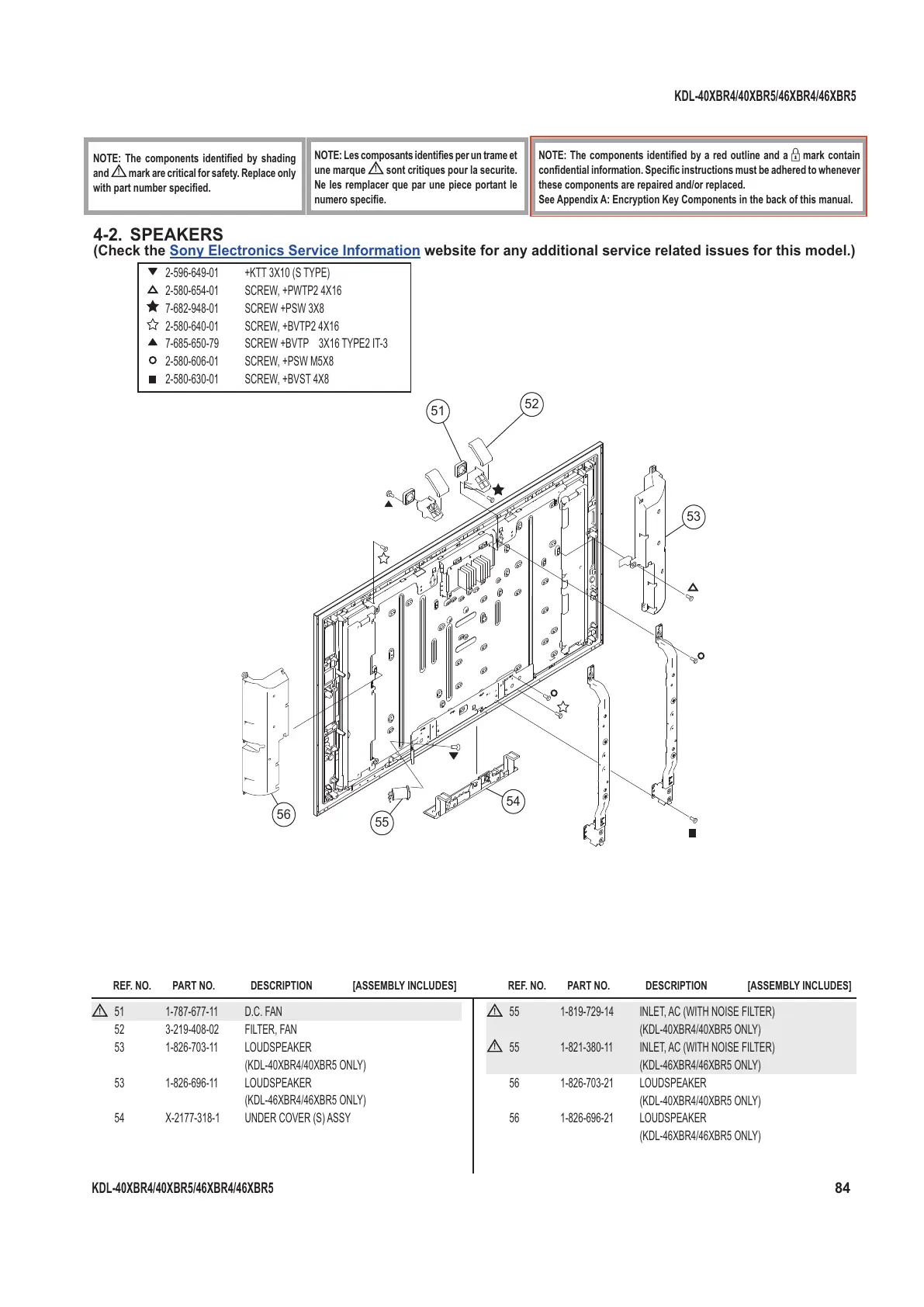

4-2. SPEAKERS
!
51 1-787-677-11 D.C. FAN
52 3-219-408-02 FILTER, FAN
53 1-826-703-11 LOUDSPEAKER
(KDL-40XBR4/40XBR5 ONLY)
53 1-826-696-11 LOUDSPEAKER
(KDL-46XBR4/46XBR5 ONLY)
54 X-2177-318-1 UNDER COVER (S) ASSY
!
55 1-819-729-14 INLET, AC (WITH NOISE FILTER)
(KDL-40XBR4/40XBR5 ONLY)
!
55 1-821-380-11 INLET, AC (WITH NOISE FILTER)
(KDL-46XBR4/46XBR5 ONLY)
56 1-826-703-21 LOUDSPEAKER
(KDL-40XBR4/40XBR5 ONLY)
56 1-826-696-21 LOUDSPEAKER
(KDL-46XBR4/46XBR5 ONLY)
