85
KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

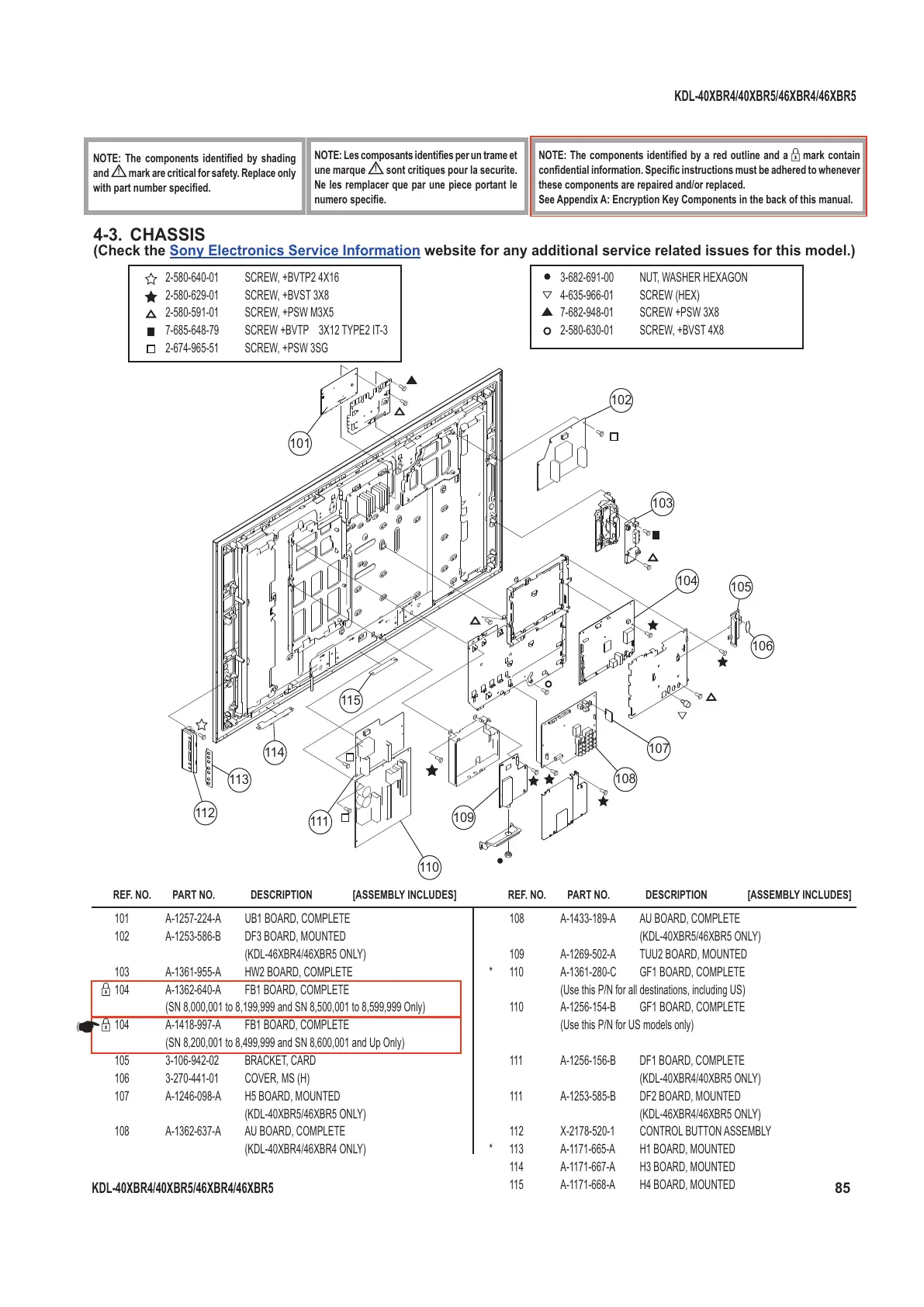

4-3. CHASSIS
101 A-1257-224-A UB1 BOARD, COMPLETE
102 A-1253-586-B DF3 BOARD, MOUNTED
(KDL-46XBR4/46XBR5 ONLY)
103 A-1361-955-A HW2 BOARD, COMPLETE
104 A-1362-640-A FB1 BOARD, COMPLETE
(SN 8,000,001 to 8,199,999 and SN 8,500,001 to 8,599,999 Only)
104 A-1418-997-A FB1 BOARD, COMPLETE
(SN 8,200,001 to 8,499,999 and SN 8,600,001 and Up Only)
105 3-106-942-02 BRACKET, CARD
106 3-270-441-01 COVER, MS (H)
107 A-1246-098-A H5 BOARD, MOUNTED
(KDL-40XBR5/46XBR5 ONLY)
108 A-1362-637-A AU BOARD, COMPLETE
(KDL-40XBR4/46XBR4 ONLY)
108 A-1433-189-A AU BOARD, COMPLETE
(KDL-40XBR5/46XBR5 ONLY)
109 A-1269-502-A TUU2 BOARD, MOUNTED
* 110 A-1361-280-C GF1 BOARD, COMPLETE
(Use this P/N for all destinations, including US)
110 A-1256-154-B GF1 BOARD, COMPLETE
(Use this P/N for US models only)
111 A-1256-156-B DF1 BOARD, COMPLETE
(KDL-40XBR4/40XBR5 ONLY)
111 A-1253-585-B DF2 BOARD, MOUNTED
(KDL-46XBR4/46XBR5 ONLY)
112 X-2178-520-1 CONTROL BUTTON ASSEMBLY
* 113 A-1171-665-A H1 BOARD, MOUNTED
114 A-1171-667-A H3 BOARD, MOUNTED
115 A-1171-668-A H4 BOARD, MOUNTED
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
2-580-640-01 SCREW, +BVTP2 4X16
2-580-629-01 SCREW, +BVST 3X8
2-580-591-01 SCREW, +PSW M3X5
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
2-674-965-51 SCREW, +PSW 3SG
3-682-691-00 NUT, WASHER HEXAGON
4-635-966-01 SCREW (HEX)
7-682-948-01 SCREW +PSW 3X8
2-580-630-01 SCREW, +BVST 4X8
101
102
103
104
105
106
108
107
109
110
111
115
114
112
113
☛
