KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5

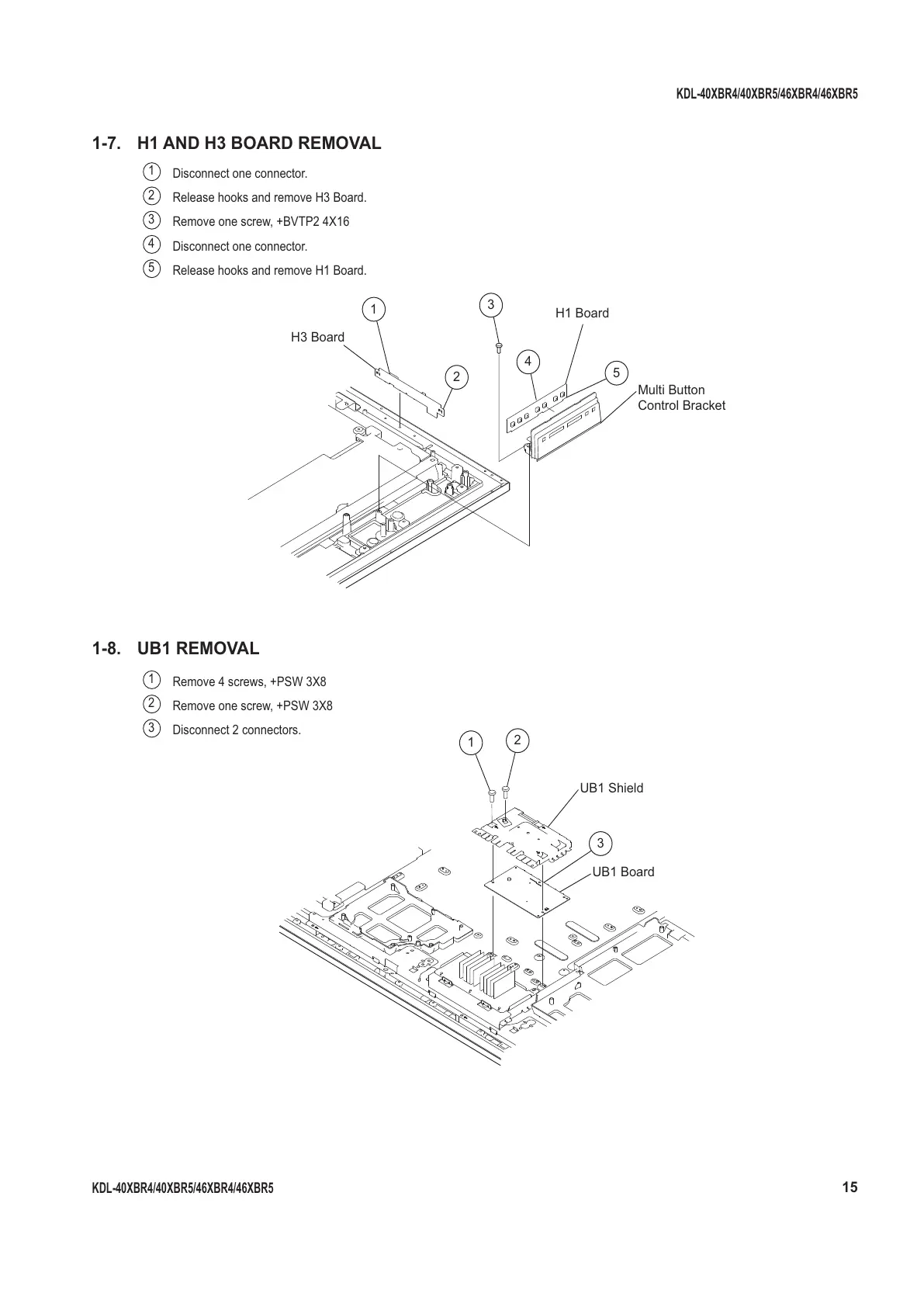

1-7. H1 AND H3 BOARD REMOVAL
1
Disconnect one connector.
2
Release hooks and remove H3 Board.
3
Remove one screw, +BVTP2 4X16
4
Disconnect one connector.
5
Release hooks and remove H1 Board.
1-8. UB1 REMOVAL
1
Remove 4 screws, +PSW 3X8
2
Remove one screw, +PSW 3X8
3
Disconnect 2 connectors.
3
1
2
UB1 Board
UB1 Shield
2
3
4
5
1
Multi Button
Control Bracket
H1 Board
H3 Board
