Sony RM-YD017 - 1-7. H1 AND H3 BOARD REMOVAL; 1-8. UB1 REMOVAL

16
KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5

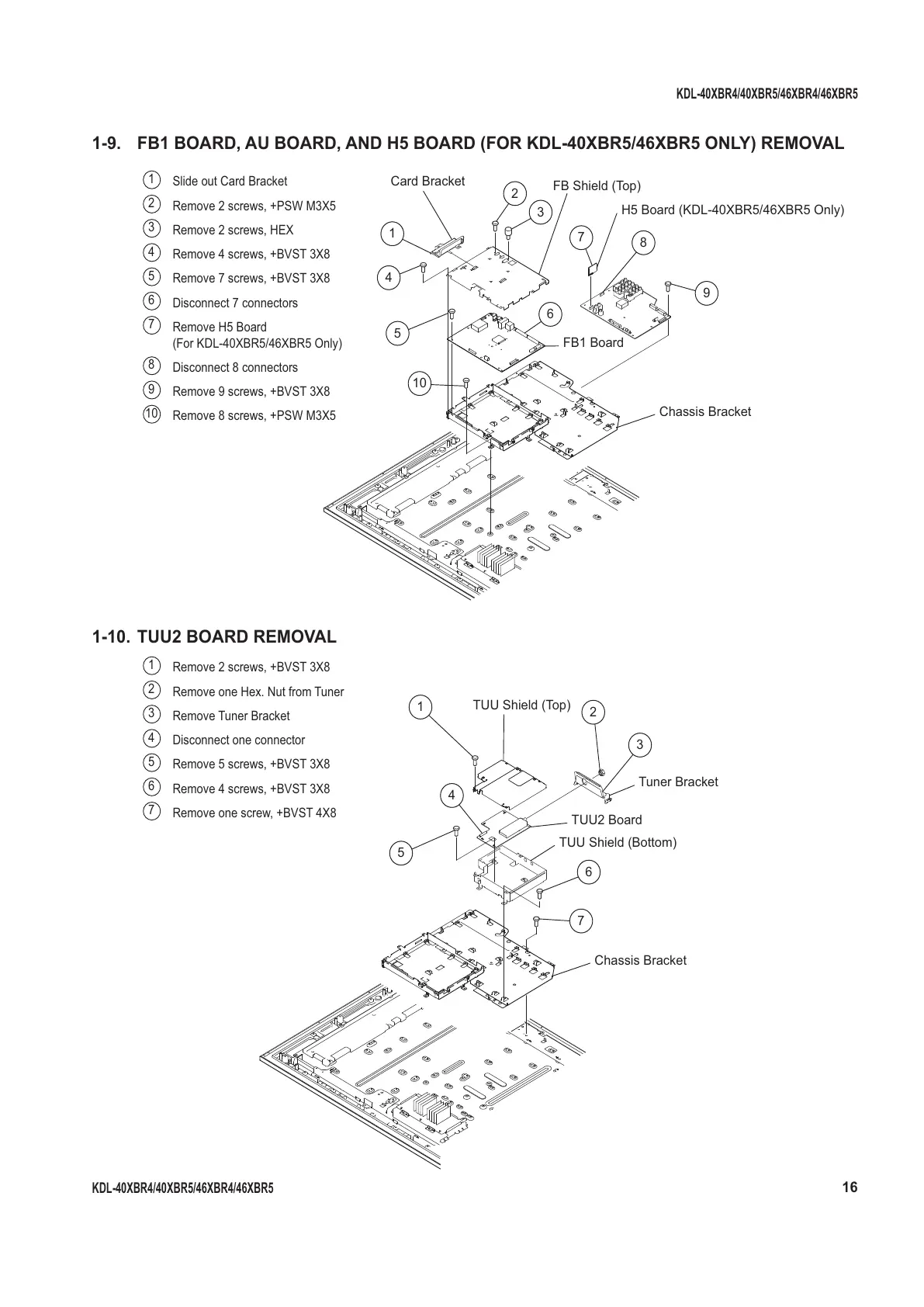

1-9. FB1 BOARD, AU BOARD, AND H5 BOARD (FOR KDL-40XBR5/46XBR5 ONLY) REMOVAL
1
Slide out Card Bracket
2
Remove 2 screws, +PSW M3X5
3
Remove 2 screws, HEX
4
Remove 4 screws, +BVST 3X8
5
Remove 7 screws, +BVST 3X8
6
Disconnect 7 connectors
7
Remove H5 Board
(For KDL-40XBR5/46XBR5 Only)
8
Disconnect 8 connectors
9
Remove 9 screws, +BVST 3X8
10
Remove 8 screws, +PSW M3X5
1-10. TUU2 BOARD REMOVAL
1
Remove 2 screws, +BVST 3X8
2
Remove one Hex. Nut from Tuner
3
Remove Tuner Bracket
4
Disconnect one connector
5
Remove 5 screws, +BVST 3X8
6
Remove 4 screws, +BVST 3X8
7
Remove one screw, +BVST 4X8
2
4
3
5
7
1
6
Chassis Bracket
TUU Shield (Top)
TUU Shield (Bottom)
TUU2 Board
Tuner Bracket
4
1
2
3
8
7
9
5
6
10
H5 Board (KDL-40XBR5/46XBR5 Only)
FB1 Board
FB Shield (Top)
Card Bracket
Chassis Bracket
