KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5

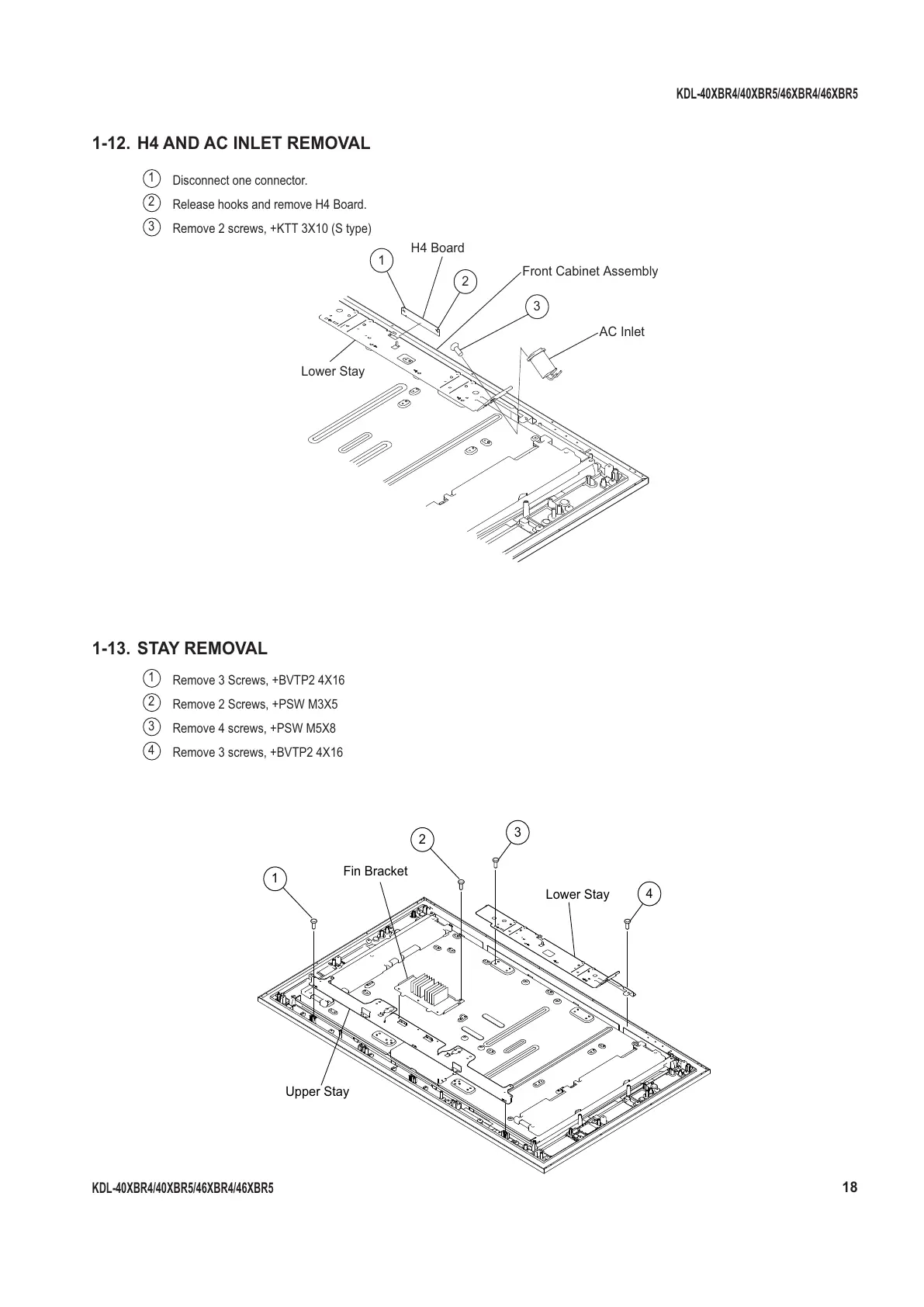

1-12. H4 AND AC INLET REMOVAL
1
Disconnect one connector.
2
Release hooks and remove H4 Board.
3
Remove 2 screws, +KTT 3X10 (S type)
2
3
4
1
Lower Stay
Upper Stay
Fin Bracket
2
3
1
Front Cabinet Assembly
AC Inlet
Lower Stay
H4 Board
1-13. STAY REMOVAL
1
Remove 3 Screws, +BVTP2 4X16
2
Remove 2 Screws, +PSW M3X5
3
Remove 4 screws, +PSW M5X8
4
Remove 3 screws, +BVTP2 4X16
