Sony RM-YD017 - H5 Board Schematic Diagram (KDL-40 XBR5;46 XBR5 Only)

KDL-40XBR4/40XBR5/46XBR4/46XBR5
72
KDL-40XBR4/40XBR5/46XBR4/46XBR5
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
A — B — C — D — E — F — G — H — I —

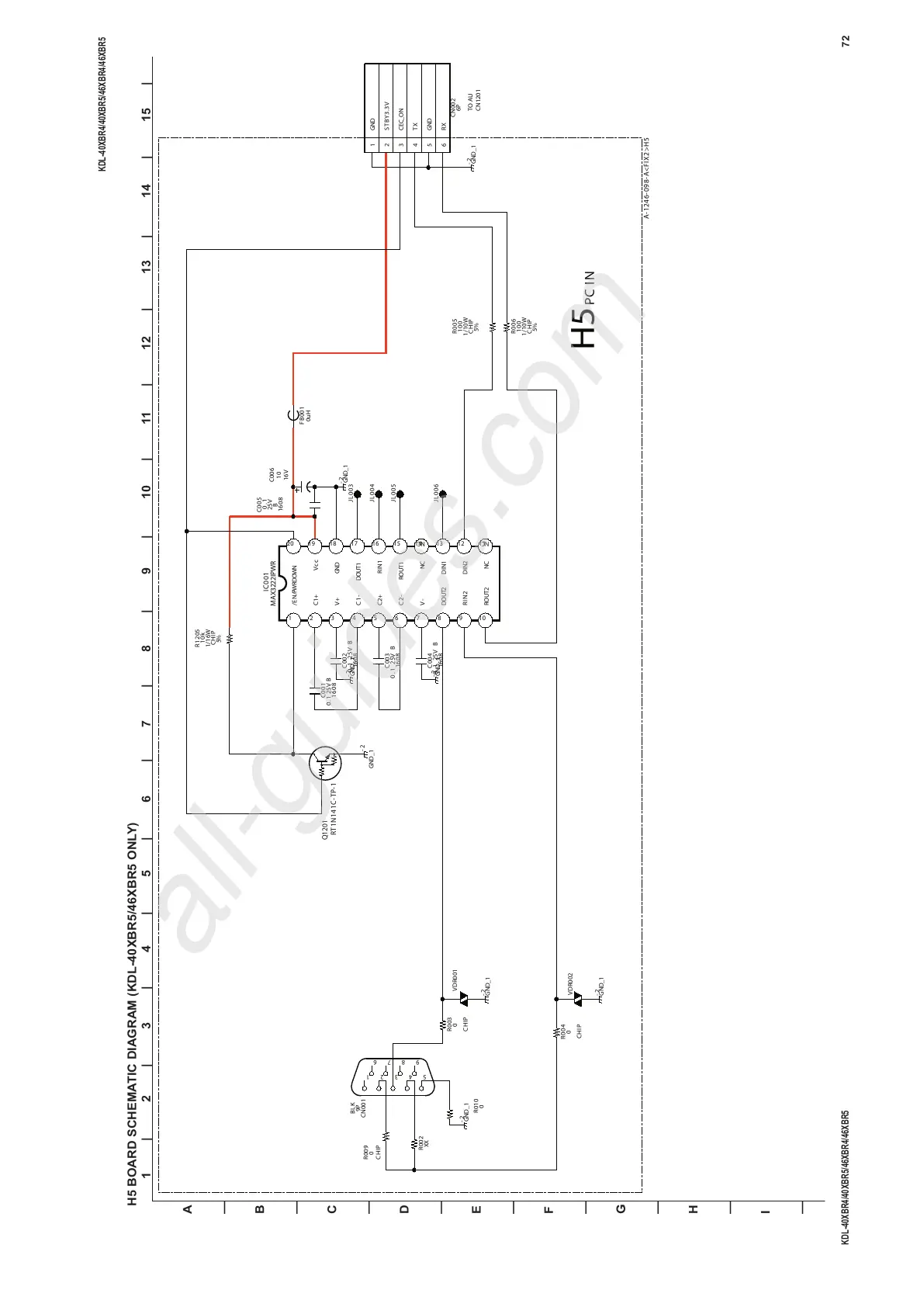

H5 BOARD SCHEMATIC DIAGRAM (KDL-40XBR5/46XBR5 ONLY)
20 19 18 17 16 15 14 13 12 11
10987654321
MAX3222IPWR
IC0 01
/EN C1+ V+ C1- C2+ C2- V- DOUT2 RIN2 ROUT2 NC
NC
DIN2 DIN1
NC
NC
ROUT1
RIN1
DOUT1
GND
Vcc
/PWRDOWN
1608
25V0 .1 B
C001
1608
25V0 . 1 B
C002
1608
25V0 . 1 B
C003
1608
25V0 . 1 B
C004
1608
25V
0 . 1
B
C005
- 2
GND_1
- 2
GND_1
- 2
GND_1
- 2
GND_1
- 2
GND_1
0uH
FB001
1/10W
CH IP
5%
100
R005
1/10W
CH IP
5%
100
R006
XX
R002
CH IP
0
R003
CH IP
0
R004
JL0 0 3 JL0 0 4 JL0 0 5 JL0 0 6
16V
10
C006
CH IP
0
R009
R010
0
1 2 3 4 5 6
6P
CN002
GND STBY3.3V CEC_ON TX GND RX
RT1N141C-TP-1
Q1201
- 2
GND_1
1/16W
CH IP
5%
10 k
R1205
BLK
9P
CN001
12345
6789
- 2
GND_1
- 2
GND_1
VDR001
VDR002
A-1246-098-A<FIX2> H5
TO AU CN1201
PC IN
H5
