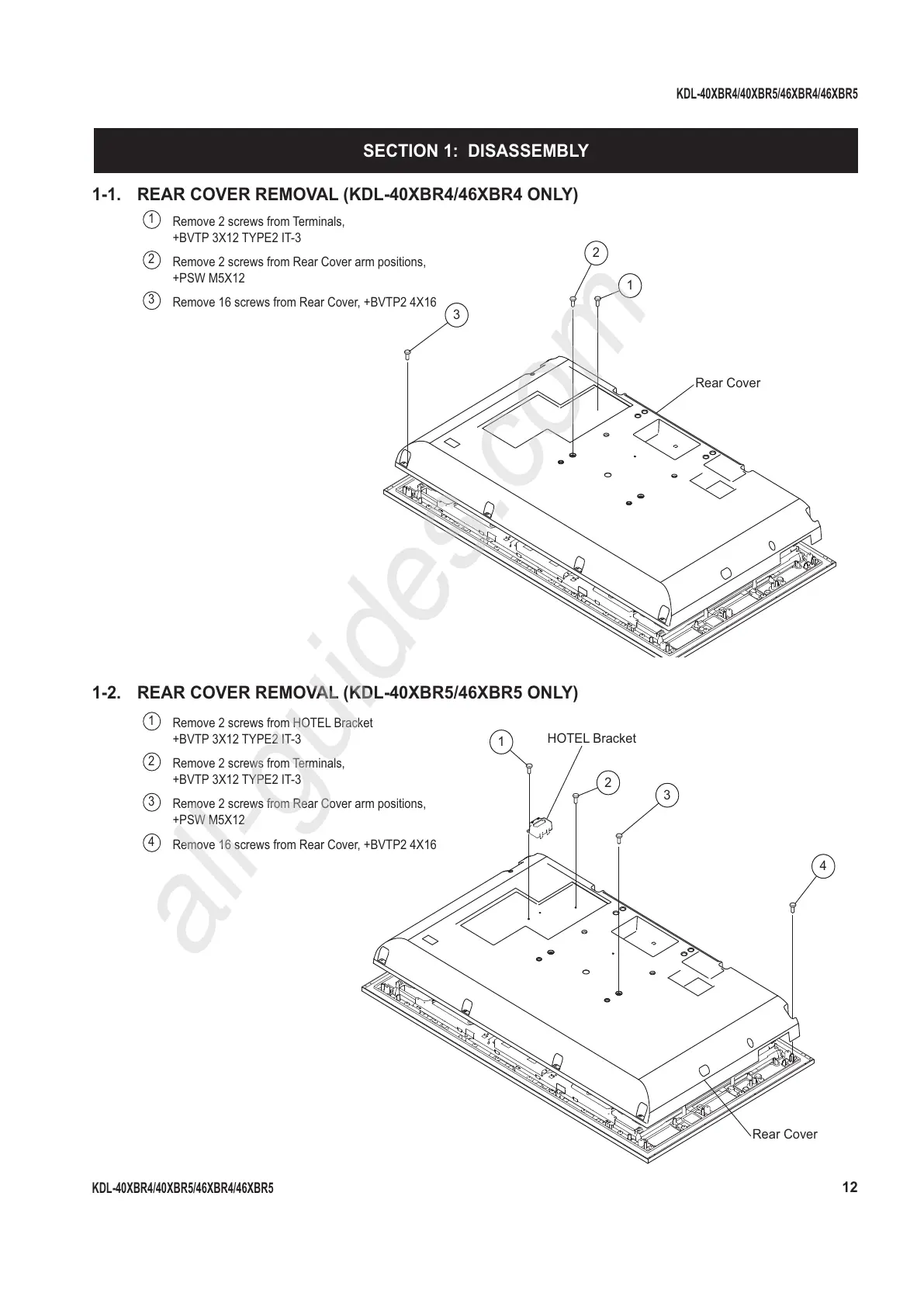

SECTION 1: DISASSEMBLY
1-1. REAR COVER REMOVAL (KDL-40XBR4/46XBR4 ONLY)
1
Remove 2 screws from HOTEL Bracket
+BVTP 3X12 TYPE2 IT-3
2
Remove 2 screws from Terminals,
+BVTP 3X12 TYPE2 IT-3
3
Remove 2 screws from Rear Cover arm positions,
+PSW M5X12
4
Remove 16 screws from Rear Cover, +BVTP2 4X16
1
Remove 2 screws from Terminals,
+BVTP 3X12 TYPE2 IT-3
2
Remove 2 screws from Rear Cover arm positions,
+PSW M5X12
3
Remove 16 screws from Rear Cover, +BVTP2 4X16
1-2. REAR COVER REMOVAL (KDL-40XBR5/46XBR5 ONLY)
4
3
2
1
Rear Cover
HOTEL Bracket
3
2
1
Rear Cover
