KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
88
*
Items marked with an asterisk are not stocked since they
are seldom required for routine service. Expect some delay
when ordering these components.
RESISTORS
• All resistors are in ohms
• F : nonfl ammable
• All variable and adjustable resistors
have characteristic curve B, unless
otherwise noted.
REF. NO. PART NO. DESCRIPTION VALUES
When ordering parts by reference
number, please include the board name.
REF. NO. PART NO. DESCRIPTION VALUES
AU
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et
une marque
!
sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifi e.
NOTE: The components identifi ed by a red outline and a mark
contain confi dential information. Specifi c instructions must be
adhered to whenever these components are repaired and/or
replaced.
See Appendix A: Encryption Key Components in the back of this
manual.

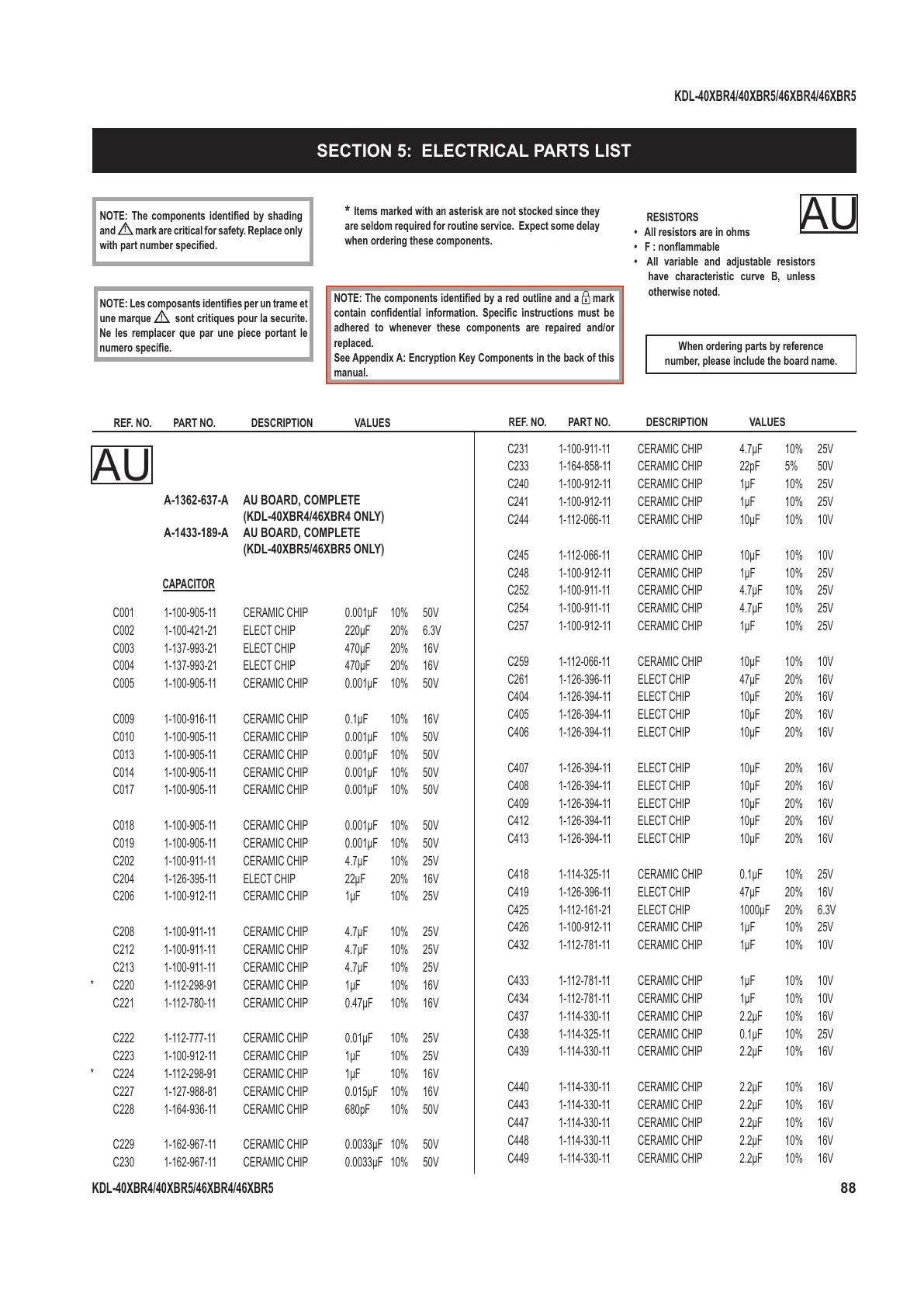

SECTION 5: ELECTRICAL PARTS LIST
AU
A-1362-637-A AU BOARD, COMPLETE
(KDL-40XBR4/46XBR4 ONLY)
A-1433-189-A AU BOARD, COMPLETE
(KDL-40XBR5/46XBR5 ONLY)
CAPACITOR
C001 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C002 1-100-421-21 ELECT CHIP 220µF 20% 6.3V
C003 1-137-993-21 ELECT CHIP 470µF 20% 16V
C004 1-137-993-21 ELECT CHIP 470µF 20% 16V
C005 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C009 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C010 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C013 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C014 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C017 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C018 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C019 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C202 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C204 1-126-395-11 ELECT CHIP 22µF 20% 16V
C206 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C208 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C212 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C213 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
* C220 1-112-298-91 CERAMIC CHIP 1µF 10% 16V
C221 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C222 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C223 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
* C224 1-112-298-91 CERAMIC CHIP 1µF 10% 16V
C227 1-127-988-81 CERAMIC CHIP 0.015µF 10% 16V
C228 1-164-936-11 CERAMIC CHIP 680pF 10% 50V
C229 1-162-967-11 CERAMIC CHIP 0.0033µF 10% 50V
C230 1-162-967-11 CERAMIC CHIP 0.0033µF 10% 50V
C231 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C233 1-164-858-11 CERAMIC CHIP 22pF 5% 50V
C240 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C241 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C244 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C245 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C248 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C252 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C254 1-100-911-11 CERAMIC CHIP 4.7µF 10% 25V
C257 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C259 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C261 1-126-396-11 ELECT CHIP 47µF 20% 16V
C404 1-126-394-11 ELECT CHIP 10µF 20% 16V
C405 1-126-394-11 ELECT CHIP 10µF 20% 16V
C406 1-126-394-11 ELECT CHIP 10µF 20% 16V
C407 1-126-394-11 ELECT CHIP 10µF 20% 16V
C408 1-126-394-11 ELECT CHIP 10µF 20% 16V
C409 1-126-394-11 ELECT CHIP 10µF 20% 16V
C412 1-126-394-11 ELECT CHIP 10µF 20% 16V
C413 1-126-394-11 ELECT CHIP 10µF 20% 16V
C418 1-114-325-11 CERAMIC CHIP 0.1µF 10% 25V
C419 1-126-396-11 ELECT CHIP 47µF 20% 16V
C425 1-112-161-21 ELECT CHIP 1000µF 20% 6.3V
C426 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C432 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C433 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C434 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C437 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C438 1-114-325-11 CERAMIC CHIP 0.1µF 10% 25V
C439 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C440 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C443 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C447 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C448 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C449 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
