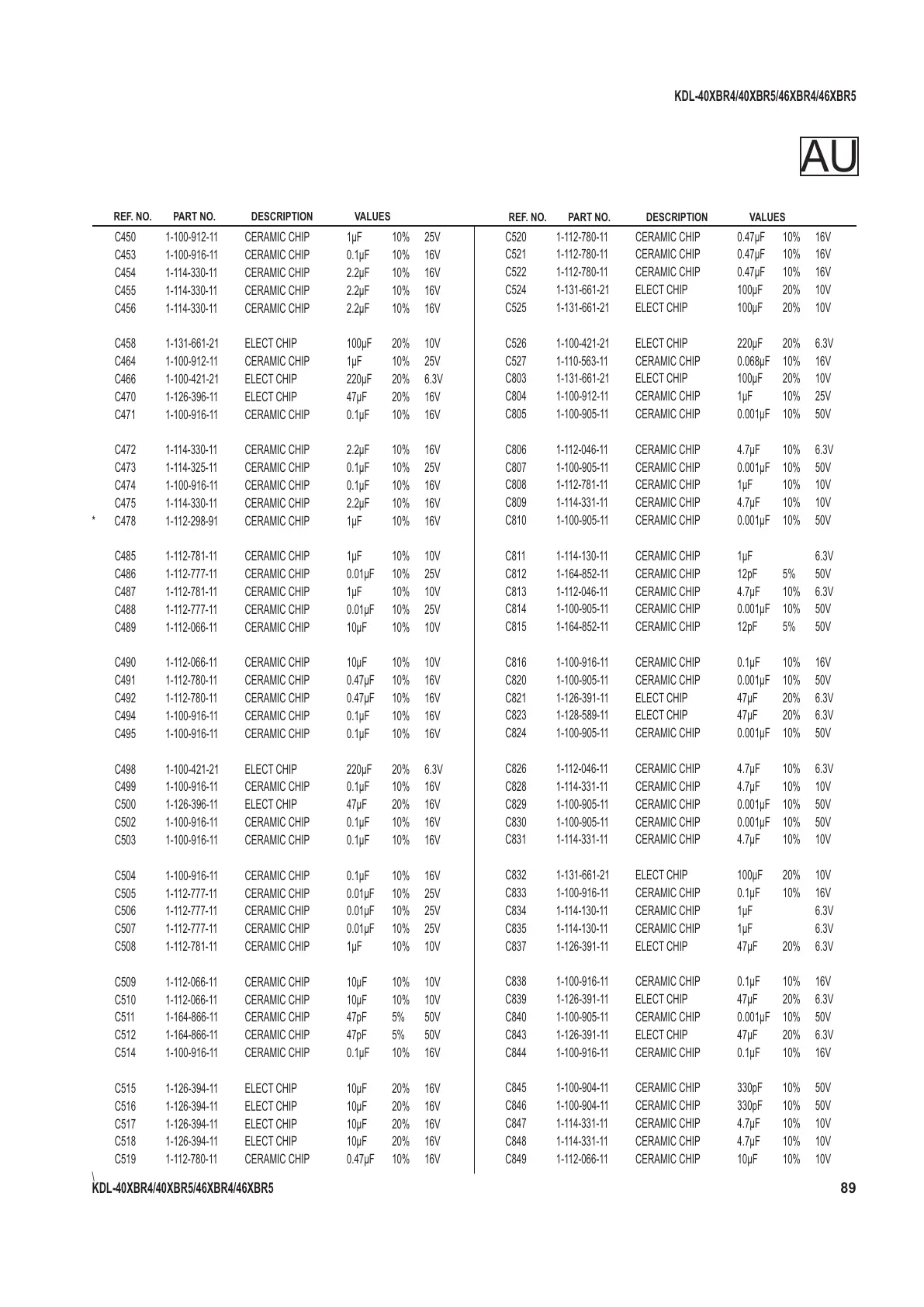

Sony RM-YD017 - SECTION 5: ELECTRICAL PARTS LIST; CAPACITOR

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
89
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
AU
C450 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C453 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C454 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C455 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C456 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C458 1-131-661-21 ELECT CHIP 100µF 20% 10V
C464 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C466 1-100-421-21 ELECT CHIP 220µF 20% 6.3V
C470 1-126-396-11 ELECT CHIP 47µF 20% 16V
C471 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C472 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
C473 1-114-325-11 CERAMIC CHIP 0.1µF 10% 25V
C474 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C475 1-114-330-11 CERAMIC CHIP 2.2µF 10% 16V
* C478 1-112-298-91 CERAMIC CHIP 1µF 10% 16V
C485 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C486 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C487 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C488 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C489 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C490 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C491 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C492 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C494 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C495 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C498 1-100-421-21 ELECT CHIP 220µF 20% 6.3V
C499 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C500 1-126-396-11 ELECT CHIP 47µF 20% 16V
C502 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C503 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C504 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C505 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C506 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C507 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C508 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C509 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C510 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
C511 1-164-866-11 CERAMIC CHIP 47pF 5% 50V
C512 1-164-866-11 CERAMIC CHIP 47pF 5% 50V
C514 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C515 1-126-394-11 ELECT CHIP 10µF 20% 16V
C516 1-126-394-11 ELECT CHIP 10µF 20% 16V
C517 1-126-394-11 ELECT CHIP 10µF 20% 16V
C518 1-126-394-11 ELECT CHIP 10µF 20% 16V
C519 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
\
C520 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C521 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C522 1-112-780-11 CERAMIC CHIP 0.47µF 10% 16V
C524 1-131-661-21 ELECT CHIP 100µF 20% 10V
C525 1-131-661-21 ELECT CHIP 100µF 20% 10V
C526 1-100-421-21 ELECT CHIP 220µF 20% 6.3V
C527 1-110-563-11 CERAMIC CHIP 0.068µF 10% 16V
C803 1-131-661-21 ELECT CHIP 100µF 20% 10V
C804 1-100-912-11 CERAMIC CHIP 1µF 10% 25V
C805 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C806 1-112-046-11 CERAMIC CHIP 4.7µF 10% 6.3V
C807 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C808 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C809 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C810 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C811 1-114-130-11 CERAMIC CHIP 1µF 6.3V
C812 1-164-852-11 CERAMIC CHIP 12pF 5% 50V
C813 1-112-046-11 CERAMIC CHIP 4.7µF 10% 6.3V
C814 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C815 1-164-852-11 CERAMIC CHIP 12pF 5% 50V
C816 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C820 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C821 1-126-391-11 ELECT CHIP 47µF 20% 6.3V
C823 1-128-589-11 ELECT CHIP 47µF 20% 6.3V
C824 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C826 1-112-046-11 CERAMIC CHIP 4.7µF 10% 6.3V
C828 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C829 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C830 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C831 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C832 1-131-661-21 ELECT CHIP 100µF 20% 10V
C833 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C834 1-114-130-11 CERAMIC CHIP 1µF 6.3V
C835 1-114-130-11 CERAMIC CHIP 1µF 6.3V
C837 1-126-391-11 ELECT CHIP 47µF 20% 6.3V
C838 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C839 1-126-391-11 ELECT CHIP 47µF 20% 6.3V
C840 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C843 1-126-391-11 ELECT CHIP 47µF 20% 6.3V
C844 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C845 1-100-904-11 CERAMIC CHIP 330pF 10% 50V
C846 1-100-904-11 CERAMIC CHIP 330pF 10% 50V
C847 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C848 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C849 1-112-066-11 CERAMIC CHIP 10µF 10% 10V
