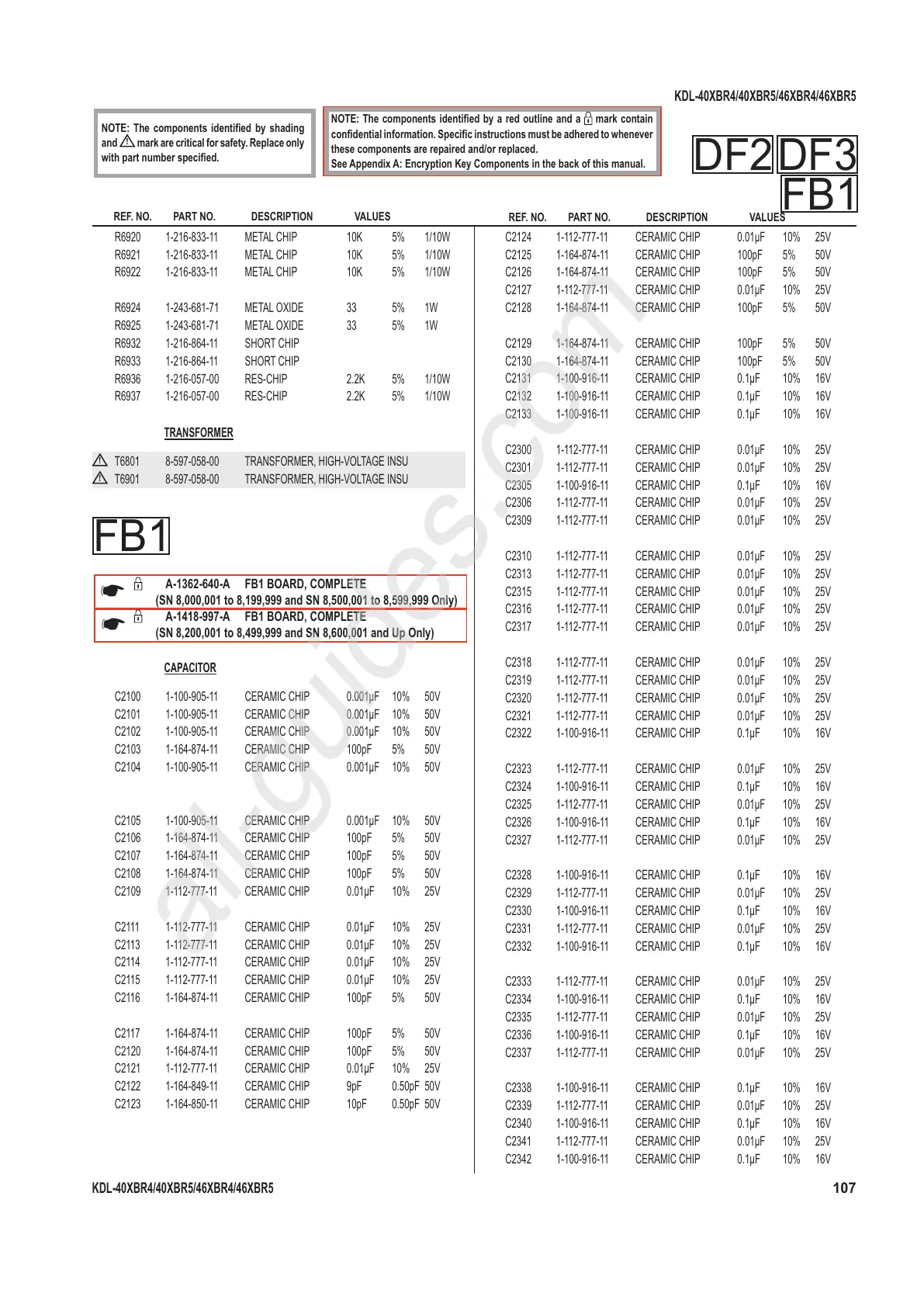

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
107
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by a red outline and a mark contain
confi dential information. Specifi c instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
R6920 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6921 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6922 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6924 1-243-681-71 METAL OXIDE 33 5% 1W
R6925 1-243-681-71 METAL OXIDE 33 5% 1W
R6932 1-216-864-11 SHORT CHIP
R6933 1-216-864-11 SHORT CHIP
R6936 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6937 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
TRANSFORMER
!
T6801 8-597-058-00 TRANSFORMER, HIGH-VOLTAGE INSU
!
T6901 8-597-058-00 TRANSFORMER, HIGH-VOLTAGE INSU
FB1
A-1362-640-A FB1 BOARD, COMPLETE
(SN 8,000,001 to 8,199,999 and SN 8,500,001 to 8,599,999 Only)
A-1418-997-A FB1 BOARD, COMPLETE
(SN 8,200,001 to 8,499,999 and SN 8,600,001 and Up Only)
CAPACITOR
C2100 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C2101 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C2102 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C2103 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2104 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C2105 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C2106 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2107 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2108 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2109 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2111 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2113 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2114 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2115 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2116 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2117 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2120 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2121 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2122 1-164-849-11 CERAMIC CHIP 9pF 0.50pF 50V
C2123 1-164-850-11 CERAMIC CHIP 10pF 0.50pF 50V
C2124 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2125 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2126 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2127 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2128 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2129 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2130 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C2131 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2132 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2133 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2300 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2301 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2305 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2306 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2309 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2310 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2313 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2315 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2316 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2317 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2318 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2319 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2320 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2321 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2322 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2323 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2324 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2325 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2326 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2327 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2328 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2329 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2330 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2331 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2332 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2333 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2334 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2335 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2336 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2337 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2338 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2339 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2340 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C2341 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C2342 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
DF2
DF3
FB1
☛
☛
