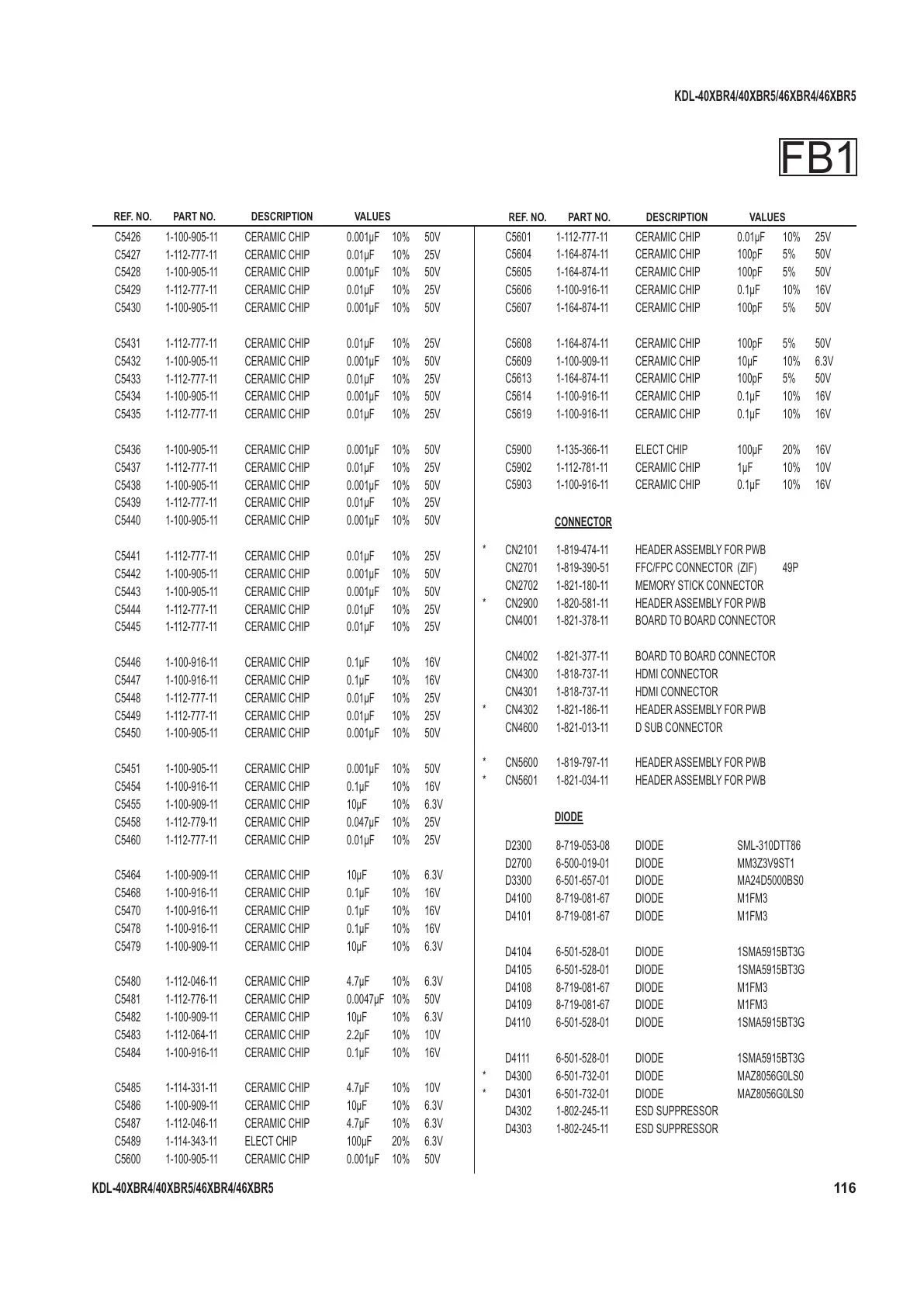

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
116
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
C5426 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5427 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5428 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5429 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5430 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5431 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5432 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5433 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5434 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5435 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5436 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5437 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5438 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5439 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5440 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5441 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5442 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5443 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5444 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5445 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5446 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5447 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5448 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5449 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5450 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5451 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5454 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5455 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5458 1-112-779-11 CERAMIC CHIP 0.047µF 10% 25V
C5460 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5464 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5468 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5470 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5478 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5479 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5480 1-112-046-11 CERAMIC CHIP 4.7µF 10% 6.3V
C5481 1-112-776-11 CERAMIC CHIP 0.0047µF 10% 50V
C5482 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5483 1-112-064-11 CERAMIC CHIP 2.2µF 10% 10V
C5484 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5485 1-114-331-11 CERAMIC CHIP 4.7µF 10% 10V
C5486 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5487 1-112-046-11 CERAMIC CHIP 4.7µF 10% 6.3V
C5489 1-114-343-11 ELECT CHIP 100µF 20% 6.3V
C5600 1-100-905-11 CERAMIC CHIP 0.001µF 10% 50V
C5601 1-112-777-11 CERAMIC CHIP 0.01µF 10% 25V
C5604 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C5605 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C5606 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5607 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C5608 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C5609 1-100-909-11 CERAMIC CHIP 10µF 10% 6.3V
C5613 1-164-874-11 CERAMIC CHIP 100pF 5% 50V
C5614 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5619 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
C5900 1-135-366-11 ELECT CHIP 100µF 20% 16V
C5902 1-112-781-11 CERAMIC CHIP 1µF 10% 10V
C5903 1-100-916-11 CERAMIC CHIP 0.1µF 10% 16V
CONNECTOR
* CN2101 1-819-474-11 HEADER ASSEMBLY FOR PWB
CN2701 1-819-390-51 FFC/FPC CONNECTOR (ZIF) 49P
CN2702 1-821-180-11 MEMORY STICK CONNECTOR
* CN2900 1-820-581-11 HEADER ASSEMBLY FOR PWB
CN4001 1-821-378-11 BOARD TO BOARD CONNECTOR
CN4002 1-821-377-11 BOARD TO BOARD CONNECTOR
CN4300 1-818-737-11 HDMI CONNECTOR
CN4301 1-818-737-11 HDMI CONNECTOR
* CN4302 1-821-186-11 HEADER ASSEMBLY FOR PWB
CN4600 1-821-013-11 D SUB CONNECTOR
* CN5600 1-819-797-11 HEADER ASSEMBLY FOR PWB
* CN5601 1-821-034-11 HEADER ASSEMBLY FOR PWB
DIODE
D2300 8-719-053-08 DIODE SML-310DTT86
D2700 6-500-019-01 DIODE MM3Z3V9ST1
D3300 6-501-657-01 DIODE MA24D5000BS0
D4100 8-719-081-67 DIODE M1FM3
D4101 8-719-081-67 DIODE M1FM3
D4104 6-501-528-01 DIODE 1SMA5915BT3G
D4105 6-501-528-01 DIODE 1SMA5915BT3G
D4108 8-719-081-67 DIODE M1FM3
D4109 8-719-081-67 DIODE M1FM3
D4110 6-501-528-01 DIODE 1SMA5915BT3G
D4111 6-501-528-01 DIODE 1SMA5915BT3G
* D4300 6-501-732-01 DIODE MAZ8056G0LS0
* D4301 6-501-732-01 DIODE MAZ8056G0LS0
D4302 1-802-245-11 ESD SUPPRESSOR
D4303 1-802-245-11 ESD SUPPRESSOR
FB1
