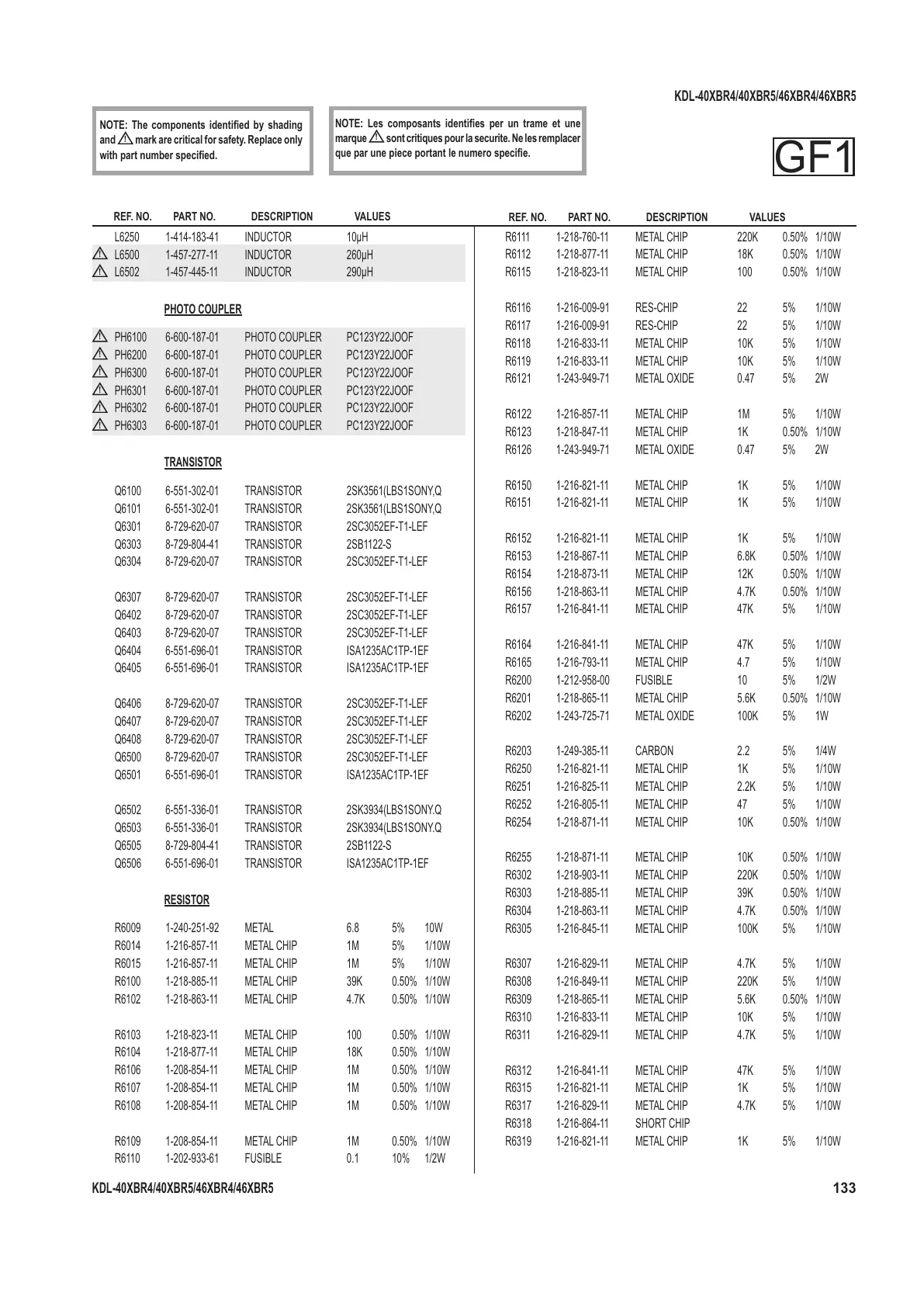

KDL-40XBR4/40XBR5/46XBR4/46XBR5
KDL-40XBR4/40XBR5/46XBR4/46XBR5
133
REF. NO. PART NO. DESCRIPTION VALUES
REF. NO. PART NO. DESCRIPTION VALUES
NOTE: The components identifi ed by shading
and
!
mark are critical for safety. Replace only
with part number specifi ed.
NOTE: Les composants identifi es per un trame et une
marque
!
sont critiques pour la securite. Ne les remplacer
que par une piece portant le numero specifi e.
L6250 1-414-183-41 INDUCTOR 10µH
!
L6500 1-457-277-11 INDUCTOR 260µH
!
L6502 1-457-445-11 INDUCTOR 290µH
PHOTO COUPLER
!
PH6100 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
!
PH6200 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
!
PH6300 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
!
PH6301 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
!
PH6302 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
!
PH6303 6-600-187-01 PHOTO COUPLER PC123Y22JOOF
TRANSISTOR
Q6100 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q
Q6101 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q
Q6301 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6303 8-729-804-41 TRANSISTOR 2SB1122-S
Q6304 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6307 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6402 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6403 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6404 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6405 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6406 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6407 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6408 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6500 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q6501 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
Q6502 6-551-336-01 TRANSISTOR 2SK3934(LBS1SONY.Q
Q6503 6-551-336-01 TRANSISTOR 2SK3934(LBS1SONY.Q
Q6505 8-729-804-41 TRANSISTOR 2SB1122-S
Q6506 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF
RESISTOR
R6009 1-240-251-92 METAL 6.8 5% 10W
R6014 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6015 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6100 1-218-885-11 METAL CHIP 39K 0.50% 1/10W
R6102 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6103 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R6104 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6106 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6107 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6108 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6109 1-208-854-11 METAL CHIP 1M 0.50% 1/10W
R6110 1-202-933-61 FUSIBLE 0.1 10% 1/2W
R6111 1-218-760-11 METAL CHIP 220K 0.50% 1/10W
R6112 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6115 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R6116 1-216-009-91 RES-CHIP 22 5% 1/10W
R6117 1-216-009-91 RES-CHIP 22 5% 1/10W
R6118 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6119 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6121 1-243-949-71 METAL OXIDE 0.47 5% 2W
R6122 1-216-857-11 METAL CHIP 1M 5% 1/10W
R6123 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R6126 1-243-949-71 METAL OXIDE 0.47 5% 2W
R6150 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6151 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6152 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6153 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R6154 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R6156 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6157 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6164 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6165 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R6200 1-212-958-00 FUSIBLE 10 5% 1/2W
R6201 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6202 1-243-725-71 METAL OXIDE 100K 5% 1W
R6203 1-249-385-11 CARBON 2.2 5% 1/4W
R6250 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6251 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6252 1-216-805-11 METAL CHIP 47 5% 1/10W
R6254 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6255 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6302 1-218-903-11 METAL CHIP 220K 0.50% 1/10W
R6303 1-218-885-11 METAL CHIP 39K 0.50% 1/10W
R6304 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6305 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6307 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6308 1-216-849-11 METAL CHIP 220K 5% 1/10W
R6309 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6310 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6311 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6312 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6315 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6317 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6318 1-216-864-11 SHORT CHIP
R6319 1-216-821-11 METAL CHIP 1K 5% 1/10W
GF1
